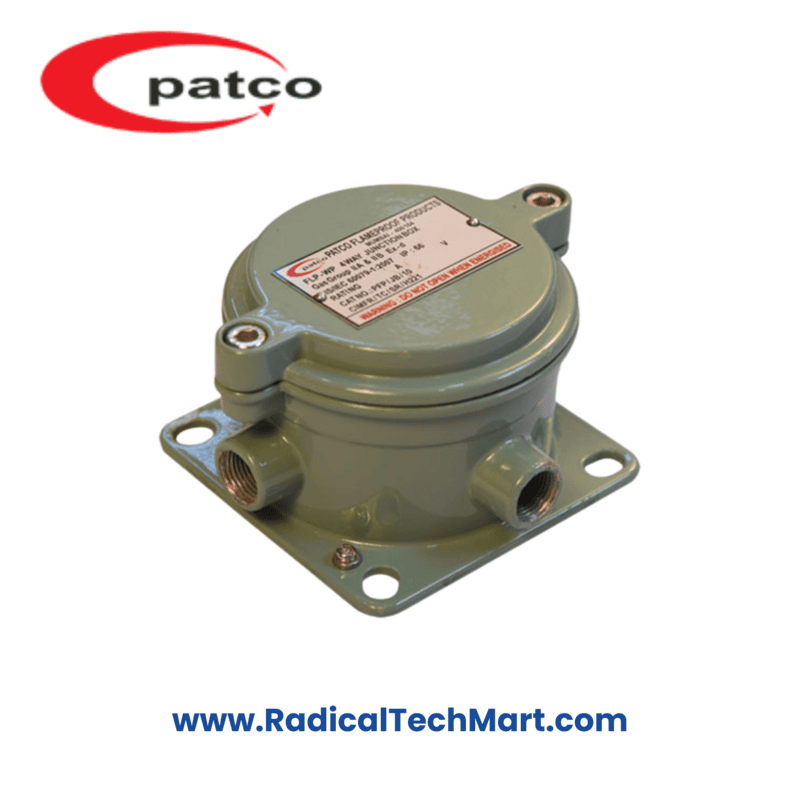

Patco FLP/WP 2 Way - 4 Way Junction Box – 100 mm Dia
Patco FLP/WP Junction Box – 2/4 Way, 100mm Dia, IP65, Gas Group I/IIA/IIB
Flameproof/weatherproof 2-way or 4-way junction box, 100 mm diameter, certified for Zone 1 & Zone 2, suitable for hazardous industrial installations.
Customize
Share :
The Patco FLP/WP Junction Box (100 mm Dia) is a certified flameproof and weatherproof enclosure designed for hazardous industrial environments. Suitable for Gas Group I, IIA, and IIB applications, it supports 2-way or 4-way cable entries and meets IS/IEC safety requirements.
Key Features
Certified for Zone 1 & Zone 2 hazardous areas
Supports Gas Group I, IIA, IIB environments
IP65 ingress protection
High-pressure LM6 aluminium alloy construction
Epoxy polyester powder-coated finish
Stainless steel hardware
Available in 2-way or 4-way cable entry
32A clip-on type terminal rail included
Internal & external earthing provisions
Technical Specifications
| Parameter | Specification |
|---|---|
| Catalogue No. | PFP/JB/10 |
| Type of Ex-Protection | IS:2148-2004 / IEC-60079-1:2007 |
| Zone Classification | Zone 1 & Zone 2 |
| Gas Group | I, IIA, IIB |
| IP Protection | IP65 (IS/IEC 60529:2001) |
| Material | High-Pressure Die-Cast Aluminium Alloy LM6 |
| Terminal | 32A, 4-way clip-on type rail mounted |
| Paint | Epoxy Polyester Powder Coating |
| Earthing | 1 internal + 2 external |
| Cable Entry | 02 or 04 × M20 (3/4” ET) |
| Hardware | Stainless Steel |
| Dimensions | Dia 100mm (Outer approx. 115–135mm from drawing) |
Applications
Hazardous industrial installations
Petrochemical plants
Gas handling systems
Pharmaceutical production zones
Chemical processing units
Refineries & storage terminals
Outdoor harsh-environment wiring
What’s in the Box?
1 × Patco FLP/WP Junction Box (100mm Dia)
32A Clip-on Terminal Rail
Stainless Steel Mounting Hardware
Manufacturer’s Label & Compliance Details
FAQ
1. Is this junction box suitable for explosive gas environments?
Yes, it is certified for gas groups I, IIA, and IIB zones.
2. How many cable entry options are available?
It is available in 2-way or 4-way configurations (M20 entry).
3. Can this enclosure be used outdoors?
Yes, it has IP65 protection suitable for dust and water exposure.
4. Does it come with terminals?
Yes, a 32A rail-mounted terminal is included.
5. What is the material of construction?
High-pressure LM6 aluminum alloy with epoxy coating.
6. Is earthing provided?
Yes, 1 internal and 2 external earthing points are provided.
