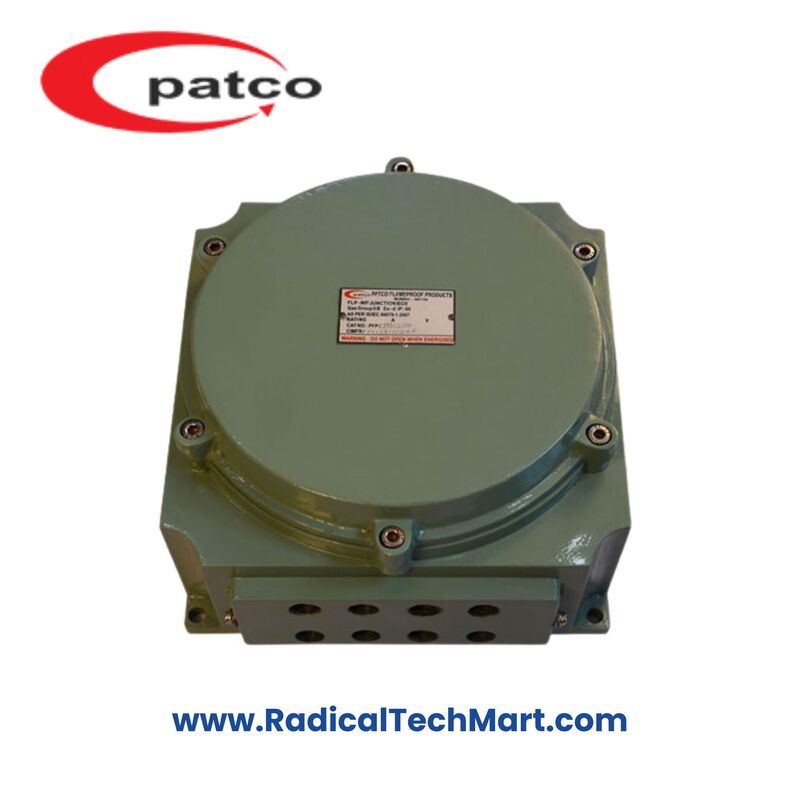

Patco FLP/WP Junction Box – 220 mm Dia

Product Summary:
The Patco FLP/WP Junction Box (220 mm Dia) is a flameproof and weatherproof enclosure engineered for high-risk industrial environments. It complies with IS / IEC-60079-1:2007 standards and is suitable for use in Zone 1 & 2 areas. With a durable LM6 aluminum body, it offers customizable terminal and cable entry configurations.

Key Features:

• Catalogue No: PFP/JB/220

• Ex-Protection: IS / IEC-60079-1:2007

• Zone Classification: Zone 1 & Zone 2

• Gas Group: I, IIA, IIB

• Ingress Protection: IP-65 (IS/IEC60529-2001)

• Material: Die Cast Aluminum Alloy LM6

• Terminal Type: As per client specifications

• Paint Finish: Epoxy polyester powder-coated

• Earthing: 1 internal & 2 external earthing points

• Cable Entry: As per client requirement

• Hardware: Stainless steel fasteners

Applications:

• Chemical and Petrochemical Plants

• Oil & Gas Refineries

• Fertilizer & Paint Industries

• Hazardous Process Areas

• Electrical Cable Management in Ex Zones

Product Benefits:

• Certified for use in explosive atmospheres

• Weatherproof with IP65 protection rating

• Highly durable and corrosion-resistant construction

• Customizable to fit specific installation needs

• Easy to maintain and install

FAQs:

Q1. Is this junction box suitable for Zone 2 applications?
Yes, it is certified for both Zone 1 and Zone 2 hazardous areas.

Q2. Can the number of terminals and cable entries be customized?
Absolutely. The design supports client-specific requirements for terminals and cable entries.

Q3. What is the body material used for this enclosure?
It is made from high-strength Die Cast Aluminum Alloy LM6.
