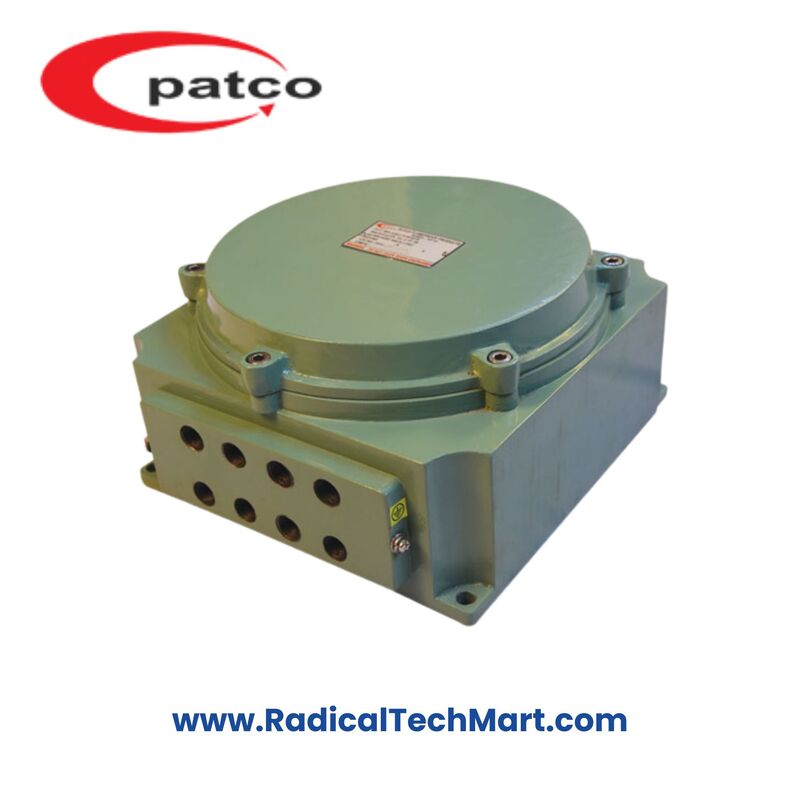

Patco FLP/WP Junction Box – 250 mm Dia

Product Summary:
The Patco FLP/WP Junction Box (250 mm Dia) is a robust and explosion-proof enclosure crafted from die-cast aluminum alloy LM6. Designed for use in Zone 1 and Zone 2 hazardous areas, it supports customized terminal and cable entry options, making it perfect for secure electrical wiring in gas group I, IIA, and IIB classified environments.

Key Features:

• Catalogue No: PFP/JB/250

• Ex-Protection Standard: IS 2148-2004 / IEC-60079-1:2007

• Zone Classification: Zone 1 & Zone 2

• Gas Group: I, IIA, IIB

• Ingress Protection: IP-65 (IS/IEC60529-2001)

• Body Material: Die Cast Aluminum Alloy LM6

• Terminal Arrangement: As per client requirement

• Cable Entries: Customizable based on requirement

• Paint: Epoxy polyester powder-coated finish

• Earthing: 1 Internal & 2 External earthing points

• Hardware: Corrosion-resistant stainless steel

Applications:

• Hazardous area cable junctioning

• Oil & Gas installations

• Chemical & Petrochemical plants

• Fertilizer & Paint industries

• Refineries and processing units

Product Benefits:

• Certified for explosive gas environments

• Durable LM6 aluminum body for rugged industrial use

• Custom terminal and cable entry options

• Excellent corrosion resistance

• Reliable IP65-rated weatherproof sealing

FAQs:

Q1. Can I customize the terminal layout inside the junction box?
Yes, the terminal arrangement can be configured based on your project or wiring requirements.

Q2. What is the ingress protection rating of this enclosure?
It is IP65-rated, offering strong resistance to dust and water.

Q3. Is this suitable for use in Zone 1 hazardous locations?
Absolutely. It complies with IS/IEC standards for Zone 1 and Zone 2 environments.
