R-Tek Digital Vernier Calipers
Customize
Share :
A. Product Overview
R-Tek Digital Vernier Calipers provide quick and convenient measurement of component dimensions using a digital display instead of requiring the operator to manually interpret a conventional vernier scale.
The R-Tek RK-508 is a plastic body digital vernier caliper with a 0 to 150 mm measuring range and stated resolution of 0.1 mm or 0.01 inch.

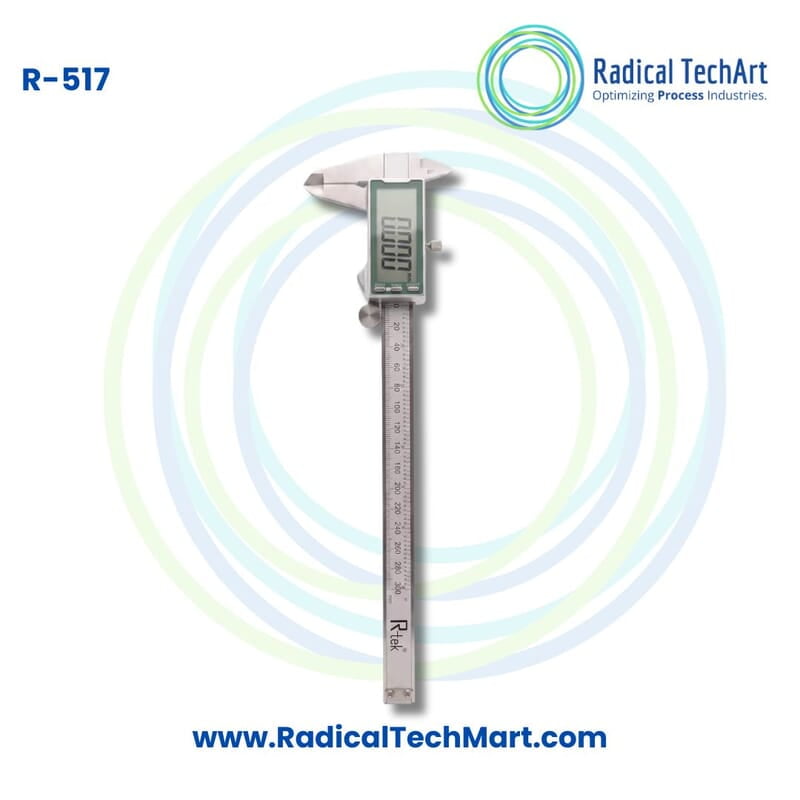

The R-Tek RK-517 is a professional grade digital vernier caliper featuring a full stainless steel body, enhanced large LCD display, 0 to 300 mm measuring range, 0.01 mm or 0.0005 inch resolution, zero function, data output and multiple measuring functions. It operates using a 1.5 V LR44 silver oxide battery.
These options allow users to select a digital caliper according to measuring range, construction and required measurement resolution.
B. Working Principle
A digital vernier caliper measures displacement as its sliding jaw moves along the main beam. The measuring jaws are positioned against or inside the component being inspected, and the instrument converts the jaw position into a numerical measurement displayed on the LCD.
Depending on the measurement task, the caliper can be positioned around a component or within an opening to determine dimensions. R-Tek digital models provide electronic zero setting, allowing the reading to be reset at a selected position for comparative measurements. Models such as the RK-517 also provide multiple measuring functions and data output capability.
The RK-517 specifies a repeatability of 0.01 mm and a maximum measuring speed of 1.5 metres per second, allowing measurements to be taken quickly during inspection work.
C. Why R-Tek Digital Vernier Calipers Are Used
Digital vernier calipers are used when technicians need faster and easier dimensional readings than those provided by manually interpreted measuring scales.
R-Tek Digital Vernier Calipers can be useful for:
- Checking component dimensions during manufacturing.
- Inspecting machined and fabricated parts.
- Measuring components during maintenance and repair.
- Performing dimensional quality control inspections.
- Checking engineering samples and prototypes.
- Taking measurements in workshops and laboratories.
- Comparing dimensions using the digital zero setting function.
- Measuring components where clear digital indication improves operator convenience.
The RK-517 is particularly suitable for applications requiring a wider measurement range, stainless steel construction and finer 0.01 mm resolution.
D. Suitable Buyers
R-Tek Digital Vernier Calipers are suitable for:
- Mechanical engineers
- Production engineers
- Quality control departments
- Machine shops
- Tool rooms
- Fabrication workshops
- Automotive service and manufacturing facilities
- Industrial maintenance teams
- Engineering laboratories
- Technical institutes and training centres
- Inspection departments
- Industrial component manufacturers
- Maintenance technicians
- Research and development departments
Users can select a model according to the required measuring range and construction. For example, the RK-508 covers 0 to 150 mm, while the full stainless steel RK-517 covers measurements up to 300 mm.
Frequently Asked Questions
1. What is an R-Tek Digital Vernier Caliper?
It is an electronic dimensional measuring instrument that provides measurements through a digital display. R-Tek offers digital vernier calipers in different measuring ranges and body constructions.
2. What is the measuring range of the R-Tek RK-508?
The RK-508 has a measuring range of 0 to 150 mm.
3. What is the measuring range of the R-Tek RK-517?
The RK-517 has a measuring range of 0 to 300 mm.
4. What is the resolution of the RK-517 Digital Vernier Caliper?
The RK-517 provides a resolution of 0.01 mm or 0.0005 inch.
5. Is the R-Tek RK-517 made from stainless steel?
Yes. The RK-517 is specified with a full stainless steel body.
6. Does the R-Tek Digital Vernier Caliper have an LCD display?
Yes. The RK-517 features an enhanced large LCD screen for clear measurement indication.
7. Does the R-Tek RK-517 have a zero setting function?
Yes. The RK-517 includes a smart zero function that can assist with comparative dimensional measurements.
8. What battery is used in the R-Tek RK-517?
The RK-517 operates using a 1.5 V LR44 silver oxide battery.
9. Can R-Tek Digital Vernier Calipers be used for industrial quality inspection?
Yes. Their digital measurement format, precision measurement capability and available stainless steel construction make them suitable for engineering, manufacturing and quality inspection applications.
10. Which R-Tek Digital Vernier Caliper should I select?
The selection depends mainly on the required measuring range, body construction and resolution. The RK-508 is suitable for measurements up to 150 mm, while the RK-517 provides a wider 300 mm range, full stainless steel construction and 0.01 mm resolution.
