A. Product Overview
R-Tek Micrometers are designed for industrial users who require precise measurement of small component dimensions.

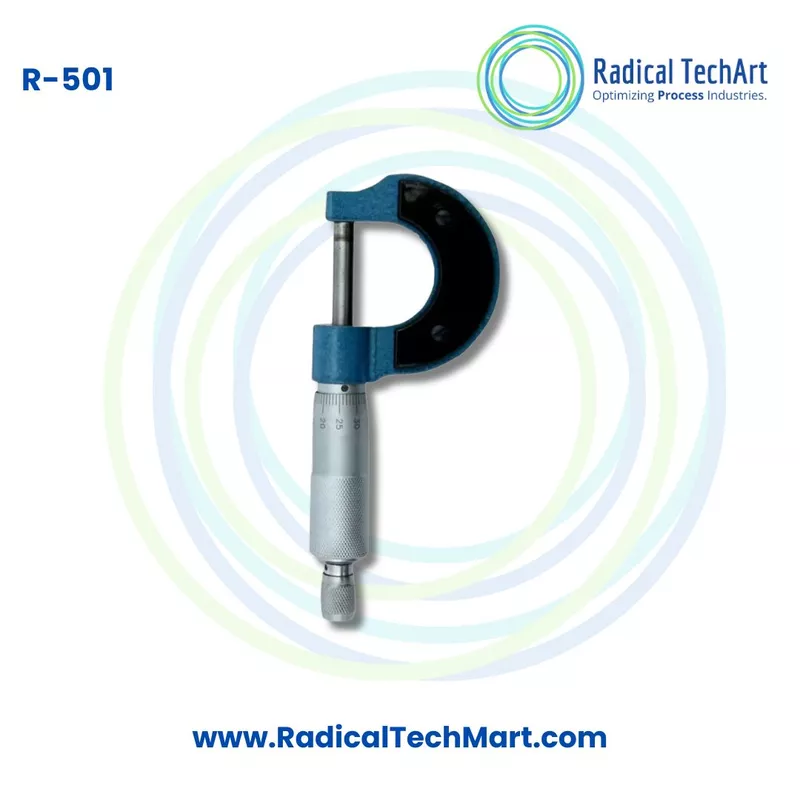

The R-Tek RK-501 is a manual micrometer with a 0 to 25 mm measuring range and 0.01 mm resolution. It features an aluminum or steel construction, durable mechanical design, clear scale markings, ergonomic handling and battery free operation.
The R-Tek RK-504 is a manual micrometer covering a 50 to 75 mm measuring range with 0.01 mm resolution. It is designed for industrial applications and features an aluminum construction, clear scale markings, durable mechanical operation and ergonomic handling.
The R-Tek RK-507 is a digital micrometer with a 25 to 50 mm measuring range and stated accuracy of ±0.003 mm. It incorporates a high contrast LCD display, instant digital reading, zero setting function, dual unit switching, high repeatability and rapid measurement capability.
Together, these models provide options for users who prefer either traditional mechanical measurement or convenient digital indication.
B. Working Principle
A micrometer measures a component by converting the controlled movement of a precision screw into a dimensional reading.
In a manual micrometer such as the RK-501 or RK-504, the component is positioned between the measuring surfaces. Rotating the micrometer mechanism gradually moves the spindle toward the component. The resulting dimension is then determined using the graduated mechanical scale.
The RK-501 and RK-504 use mechanical measurement and therefore operate without batteries. Both models specify a resolution of 0.01 mm.
In a digital micrometer such as the RK-507, spindle movement is electronically converted into a numerical value and displayed directly on the LCD screen. This eliminates the need to manually interpret scale markings. The RK-507 also provides zero setting and dual unit switching for convenient measurement.
The explanation of spindle and screw operation above describes the standard operating principle of outside micrometers. The listed ranges, resolution, accuracy and electronic functions are taken from the supplied product listings.
C. Why R-Tek Micrometers Are Used
R-Tek Micrometers are used when accurate dimensional inspection is required for manufactured or machined components. They are particularly useful where ordinary rulers or general measuring tools cannot provide sufficient resolution.
Typical applications include:
- Measuring external component diameter
- Measuring material thickness
- Checking machined parts
- Inspecting shafts, rods and similar components
- Production quality inspection
- Workshop dimensional measurement
- Engineering inspection
- Manufacturing process verification
- Component comparison and tolerance checking
- Maintenance and fabrication measurement
The manual RK-501 and RK-504 provide simple mechanical measurement with battery free operation, while the RK-507 provides direct digital readings and additional functions for faster measurement.
D. Suitable Buyers
R-Tek Micrometers are suitable for:
- Mechanical engineering companies
- Machine shops
- Manufacturing plants
- Quality control departments
- Tool rooms
- Fabrication workshops
- Automotive component manufacturers
- Industrial maintenance departments
- Production engineers
- Quality inspectors
- Maintenance engineers
- Engineering laboratories
- Technical institutes
- Research and development departments
- Industrial equipment manufacturers
Buyers can select the appropriate model depending on the required measuring range and preference for manual or digital operation.
RK-501: 0 to 25 mm, manual, 0.01 mm resolution.
RK-507: 25 to 50 mm, digital, ±0.003 mm stated accuracy.
RK-504: 50 to 75 mm, manual, 0.01 mm resolution.
Frequently Asked Questions
1. What is an R-Tek Micrometer?
An R-Tek Micrometer is a precision dimensional measuring instrument designed for accurate measurement of external component dimensions. R-Tek offers both manual and digital micrometer models for industrial measurement applications.
2. What is the measuring range of the R-Tek RK-501?
The R-Tek RK-501 Manual Micrometer has a measuring range of 0 to 25 mm.
3. What is the resolution of the RK-501 Micrometer?
The RK-501 has a specified resolution of 0.01 mm.
4. What is the measuring range of the R-Tek RK-504?
The RK-504 Manual Micrometer is designed for measurements from 50 to 75 mm.
5. What is the resolution of the RK-504?
The RK-504 has a specified resolution of 0.01 mm.
6. What is the measuring range of the R-Tek RK-507 Digital Micrometer?
The RK-507 covers a measurement range of 25 to 50 mm.
7. What is the accuracy of the R-Tek RK-507?
The supplied IndustryBuying listing specifies an accuracy of ±0.003 mm for the 25 to 50 mm range.
8. Does the RK-507 have a digital display?
Yes. The RK-507 features a high contrast LCD display for direct digital measurement readings.
9. Can the RK-507 switch between measurement units?
Yes. The RK-507 includes a dual unit switching function for convenient measurement in different units.
10. Does the R-Tek RK-507 have a zero setting function?
Yes. A zero setting function is included among the RK-507's listed features.
11. Do R-Tek manual micrometers require batteries?
The RK-501 and RK-504 are listed as battery free mechanical micrometers.
12. Which R-Tek Micrometer should I select?
Select according to the component size and preferred measurement method. Choose the RK-501 for 0 to 25 mm, the RK-507 for digital measurement from 25 to 50 mm, and the RK-504 for manual measurement from 50 to 75 mm.
13. Are R-Tek Micrometers suitable for industrial use?
Yes. The listings position these micrometers for industrial applications, with features aimed at durability, repeatable measurement and convenient handling.
14. Where are micrometers commonly used?
Micrometers are commonly used in machining, manufacturing, engineering workshops and quality inspection where precise dimensional measurement of components is required.
