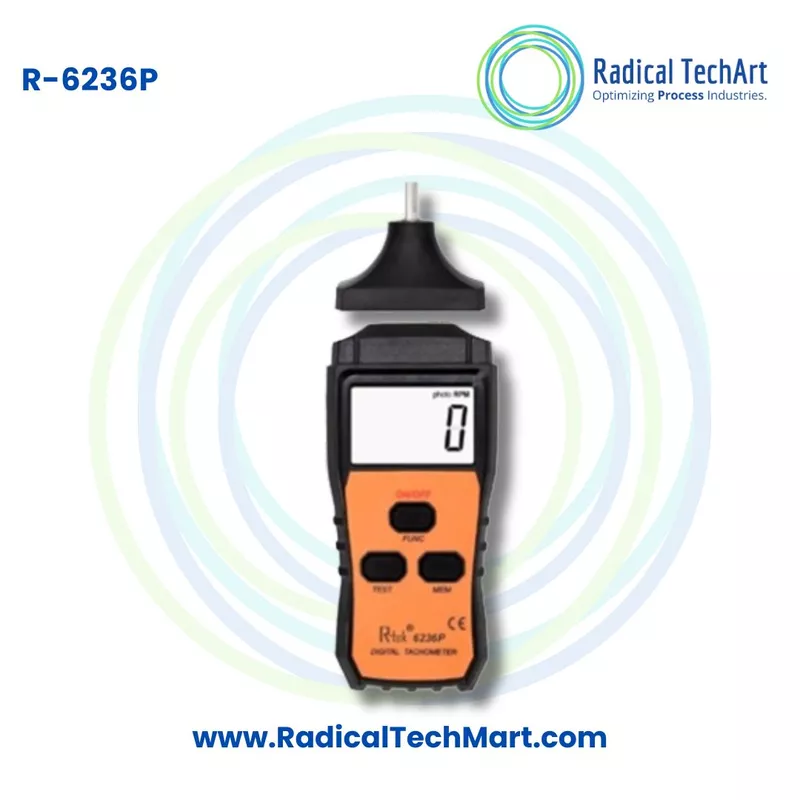

RT-6236P Tachometer 2 in 1
Customize
Share :
A. Product Overview
The R-Tek Tachometer and RPM Meter is designed for accurate rotational speed measurement of machinery and rotating components. R-Tek describes tachometers as important instruments for measuring motor speed, line speed and frequency, including the rotational speed of impeller blades, drums, spindle shafts and other moving components.
Technical Specifications
| Specification | Details |
|---|---|
| Display | 5 Digit LCD Display |
| Unit | RPM |
| Measuring Range | 2.5 to 99,999 RPM |
| Resolution | 0.1 RPM from 2.5 to 999.9 RPM |
| Resolution | 1 RPM from 1,000 to 99,999 RPM |
| Accuracy | 0.1 percent n and 5d RPM from 2.5 to 999.9 RPM |
| Accuracy | 1 percent n and 5d RPM from 1,000 to 99,999 RPM |
| Laser Power | Class II, 2 to 5 mW |
| Sampling Rate | 1 time per second |
| Measuring Distance | 50 to 500 mm |
| Time Base | Quartz Crystal |
| Auto Power Off | After 1 minute without operation |
| Operating Environment | 0°C to 50°C, 10 percent to 90 percent RH |
| Storage Environment | Minus 10°C to 80°C, 10 percent to 75 percent RH |
| Power Supply | 2 x 1.5 V AAA batteries |
| Size | 55.7 x 29.9 x 127 mm |
| Weight | 106 g |
The unit also provides MAX, MIN, AVG and LAST value functions, low battery indication, LCD backlight and memory.
B. Working Principle
The R-Tek Tachometer uses a Class II laser for rotational speed measurement. The instrument is positioned approximately 50 to 500 mm from the rotating component being measured. It detects the rotational movement and calculates the rotational speed, displaying the result in RPM on its 5 digit LCD screen.
The instrument samples the measurement once per second and uses a quartz crystal time base to support speed measurement.
For lower rotational speeds between 2.5 and 999.9 RPM, the display resolution is 0.1 RPM. From 1,000 to 99,999 RPM, the resolution is 1 RPM.
C. Why Is a Tachometer Used?
A tachometer is used to determine how quickly a motor, shaft, fan, drum, spindle or other rotating component is operating.
Accurate RPM measurement is important because abnormal rotational speed can indicate improper machine settings, process variation or equipment performance problems.
The R-Tek Tachometer can be used for:
- Motor RPM measurement
- Fan speed measurement
- Shaft rotational speed checking
- Spindle speed measurement
- Drum speed measurement
- Impeller speed measurement
- Machinery testing
- Equipment maintenance
- Production machinery inspection
- Automobile applications
- Textile machinery testing
R-Tek specifically identifies applications involving motors, fans, washing equipment, textile machinery, automobiles, aircraft, ships and other industries.
D. Suitable Buyers
The R-Tek Tachometer and RPM Meter may be suitable for:
- Industrial maintenance engineers
- Electrical engineers
- Mechanical engineers
- Machine manufacturers
- Motor manufacturers
- Factory maintenance departments
- Textile manufacturers
- Automobile workshops
- HVAC maintenance companies
- Fan and blower manufacturers
- Pump and motor service centers
- Production plants
- Machine maintenance contractors
- Testing laboratories
- Engineering colleges and technical institutes
- Industrial equipment dealers
It is particularly relevant for professionals who need a portable instrument for measuring motor speed and rotational speed up to 99,999 RPM.
Frequently Asked Questions
1. What is an R-Tek Tachometer and RPM Meter?
The R-Tek Tachometer and RPM Meter is a portable digital instrument used for measuring rotational speed in RPM, or revolutions per minute.
2. What is the measurement range of the R-Tek Tachometer?
The specified measurement range is 2.5 to 99,999 RPM.
3. What type of display does the tachometer have?
It features a 5 digit LCD display.
4. Is this a laser tachometer?
Yes. The specification lists a Class II laser with 2 to 5 mW laser power.
5. What is the measuring distance?
The specified measuring distance is 50 to 500 mm.
6. What is the resolution of the tachometer?
The resolution is:
- 0.1 RPM from 2.5 to 999.9 RPM
- 1 RPM from 1,000 to 99,999 RPM
7. How frequently does the tachometer update the measurement?
The specified sampling rate is one measurement per second.
8. Can it measure motor RPM?
Yes. R-Tek specifically identifies motor speed measurement as one of the applications of its tachometer and RPM meter.
9. Can this tachometer measure fan speed?
Yes. Fans are specifically listed among the suitable applications on the R-Tek product page.
10. Can it be used for textile machinery?
Yes. R-Tek lists the textile industry among the applications for the tachometer.
11. Does the tachometer store measurement values?
Yes. The product page lists a memory function along with MAX, MIN, AVG and LAST value functions.
12. Does it have a backlight?
Yes. An LCD backlight is included in the listed features.
13. Does it indicate low battery?
Yes. The tachometer includes a low battery indication function.
14. What batteries does the R-Tek Tachometer use?
It operates using two 1.5 V AAA batteries.
15. Does the tachometer switch off automatically?
Yes. The product has an automatic power off function after one minute without operation.
16. What is the operating temperature?
The specified operating temperature range is 0°C to 50°C, with relative humidity from 10 percent to 90 percent RH.
17. What is the weight of the R-Tek Tachometer?
The product weighs approximately 106 g.
18. Where can an R-Tek Tachometer be used?
According to R-Tek, the tachometer can be used for motors, fans, washing equipment, textile machinery, automobiles, aircraft, ships and other industrial rotating equipment.
