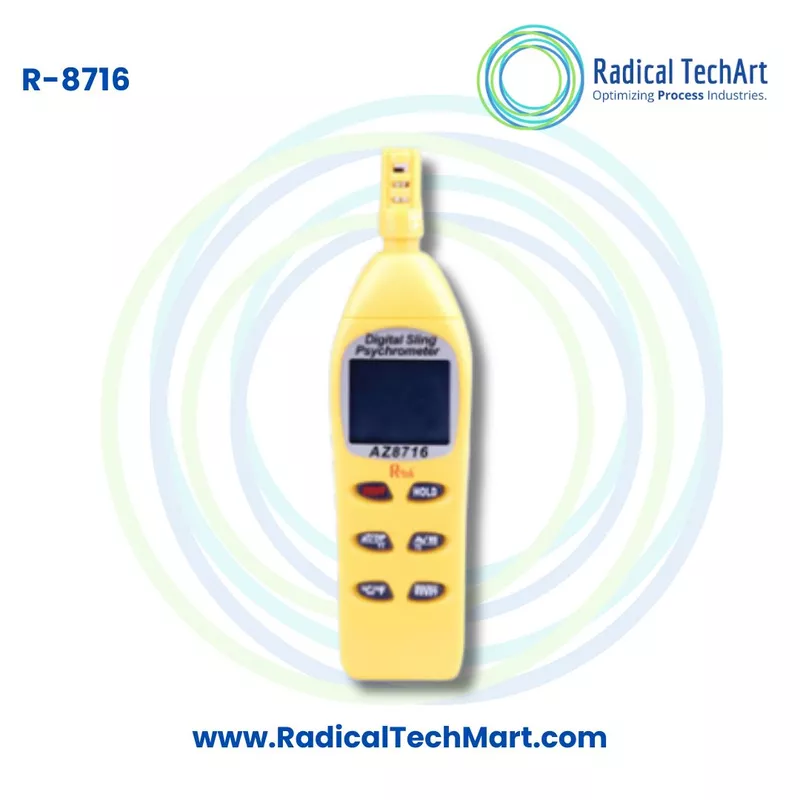

RT-8716 Digital Psychrometer
Customize
Share :
A. Product Overview
The R-Tek RT-8716 Digital Psychrometer is designed for simultaneous measurement and evaluation of temperature and humidity related parameters. It measures relative humidity from 0 to 100 percent RH and internal temperature from -20°C to 50°C.
The instrument can display several combinations of measurements, including:
- Humidity and T1
- Humidity and T2
- Humidity and T1 minus T2
- Humidity and dew point
- Humidity and wet bulb temperature
- Humidity and external temperature T2 with dew point
- Humidity and dew point with Delta T, calculated as T2 minus dew point
Key Specifications
| Parameter | Specification |
|---|---|
| Model | RT-8716 |
| Relative Humidity Range | 0 to 100 percent RH |
| Temperature Range | -20°C to 50°C |
| Wet Bulb Range | -21.6°C to 50°C |
| Dew Point Range | -78.7°C to 50°C |
| External Temperature Range | -20°C to 70°C |
| Humidity Accuracy | ±3 percent RH at 25°C |
| Temperature Accuracy | ±0.6°C |
| Typical Response Time | 60 seconds |
| Power Supply | 2 x 1.5 V AAA batteries |
| Size | 24.7 x 48.4 x 178.5 mm |
The manufacturer also lists an external temperature probe and humidity calibration salt solutions as accessories.
B. Working Principle
The RT-8716 Digital Psychrometer measures ambient temperature and relative humidity through its internal sensing system. Using these measured values, the instrument provides calculated environmental parameters such as dew point and wet bulb temperature.
An external temperature probe can also be connected for T2 measurement. This enables the meter to compare internal or ambient measurements with an external temperature measurement and display combinations such as T1 minus T2 and T2 minus dew point.
In practical terms:
Temperature and humidity measurement → internal calculation → wet bulb, dew point and temperature difference displayed
This allows multiple environmental conditions to be evaluated using one handheld instrument.
C. Why Is the R-Tek RT-8716 Used?
The RT-8716 is useful when temperature alone is not sufficient to understand environmental conditions. Relative humidity, dew point and wet bulb temperature can provide additional information about moisture conditions in the surrounding air.
The instrument is particularly useful for applications requiring:
- Temperature measurement
- Relative humidity measurement
- Dew point measurement
- Wet bulb temperature measurement
- External temperature measurement
- Comparison between two temperature measurements
- Temperature and humidity monitoring
- Environmental condition assessment
Its 0 to 100 percent RH measurement range, multiple display combinations and portable battery powered construction make it suitable for field measurements as well as routine environmental inspections.
D. Suitable Buyers
Based on the parameters measured by the RT-8716, it can be relevant for buyers involved in:
- HVAC installation and servicing
- Air conditioning maintenance
- Ventilation system inspection
- Environmental monitoring
- Industrial maintenance
- Facility management
- Laboratory environmental monitoring
- Warehouses and storage facilities
- Building maintenance
- Temperature and humidity inspection
- Quality control departments
- Technical service companies
- Instrumentation professionals
These applications are practical use cases inferred from the temperature, humidity, dew point and wet bulb measurement capabilities specified by R-Tek.
Frequently Asked Questions
1. What is the R-Tek RT-8716?
The R-Tek RT-8716 is a digital psychrometer designed to measure relative humidity, temperature, wet bulb temperature and dew point. It can also work with an external temperature probe.
2. What is the humidity measurement range of the RT-8716?
The RT-8716 measures relative humidity from 0 to 100 percent RH.
3. What is the temperature range of the R-Tek RT-8716?
The internal temperature measurement range is -20°C to 50°C.
4. Can the RT-8716 measure dew point?
Yes. The RT-8716 has a specified dew point measurement range from -78.7°C to 50°C.
5. Can the RT-8716 measure wet bulb temperature?
Yes. Its wet bulb measurement range is -21.6°C to 50°C.
6. Does the RT-8716 support an external temperature probe?
Yes. R-Tek specifies an external temperature measurement range of -20°C to 70°C, and an external temperature probe is listed among the available accessories.
7. What is the humidity accuracy of the RT-8716?
The specified relative humidity accuracy is ±3 percent RH at 25°C.
8. What is the temperature accuracy?
The specified temperature accuracy is approximately ±0.6°C.
9. How quickly does the RT-8716 respond?
R-Tek specifies a typical response time of 60 seconds.
10. What batteries are required for the RT-8716?
The instrument operates using two 1.5 V AAA batteries.
11. Is the RT-8716 suitable for HVAC applications?
Its ability to measure temperature, humidity, wet bulb temperature and dew point makes it suitable for HVAC related environmental measurements and air condition assessment.
12. What is the advantage of measuring dew point and wet bulb temperature?
These parameters provide additional information about moisture and air conditions beyond ordinary temperature measurement, helping users evaluate environmental conditions more effectively.
