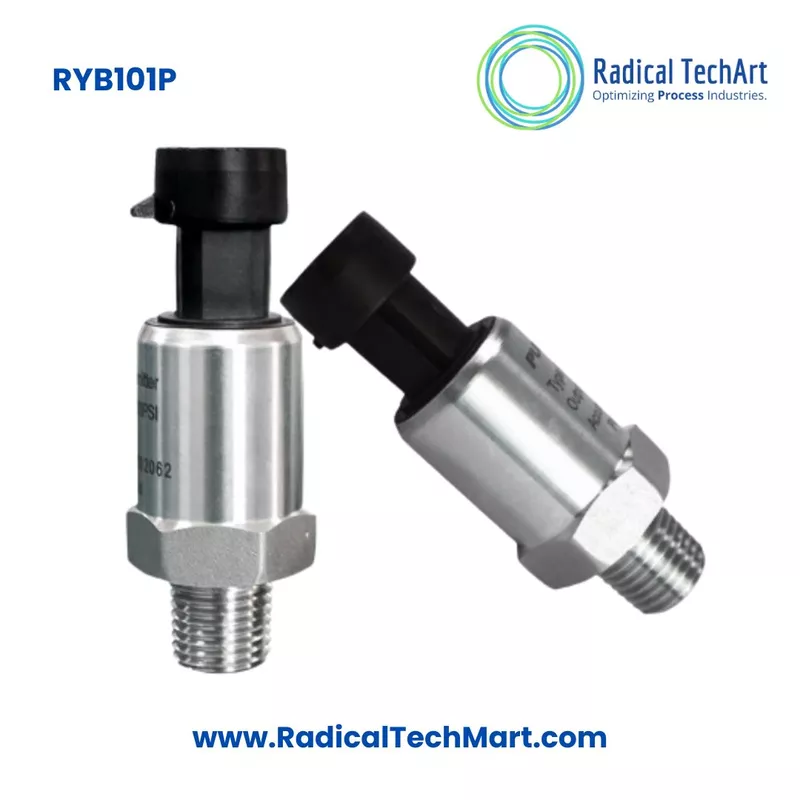

RYB101P HVAC Pressure Transmitter

A. Product Overview

The RYB101P HVAC Pressure Transmitter is designed for industrial pressure measurement applications where compact size, rugged construction and stable performance are required. It uses a high-quality piezoresistive sensor packaged in a stainless steel housing, making it suitable for demanding industrial and HVAC environments.

The transmitter is suitable for applications such as process control systems, hydraulic systems and valves, refrigeration and HVAC controls, level measurement and test equipment. It also offers a wide range of process connection and electrical connection options to match different installation requirements.

Key Specifications

B. Working Principle

The RYB101P HVAC Pressure Transmitter works by using a piezoresistive sensor to detect pressure applied through the process connection. When pressure is applied, the sensor converts the pressure change into an electrical signal. The transmitter then processes this signal and provides a standard output such as 4-20mA, 0-5V or 0-10V for connection with PLCs, controllers, indicators, HVAC panels and monitoring systems.

Because the sensor is packaged in a stainless steel housing, the transmitter can provide reliable pressure measurement in industrial environments where compact size, vibration resistance and corrosion resistance are important.

C. Why It Is Used

The RYB101P is used to measure and transmit pressure values in HVAC and industrial systems. It helps convert process pressure into a standard electrical output, allowing pressure data to be monitored, displayed and controlled through automation systems.

It is mainly used because it offers:

Compact structure and small size
High cost performance
Piezoresistive pressure sensing technology
Stainless steel housing
Good corrosion resistance
Impact resistance and vibration resistance
Stable long-term operation
Standard 4-20mA, 0-5V and 0-10V output options
IP65 protection for industrial installation
Suitable design for HVAC controls and refrigeration systems

D. Suitable Buyers

The RYB101P HVAC Pressure Transmitter is suitable for buyers who need a compact pressure transmitter for HVAC, refrigeration and industrial pressure monitoring.

Suitable buyers include:

HVAC system manufacturers
Refrigeration system manufacturers
Industrial automation companies
Process control system integrators
Hydraulic system manufacturers
Valve manufacturers
Machine builders and OEMs
Panel builders
Maintenance departments
Industrial equipment suppliers
Pressure transmitter dealers and resellers
Water treatment and utility system companies

FAQ

Q1. What is the RYB101P HVAC Pressure Transmitter used for?
The RYB101P is used for industrial pressure measurement in HVAC controls, refrigeration systems, process control systems, hydraulic systems, valves, level measurement and test equipment.

Q2. Which sensor technology is used in RYB101P?
The RYB101P uses a piezoresistive sensor.

Q3. What is the pressure range of RYB101P?
The pressure range is 0 to 20MPa.

Q4. What output signals are available in RYB101P?
The available output signals are 4-20mA, 0-5V and 0-10V.

Q5. What is the power supply requirement?
The RYB101P works with a 10-30VDC power supply.

Q6. What is the accuracy of RYB101P?
The listed accuracy is 0.5%F.S.

Q7. What electrical interface is available?
The listed electrical interface is Packard.

Q8. What thread connection is available?
The listed thread connection is Female 7/16-20UNF customized.

Q9. Is RYB101P suitable for HVAC applications?
Yes. The product page specifically lists refrigeration and HVAC controls as suitable applications.

Q10. Is it suitable for hydraulic systems?
Yes. The product page mentions hydraulic systems and valves as suitable applications.

Q11. What is the protection rating of RYB101P?
The listed protection rating is IP65.

Q12. Is RYB101P corrosion resistant?
Yes. The page states that the material in contact with the medium is stainless steel and has good corrosion resistance.
