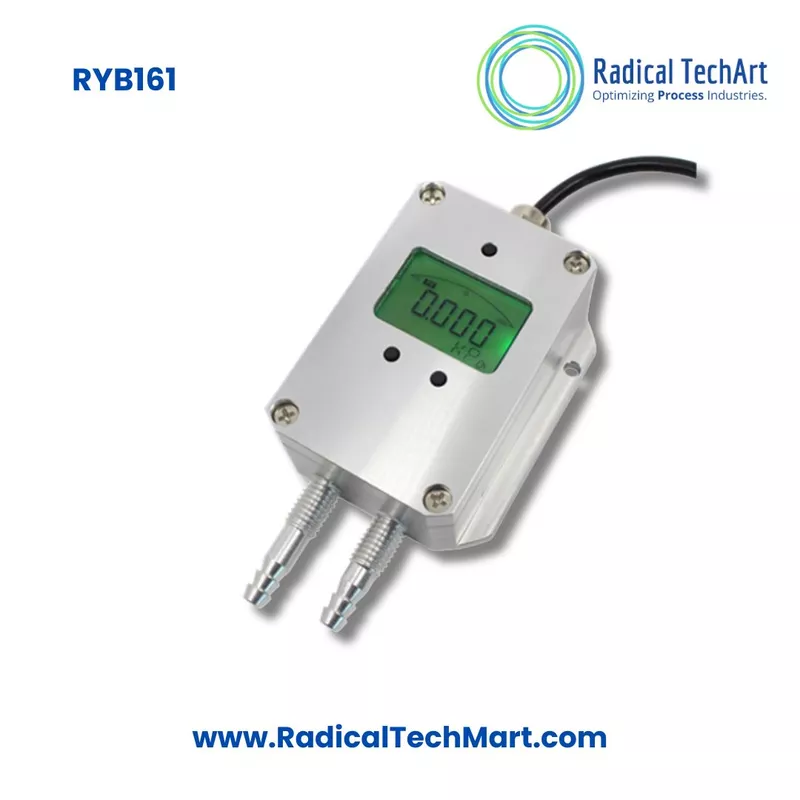

RYB161 Clean Room Differential Pressure Transmitter

A. Product Overview

The RYB161 Clean Room Differential Pressure Transmitter is an intelligent instrument used to measure, display and transmit air differential pressure. It is suitable for monitoring the pressure difference between two rooms, ducts, filters or ventilation zones.

This transmitter is mainly used for dry and non-corrosive gases. It is designed with an aluminum alloy housing, stable sensor compensation, good sealing performance and vibration resistance. The 4-digit LED or LCD display makes the pressure value easy to read during installation, inspection and daily operation.

The RYB161 is suitable for cleanroom pressure monitoring, HVAC air pressure monitoring, filter blockage monitoring, medical equipment, laboratory pressure control, fire escape pressure systems, boiler systems, coal industry and electric power applications.

B. Working Principle

The RYB161 Differential Pressure Transmitter works by comparing the pressure between two air points. One port is connected to the high pressure side and the other port is connected to the low pressure side.

When there is a pressure difference between the two ports, the internal pressure sensing element detects the micro differential pressure. The sensor converts this pressure difference into an electrical signal. The transmitter then processes the signal through its internal compensation circuit to reduce errors caused by temperature and sensitivity changes.

After processing, the transmitter provides a standard output signal such as 4–20mA, RS485 or 0–10V. This signal can be connected to a PLC, indicator, controller, BMS, cleanroom monitoring system or SCADA system.

In cleanroom applications, the transmitter continuously monitors whether the room is maintaining positive pressure or negative pressure compared to the surrounding area.

C. Why It Is Used

The RYB161 Clean Room Differential Pressure Transmitter is used to maintain safe and controlled air pressure conditions in sensitive environments. In cleanrooms, laboratories and pharma areas, air pressure difference is important because it helps control contamination, airflow direction and room safety.

It is commonly used for:

1. Cleanroom pressure monitoring to maintain positive or negative room pressure
2. HVAC system monitoring for air duct and ventilation pressure measurement
3. Filter monitoring to detect filter blockage or pressure drop
4. Medical equipment applications where stable air pressure measurement is required
5. Laboratory pressure control for controlled environments
6. Fire escape pressure systems to monitor differential pressure
7. Boiler, coal and electric power applications for dry gas micro pressure measurement
8. Building management systems for continuous air pressure supervision

The main purpose of this transmitter is to provide reliable air pressure difference data so that airflow, filtration and room pressure can be controlled accurately.

D. Suitable Buyers

The RYB161 Clean Room Differential Pressure Transmitter is suitable for buyers who need low pressure and air differential pressure monitoring.

Suitable buyers include:

1. Pharma companies requiring cleanroom pressure monitoring
2. Cleanroom contractors working on controlled environment projects
3. HVAC contractors installing air pressure and duct pressure monitoring systems
4. Laboratory equipment suppliers requiring air pressure sensors
5. Medical equipment manufacturers needing differential pressure measurement
6. BMS and automation system integrators connecting sensors to PLC, BMS or SCADA systems
7. Hospitals and healthcare facilities maintaining isolation rooms and controlled areas
8. Food and beverage industries requiring hygienic air pressure control
9. Electronics and semiconductor industries using cleanroom environments
10. Industrial maintenance teams replacing air differential pressure transmitters in existing systems

FAQ

1. What is the RYB161 Clean Room Differential Pressure Transmitter used for?

The RYB161 is used to measure air differential pressure in cleanrooms, HVAC systems, laboratories, medical equipment, ventilation ducts and controlled environments.

2. Can the RYB161 be used in cleanroom applications?

Yes. The RYB161 is suitable for cleanroom pressure monitoring where positive pressure or negative pressure needs to be maintained between two areas.

3. What type of gas can the RYB161 measure?

The RYB161 is designed for dry and non-corrosive gases. It is mainly used for air and gas differential pressure measurement.

4. What output signals are available in the RYB161?

The RYB161 supports output options such as 4–20mA, RS485 and 0–10V, depending on the selected model configuration.

5. Does the RYB161 come with a display?

Yes. The RYB161 is available with LED or LCD display options for local pressure reading.

6. What is the pressure range of the RYB161?

The product data shows a differential pressure range up to 0–10kPa. The actual range can be selected as per application requirement.

7. What is the accuracy of the RYB161?

The RYB161 is available with 0.5 percent F.S and 1 percent F.S accuracy options, depending on the selected configuration.

8. Can the RYB161 be connected to a PLC or BMS system?

Yes. With 4–20mA, RS485 or 0–10V output, the RYB161 can be connected to PLC, BMS, SCADA, controllers, indicators and monitoring systems.

9. Is the RYB161 suitable for filter monitoring?

Yes. The RYB161 can be used to monitor pressure drop across air filters. A rise in differential pressure can indicate filter blockage or maintenance requirement.

10. What industries commonly use this transmitter?

The RYB161 is commonly used in pharma, healthcare, laboratories, HVAC, cleanrooms, food processing, medical equipment, power plants, boiler systems and industrial ventilation applications.
