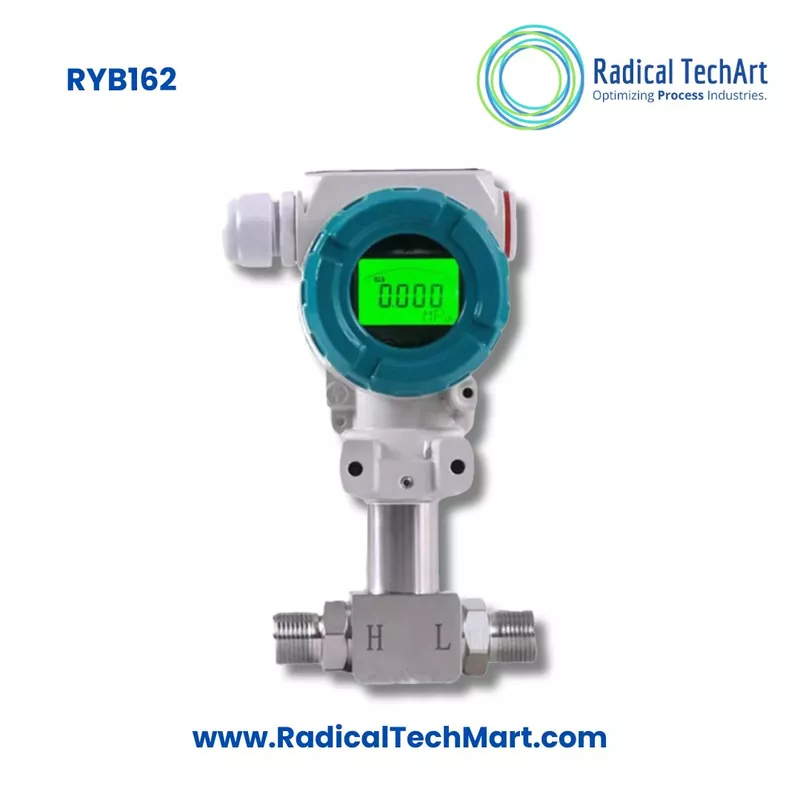

RYB162 Explosion Proof Differential Pressure Transmitter

A. Product Overview

The RYB162 Explosion Proof Differential Pressure Transmitter is an industrial pressure measuring instrument used to monitor the difference between two pressure points. It is suitable for oil and gas, petroleum, chemical, metallurgy, electric power, water conservancy, environmental protection and scientific research applications where stable differential pressure monitoring is required. The product page highlights imported pressure sensor technology, computer-based temperature compensation, an integrated wiring box, convenient calibration and digital display support.

This transmitter is designed for liquid, gas, oil, water, fuel and corrosive fluid pressure measurement. Its intrinsically safe explosion-proof design makes it suitable for hazardous-area applications where ordinary pressure transmitters may not be safe to use. The product specification includes 0 to 3.5 MPa measuring range, 0.5 percent accuracy, 200 percent overload capacity, 4-20mA and RS485 output, 24VDC power supply, 4-digit LCD display, G1/2 thread and stainless steel interface material.

The uploaded QYB16X data sheet also describes the differential pressure transmitter construction as a fully welded differential pressure measuring element, with silicone oil filled between the sensor chip and corrugated diaphragms. It also mentions a diffused silicon piezoresistive differential pressure sensor with SS316L isolation diaphragm, temperature compensation and LED or LCD display options.

B. Working Principle

The RYB162 works by measuring the pressure difference between the high-pressure side and the low-pressure side. The measured differential pressure acts on internal diaphragms, and the pressure is transferred through silicone oil to the sensitive sensor chip. The sensor converts this pressure difference into an electrical signal.

The sensor signal is processed by the transmitter circuit and converted into standard industrial outputs such as 4-20mA and RS485. The differential pressure value can also be shown on the digital display for local monitoring. The data sheet explains that the sensor output has a linear relationship with differential pressure, which helps the transmitter measure and transmit pressure values accurately.

C. Why It Is Used

The RYB162 Explosion Proof Differential Pressure Transmitter is used when a process requires safe, accurate and stable measurement of pressure difference. In oil and gas, chemical and industrial plants, differential pressure measurement is important for monitoring pipelines, tanks, filters, pumps, flow systems and process equipment.

It is used because it provides:

Accurate differential pressure measurement for gas and liquid applications.

Explosion-proof protection for hazardous industrial areas.

Stable performance in petroleum, chemical, metallurgy, electric power and water treatment industries.

4-20mA and RS485 output for connection with PLC, SCADA, DCS, indicator and control systems.

Digital display for easy on-site reading and calibration.

Reverse polarity and current limiting protection for safer electrical operation.

Stainless steel interface for better compatibility with industrial and corrosive fluids.

High stability and precision for long-term process monitoring.

D. Suitable Buyers

This product is suitable for buyers who need differential pressure measurement in industrial and hazardous environments.

Suitable buyers include:

Oil and gas companies requiring explosion-proof pressure monitoring.

Chemical plants handling corrosive or process fluids.

Petroleum refineries and fuel processing units.

Water treatment plants and water conservancy projects.

Power plants and boiler system operators.

Metallurgy and heavy industry plants.

Machine manufacturers and OEMs requiring differential pressure transmitters.

System integrators working on PLC, SCADA and automation projects.

Maintenance teams replacing old pressure transmitters in hazardous areas.

Instrumentation dealers and industrial product resellers.

FAQ

1. What is the RYB162 Explosion Proof Differential Pressure Transmitter used for?

The RYB162 is used to measure the difference between two pressure points in gas, liquid, oil, water, fuel and industrial process systems. It is especially useful in oil and gas, chemical, petroleum, water treatment, power and hazardous-area applications.

2. Why is explosion-proof protection important in this transmitter?

Explosion-proof protection is important because oil, gas, petroleum and chemical environments may contain flammable gases or hazardous vapours. An intrinsically safe explosion-proof transmitter helps reduce risk while measuring pressure in such environments.

3. What output signals are available in RYB162?

The product supports 4-20mA and RS485 output. These outputs make it compatible with PLC, SCADA, DCS, digital indicators, controllers and industrial monitoring systems.

4. Does the RYB162 have a display?

Yes. The product supports a digital display, including 4-digit LCD display. This helps operators read pressure values directly at the installation site.

5. What is the measuring range of the RYB162?

The product page mentions a measuring range of 0 to 3.5 MPa. The uploaded data sheet also shows selectable measuring ranges depending on application requirements.

6. What is the accuracy of the RYB162 transmitter?

The product specification mentions 0.5 percent accuracy. This makes it suitable for general industrial differential pressure monitoring where stable and reliable measurement is required.

7. Which industries can use this transmitter?

It can be used in oil and gas, petroleum, chemical, metallurgy, electric power, water conservancy, environmental protection, machinery and scientific research applications.

8. Can this transmitter be used for corrosive fluids?

Yes. The product page mentions that it is suitable for different corrosive fluid applications, and the specification includes stainless steel interface material.

9. What power supply does the RYB162 require?

The product page mentions 24VDC power supply. The data sheet also indicates DC power supply options for industrial installations.

10. Why should buyers choose RYB162 for oil and gas applications?

Buyers should choose RYB162 because it combines differential pressure measurement, explosion-proof safety, digital display, 4-20mA and RS485 output, stainless steel interface and stable sensor performance. This makes it suitable for demanding oil, gas and industrial pressure monitoring applications.
