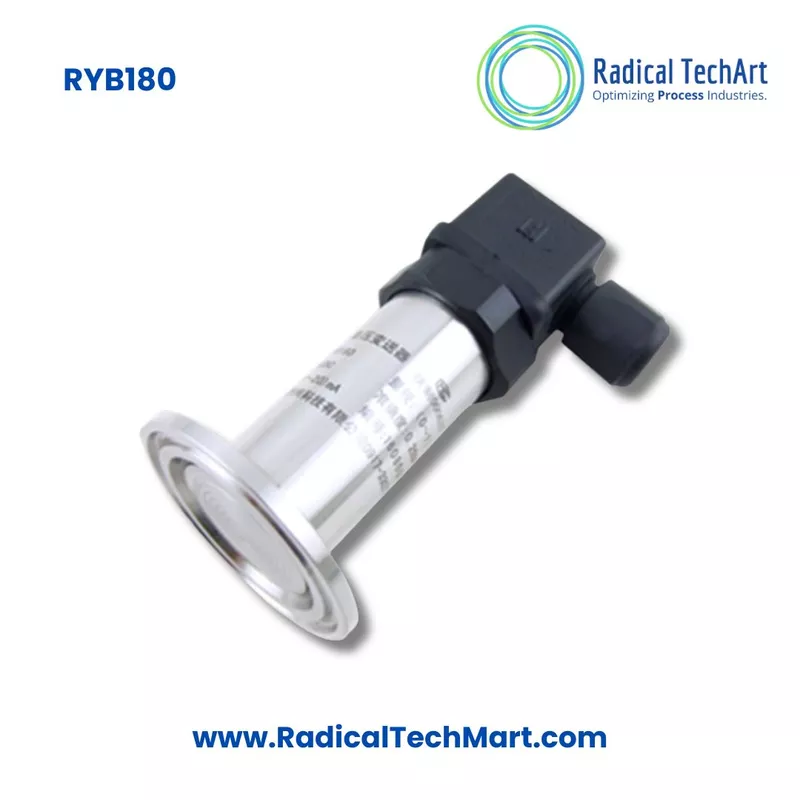

RYB180 Sanitary Flush Diaphragm Pressure Transmitter

A. Product Overview

RYB180 Sanitary Flush Diaphragm Pressure Transmitter is a hygienic pressure measurement instrument designed for food grade and sanitary process applications. It is suitable for measuring pressure in liquids, semi-liquid media, viscous fluids and process lines where cleanliness, corrosion resistance and stable pressure monitoring are required.

The transmitter uses a flush diaphragm structure that helps prevent material buildup on the sensing surface. Its wetted parts are made from 316 stainless steel, offering good resistance against chemical corrosion and making it suitable for food, beverage, dairy, brewing, pharmaceutical and hygienic industrial environments.

RYB180 supports multiple industrial output signals, including 4 to 20mA, 0 to 5V, 0 to 10V and RS485, making it compatible with PLC systems, controllers, data acquisition systems and automation panels. With sanitary tri-clamp installation, IP65 protection and long-term stable working performance, it is a practical choice for clean process pressure monitoring and control.

B. Working Principle

RYB180 Sanitary Flush Diaphragm Pressure Transmitter works by sensing the pressure applied to the flush diaphragm surface. When process pressure acts on the diaphragm, the sensing element converts the mechanical pressure into an electrical signal. The internal circuit then processes and amplifies this signal into a standard output such as 4 to 20mA, 0 to 5V, 0 to 10V or RS485.

The flush diaphragm design allows the process medium to contact a flat sensing surface instead of entering a narrow pressure port. This helps reduce clogging, scaling and residue accumulation, especially when measuring viscous liquids, food materials, slurry-like media or sanitary fluids. The transmitter output can be connected to PLCs, indicators, controllers, recorders or SCADA systems for continuous pressure monitoring and process control.

C. Why It Is Used

RYB180 Sanitary Flush Diaphragm Pressure Transmitter is used when standard pressure transmitters are not suitable due to hygiene requirements, sticky media, scaling problems or clean process standards. In food and beverage applications, pressure instruments must avoid dead zones, contamination points and material buildup. The flush diaphragm and tri-clamp connection help maintain a cleaner process connection and make installation and maintenance easier.

It is used to monitor and control pressure in tanks, pipelines, processing equipment, filling machines, dairy systems, brewing lines, pharmaceutical systems and other sanitary process areas. The transmitter helps maintain process stability, product quality and safe pressure operation.

Key reasons to use RYB180 include hygienic pressure measurement, anti-scaling design, 316L flush diaphragm, corrosion-resistant wetted parts, stable signal output, controller compatibility and suitability for food grade and sanitary applications.

D. Suitable Buyers

RYB180 Sanitary Flush Diaphragm Pressure Transmitter is suitable for buyers who need hygienic, corrosion-resistant and stable pressure measurement for clean process applications.

Suitable buyers include food processing companies, beverage manufacturers, dairy plants, breweries, pharmaceutical manufacturers, chemical process industries, machine manufacturers, automation system integrators, OEM equipment builders, hygienic process equipment suppliers, filling machine manufacturers, process control panel builders and maintenance teams working in sanitary production environments.

It is also suitable for purchase teams and project engineers looking for a flush diaphragm pressure transmitter for viscous liquid, food grade media, clean piping systems, storage tanks and automated process control systems.

FAQ

1. What is RYB180 Sanitary Flush Diaphragm Pressure Transmitter used for?

RYB180 is used for hygienic pressure measurement in food, beverage, dairy, brewing, pharmaceutical and industrial process applications. It is suitable for liquids, viscous media and sanitary process lines.

2. Why does this transmitter use a flush diaphragm?

The flush diaphragm helps prevent clogging, scaling and material buildup on the pressure sensing area. This makes it suitable for sticky, viscous and sanitary media where normal pressure ports may get blocked.

3. What is the benefit of 316L stainless steel in this transmitter?

316L stainless steel provides better corrosion resistance and is commonly preferred for food grade, pharmaceutical and hygienic process applications where cleanliness and material compatibility are important.

4. Which output signals are available in RYB180?

RYB180 supports multiple output options such as 4 to 20mA, 0 to 5V, 0 to 10V and RS485. These outputs make it compatible with PLCs, controllers, indicators and automation systems.

5. Is RYB180 suitable for food and beverage applications?

Yes, RYB180 is designed for food grade pressure measurement. Its sanitary construction, flush diaphragm and tri-clamp connection make it suitable for food, beverage, dairy and clean process industries.

6. What type of connection does RYB180 use?

RYB180 uses a sanitary tri-clamp connection, which allows easy installation and removal in hygienic process systems.

7. Can this transmitter be used for viscous liquids?

Yes, the flush diaphragm design makes RYB180 suitable for viscous liquids and media that may cause scaling or clogging in standard pressure transmitters.

8. What is the protection class of RYB180?

RYB180 has IP65 protection, making it suitable for many industrial and sanitary process environments.

9. Where can this transmitter be installed?

It can be installed in sanitary pipelines, processing tanks, food production equipment, beverage lines, dairy systems, brewing systems, pharmaceutical equipment and automated process control systems.

10. Who should buy RYB180 Sanitary Flush Diaphragm Pressure Transmitter?

This product is suitable for food and beverage manufacturers, dairy plants, pharmaceutical companies, OEMs, system integrators, automation panel builders and industrial maintenance teams that need hygienic pressure measurement.
