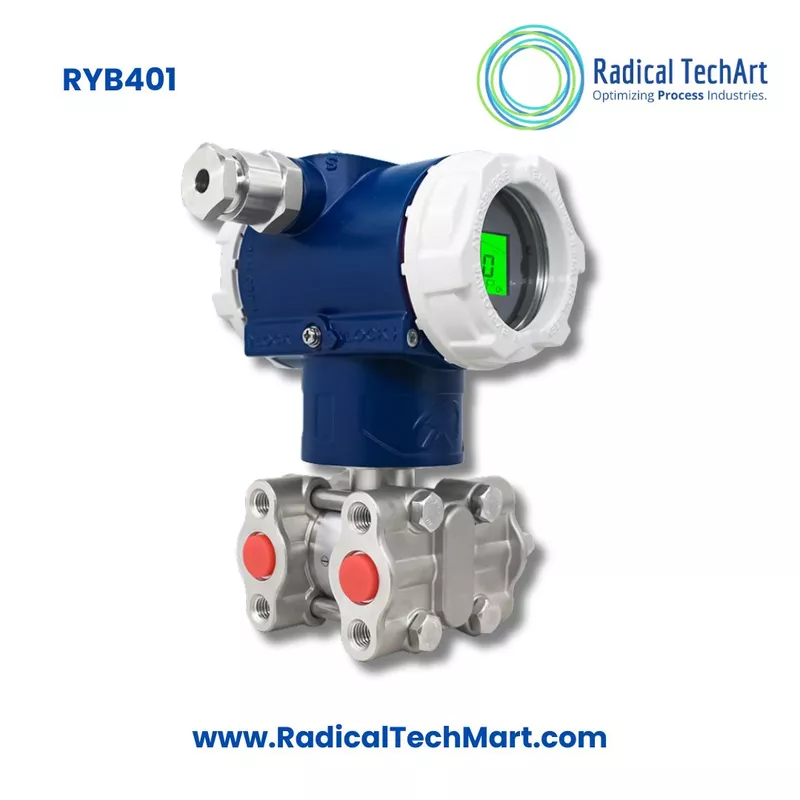

RYB401 Vacuum Pressure Transmitter

A. Product Overview

The RYB401 Differential Pressure Transmitter is a smart industrial pressure measuring instrument used to measure the pressure difference between two points. It is suitable for liquid, gas and vapor pressure measurement in pipelines, tanks, vessels and process systems.

This transmitter uses a German technology monocrystalline silicon sensor chip and advanced MEMS technology to deliver high accuracy and long term stability. Its double diaphragm structure and overload protection design help improve reliability in applications where pressure changes, static pressure and temperature variation can affect measurement performance.

The RYB401 is suitable for differential pressure measurement, flow measurement, pressure monitoring and liquid level measurement. It can be used with throttling devices for flow measurement and with storage tanks or process vessels for level measurement. The product supports 4–20mA HART and RS485 output, making it compatible with PLC, DCS, SCADA, data acquisition systems and industrial automation panels.

B. Working Principle

The RYB401 Differential Pressure Transmitter works by sensing the pressure difference between the high pressure side and low pressure side of a process line or vessel.

When pressure is applied to both sides of the transmitter, the sensing diaphragm detects the difference between the two pressure inputs. This mechanical pressure difference is converted into an electrical signal by the monocrystalline silicon sensor chip. The built in intelligent signal processing module then compensates for temperature influence, static pressure influence and overload effect.

After processing, the transmitter converts the measured value into a standard output signal such as 4–20mA HART or RS485. This signal can be sent to controllers, indicators, PLC systems, DCS systems and monitoring software for display, control, recording and automation.

In flow applications, the transmitter measures the differential pressure created across an orifice plate, venturi tube or other throttling device. In level applications, it measures the pressure difference caused by the liquid height inside a tank or vessel.

C. Why It Is Used

The RYB401 Differential Pressure Transmitter is used where accurate and stable measurement of pressure difference, flow and liquid level is required. It helps industries monitor process conditions, improve control accuracy and reduce measurement errors caused by temperature, static pressure and long term drift.

It is commonly used for:

1. Differential pressure measurement in liquid, gas and vapor lines
2. Flow measurement when installed with an orifice plate, venturi tube or other throttling device
3. Liquid level measurement in tanks, vessels and storage systems
4. Pressure monitoring in process pipelines and industrial equipment
5. Negative pressure and furnace pressure measurement in pulp, paper, boiler and furnace applications
6. Industrial automation where PLC, DCS or SCADA integration is required
7. High accuracy process measurement where stable output and long service life are important

The main purpose of this transmitter is to provide accurate process data so operators can control pressure, flow and level more safely and efficiently.

D. Suitable Buyers

The RYB401 Differential Pressure Transmitter is suitable for buyers who need a high accuracy DP transmitter for industrial and process measurement applications.

Suitable buyers include:

1. Instrumentation engineers looking for accurate differential pressure measurement
2. Process industries requiring stable pressure, flow and level monitoring
3. System integrators building PLC, SCADA and DCS based automation panels
4. OEM machine manufacturers requiring pressure and flow measurement in equipment
5. Maintenance departments replacing existing DP transmitters in plants
6. Purchase teams sourcing industrial pressure transmitters for projects and MRO requirements
7. Panel builders integrating 4–20mA HART or RS485 field instruments
8. Petroleum, chemical, power, gas, steel, metal, pulp, paper and shipbuilding industries
9. Water treatment and process utility plants requiring pressure and level monitoring
10. Industrial automation suppliers and resellers dealing in process instrumentation products

FAQ

1. What is the RYB401 Differential Pressure Transmitter used for?

The RYB401 Differential Pressure Transmitter is used for measuring differential pressure, pressure, flow and liquid level in industrial process applications. It is suitable for liquids, gases and vapors.

2. Can the RYB401 be used for flow measurement?

Yes. The RYB401 can be used for flow measurement when connected with a throttling device such as an orifice plate, venturi tube or flow nozzle. It measures the differential pressure generated by the flow and converts it into a standard output signal.

3. Can this transmitter be used for tank level measurement?

Yes. The RYB401 can be used for liquid level measurement in tanks and storage vessels. It measures the pressure difference created by the liquid height and provides an output signal for level indication and control.

4. What output signal does the RYB401 support?

The RYB401 supports standard industrial output options such as 4–20mA HART and RS485, depending on the selected model configuration.

5. What type of sensor is used in the RYB401?

The RYB401 uses a monocrystalline silicon sensor chip with advanced MEMS technology. This helps provide high accuracy, fast response and stable long term performance.

6. Is the RYB401 suitable for harsh industrial environments?

Yes. The transmitter is designed for industrial applications and includes overload protection, temperature compensation, static pressure compensation and strong anti interference performance.

7. What industries can use the RYB401 Differential Pressure Transmitter?

It is suitable for petroleum, chemical, power, gas, steel, metal, pulp, paper, shipbuilding, mechanical equipment, water treatment and general process automation industries.

8. Does the RYB401 have a display?

Yes. The RYB401 is available with an LCD display for local reading and parameter checking.

9. Why choose a smart differential pressure transmitter instead of a normal pressure transmitter?

A smart differential pressure transmitter provides better accuracy, compensation features, communication options and easier configuration. It can measure pressure difference, flow and level, while a normal pressure transmitter usually measures only single point gauge or absolute pressure.

10. Is the RYB401 compatible with PLC and SCADA systems?

Yes. With 4–20mA HART or RS485 output, the RYB401 can be connected with PLC, DCS, SCADA, indicators, controllers and data acquisition systems.
