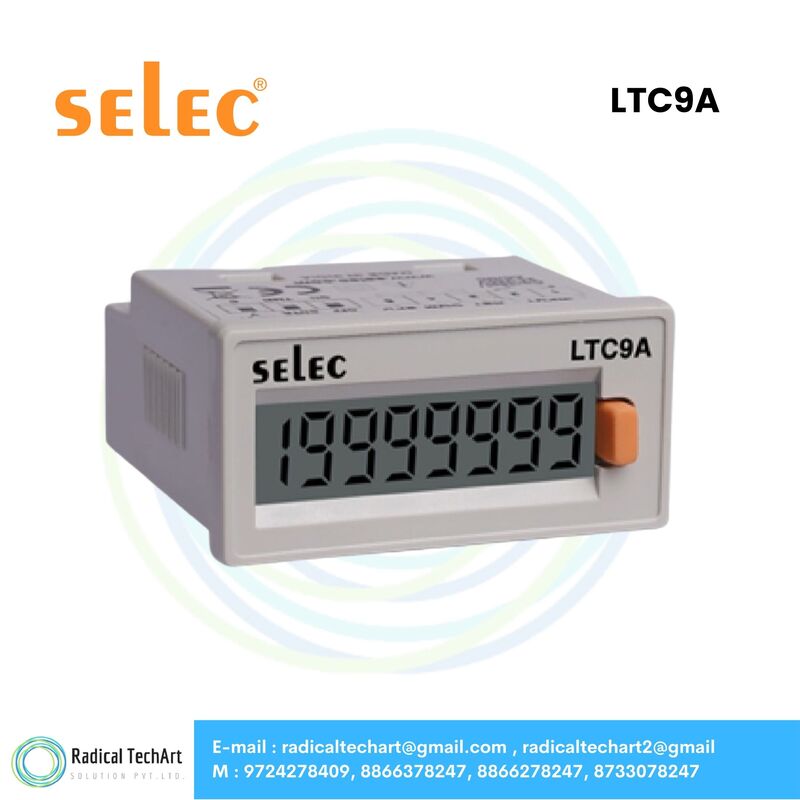

Selec LTC9A

The Selec LTC9A is a versatile 7 1/2 digit LCD time and count totalizer designed for precise time and count measurement applications.

• Display: 7 1/2 digit LCD for clear and accurate readings.
• Input Selection: Supports both contact and voltage inputs, allowing flexibility in various applications.
• Reset Options: Equipped with a front panel reset key and remote reset capability for user convenience.
• Operation Modes: Selectable as either a timer or counter to suit specific measurement needs.
• Power Supply: Self-powered via an internal battery, eliminating the need for external power sources.

Specifications:

• Hour Meter Ranges:
  • a) 1999 hours, 59 minutes, 59 seconds (hr:min:sec)
  • b) 199,999.99 hours
• Counter Range: Up to 19,999,999 counts
• Counting Direction: Up
• Input Speeds: Selectable between 14Hz and 100Hz
• Dimensions: 24mm x 48mm (H x W)
• Mounting: Designed for panel mounting
• Certification: CE certified for compliance with international standards

The LTC9A's compact size and versatile functionality make it suitable for a wide range of industrial and commercial applications requiring reliable time and count totalization.
