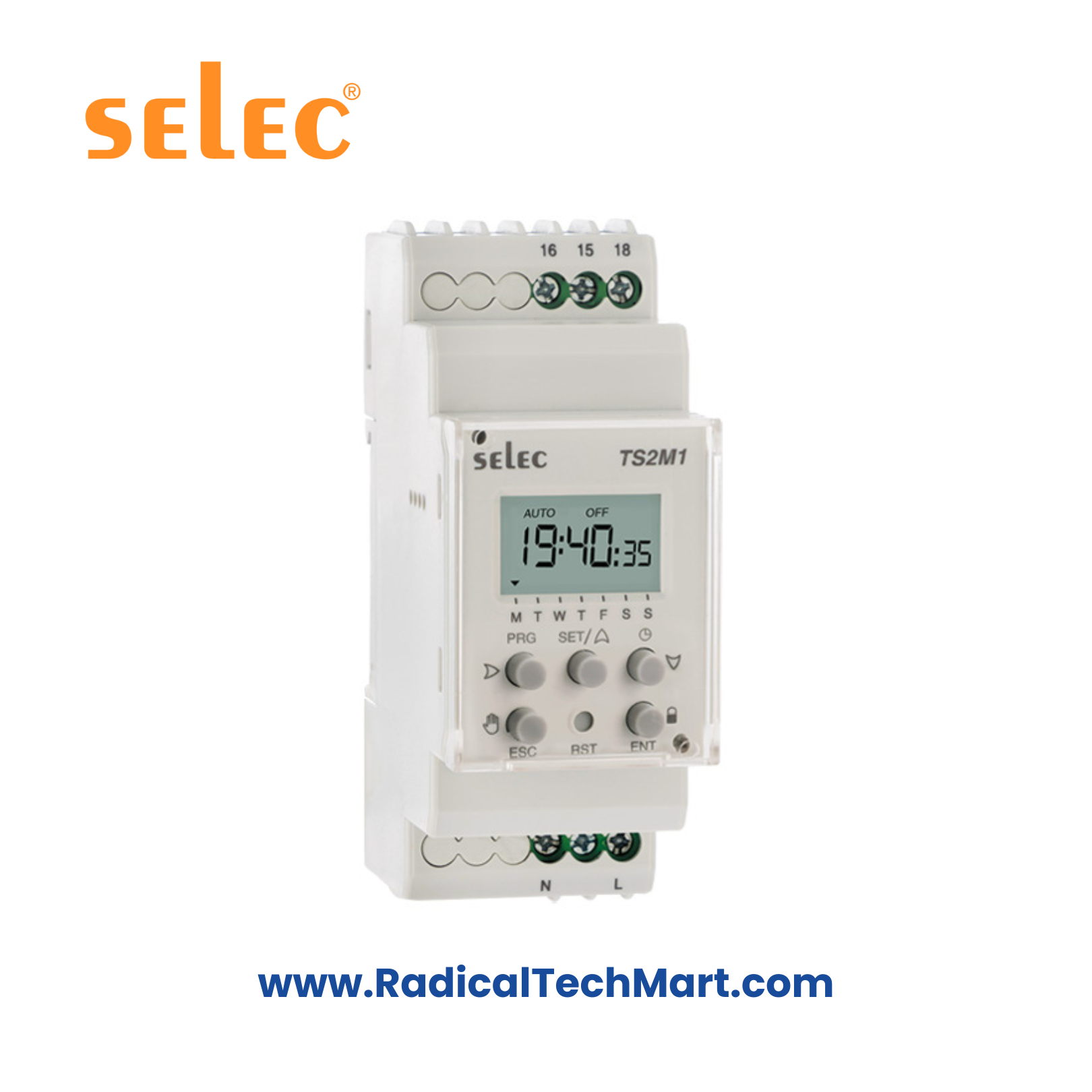

Selec TS2M1-1-16A 1 Channel Daily/Weekly Time Switch
Selec TS2M1-1-16A Weekly Time Switch (DIN Rail, 16A, 230V/110V AC)
DIN-rail weekly programmable time switch with 50 ON/OFF steps, 16A relay output, holiday settings, auto/manual override, and 10-year lithium battery backup.
Customize
Share :
The Selec TS2M1-1-16A is a compact DIN-rail-mounted weekly programmable time switch designed for industrial, commercial, and building automation. With 50 ON/OFF steps, 16 holiday settings, and a 16A relay output, it ensures precise and reliable scheduling of electrical loads.
Key Features
Text LCD display with 6-digit time and 2-digit step number
50 ON + 50 OFF steps per week (2–8 programs supported)
Auto / Manual / Permanent ON / Permanent OFF modes
Supports 12-hr and 24-hr clock formats
16 holiday dates for customized shutdown periods
High RTC accuracy (±15 minutes/year @ 25°C)
10-year lithium battery power reserve
1 C/O (SPDT) relay rated 16A @ 250V AC
DIN rail mounting with compact footprint
CE-certified, EMI/EMC compliant (IEC 61000 series)
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TS2M1-1-16A |
| Display | Text LCD without backlight, 6-digit time + 2-digit step number |
| Character Height | 5.07 mm (HH:MM), 3.39 mm (SS) |
| Relay Output | 1 C/O SPDT |
| Contact Rating | 16A at 250V AC |
| Weekly Steps | 50 ON + 50 OFF steps |
| Programs | 2 to 8 programmable modes |
| Holiday Settings | 16 dates |
| Minimum Setting | 1 second |
| Clock Format | 12-hr (AM/PM) & 24-hr |
| RTC Accuracy | ±15 min/year @ 25°C |
| Supply Voltage | 230V AC ±10% or 110V AC ±10% (50/60 Hz) |
| Power Consumption | Approx. 9W at 252V AC |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | –20°C to 70°C |
| Humidity | Up to 95% RH, non-condensing |
| Mounting | DIN rail 35 mm |
| Weight | 105 g |
| Compliance | IEC 61000-4 series, CISPR-11, CISPR-22, IEC 61326-1, IEC 61010-1 |
Applications
Industrial automation panels
Commercial lighting control
HVAC scheduling
Pump and motor scheduling
Office building automation
Process equipment timing
Residential automation panels
What’s in the Box?
Selec TS2M1-1-16A Weekly Time Switch
User manual
Warranty card
FAQ
1. How many ON/OFF steps does this timer support?
Up to 50 ON + 50 OFF steps per week.
2. Does it retain time during power failure?
Yes, it has a 10-year lithium battery backup.
3. Can I disable operation on specific dates?
Yes, up to 16 holiday settings are available.
4. Is the relay suitable for heavy loads?
It supports 16A at 250V AC, adequate for most lighting and panel loads.
5. How is it mounted?
It mounts on a DIN rail (35 mm).
