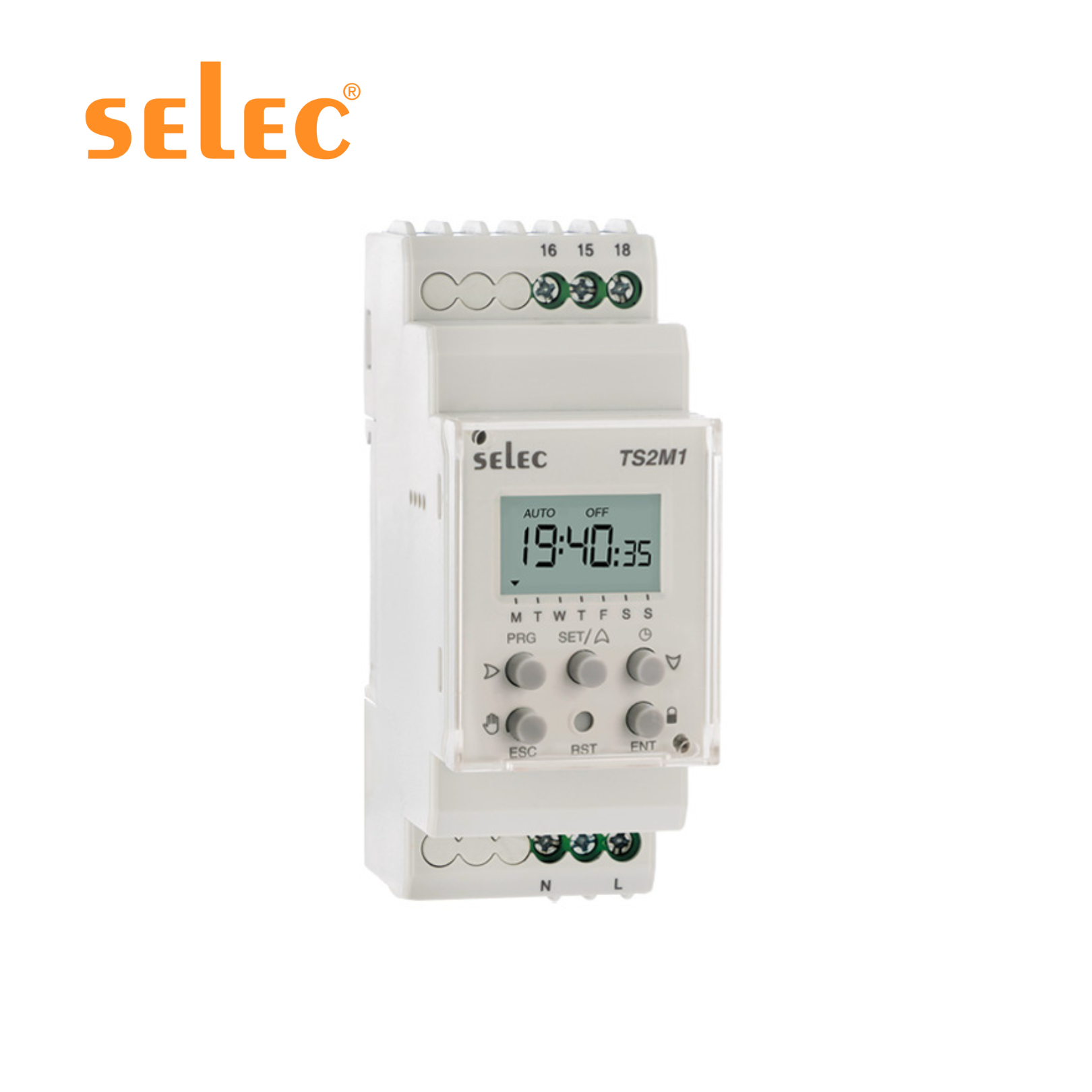

Selec TS2M1-2-16A Dual Channel Daily/Weekly Time Switch
Selec TS2M1-2-16A Weekly Time Switch (DIN Rail, Dual Relay, 16A, 230V AC)
A dual-relay weekly programmable time switch with 30 ON/OFF steps per day, 16 holiday settings, 16A relay ratings, and a text LCD for industrial automation panels.
Customize
Share :
The Selec TS2M1-2-16A Weekly Time Switch is a DIN-rail-mounted programmable timer designed for reliable weekly scheduling of electrical loads. With dual SPDT relay outputs, a 16A rating, 30 ON/OFF steps per day, and holiday scheduling, it is ideal for lighting, HVAC, and automation panels requiring precise timing control.
KEY FEATURES
Text LCD with 6-digit time display and 2-digit step number
30 ON–OFF steps per day
Dual relay outputs (Relay 1 & Relay 2)
Symbols indicating Auto, Manual, Holiday, Relay Status, Day of Week, Programming Mode
16 holiday dates
12-hour (AM/PM) and 24-hour clock formats
Auto / Permanent ON / Permanent OFF modes
10-year lithium battery power reserve
16A at 250V AC relay rating
Robust EMC immunity (IEC 61000 series)
TECHNICAL SPECIFICATIONS
| Parameter | Specification |
|---|---|
| Model | TS2M1-2-16A-230V |
| Operation Period | Weekly |
| ON/OFF Steps | 30 ON + 30 OFF per day |
| Minimum Setting | 1 second |
| Holiday Settings | 16 dates |
| Display | Text LCD (no backlight), 6-digit time & 2-digit step no. |
| Character Height | 5.07 mm (HH:MM), 3.39 mm (SS) |
| Relay Outputs | 2 × SPDT (Relay 1 & Relay 2) |
| Relay Rating | 16A at 250V AC |
| Clock Format | 12-hr / 24-hr |
| RTC Accuracy | ±15 min/year @ 25°C |
| Supply Voltage | 230 V AC ±10% (50/60 Hz) |
| Power Consumption | 9 W (at V AC) |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | –20°C to 70°C |
| Humidity | Up to 95% RH (non-condensing) |
| Mounting | DIN Rail 35mm |
| Weight | 105 g |
| Certifications | CE, IEC 61000-4-2/3/4/5/6/8/11, CISPR-11/22, IEC 61326-1, IEC 61010-1 |
APPLICATIONS
Industrial & commercial lighting control
HVAC and ventilation systems
Pump and motor control
Signage and outdoor lighting automation
Electrical distribution panels
Process automation scheduling
WHAT’S IN THE BOX?
Selec TS2M1-2-16A Weekly Time Switch
Mounting & wiring guide
Warranty documentation
FAQ
Q1. How many relays does this model have?
It includes two independent SPDT relays, both rated 16A.
Q2. Does the timer retain time during power failures?
Yes—it includes a 10-year lithium battery for RTC backup.
Q3. How many ON/OFF steps can I program?
You can program 30 ON + 30 OFF steps per day.
Q4. Can it be used for lighting control?
Yes, it's ideal for lighting, HVAC, pumps, and general automation.
Q5. What is the minimum time step?
You can set it down to 1-second resolution.
