Side Mounted Heavy Duty High Temperature Level Switch

A. Product Overview

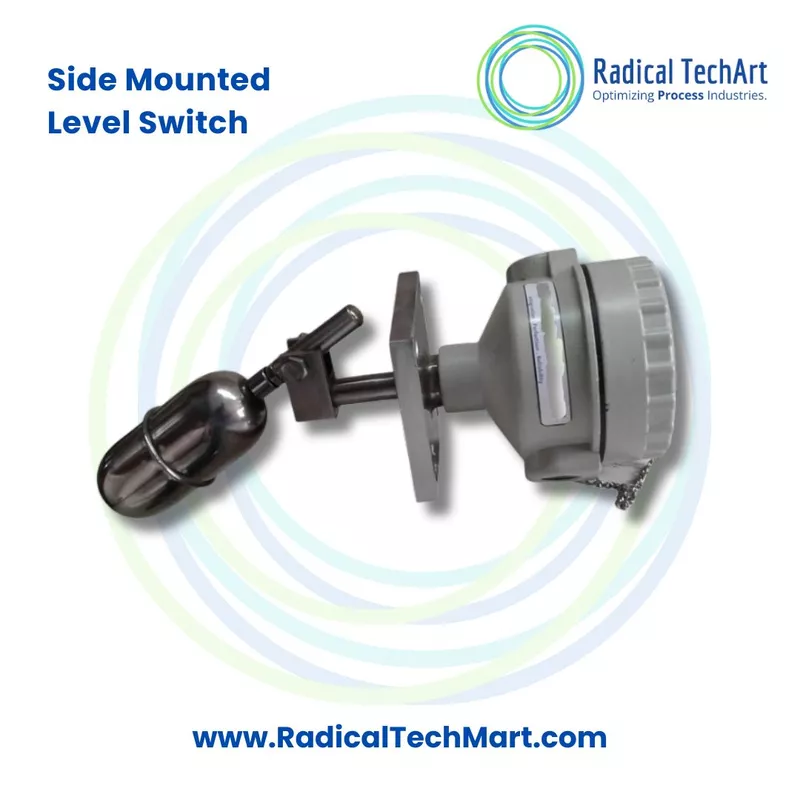

The Side Mounted Heavy Duty High Temperature Level Switch is used for point level detection in industrial tanks where liquids are stored or processed at high temperatures. It is mounted from the side of the tank and operates through a float mechanism that moves with the liquid level.

This level switch is suitable for applications where normal plastic or light duty level switches are not suitable due to high temperature, industrial environment, chemical exposure or heavy duty operation. The float and assembly are available in SS304 or SS316, making it suitable for water, oil, chemicals, hot liquids and process media.

The product includes a cast aluminium flame proof enclosure, ceramic terminal block for wire connection, and square flange mounting, which makes it suitable for demanding industrial installations.

B. Working Principle

The switch works on a simple float operated principle. A stainless steel float is fitted inside the tank from the side mounting point. As the liquid level rises or falls, the float moves along with the liquid level.

This float movement activates the internal switching mechanism and changes the contact position. The switch can provide Common, Normally Open and Normally Closed contact output. This signal can be used to control a pump, alarm, indicator, control panel or automation system.

When the liquid reaches the set level, the switch changes its output state. This helps detect high level, low level or specific point level conditions inside the tank.

C. Why It Is Used

This level switch is used where reliable liquid level control is required in high temperature and heavy duty industrial applications. It helps prevent tank overflow, dry running of pumps, process interruption and unsafe liquid level conditions.

It is especially useful where the application requires a strong metallic float switch instead of a compact plastic or miniature level switch. Because of its heavy duty construction and high temperature suitability, it can be used in applications such as boilers, oil tanks, chemical tanks, hot water tanks, hydraulic oil tanks, lubrication systems, process vessels and industrial storage tanks.

Key reasons for using this product:

Reliable level detection in high temperature liquid applications
Suitable for heavy duty industrial tanks and vessels
Helps protect pumps from dry running
Helps prevent overflow and material wastage
Useful for high level and low level alarm systems
Can be connected with control panels, alarms and automation systems
SS304 or SS316 float assembly improves durability
Ceramic terminal block supports high temperature wiring requirements
Cast aluminium flame proof enclosure supports industrial safety requirements

D. Suitable Buyers

This product is suitable for buyers who need a durable and high temperature level switch for industrial liquid level control.

Suitable buyers include:

Boiler manufacturers
Tank manufacturers
Chemical processing plants
Oil and lubricant industries
Hydraulic system manufacturers
Power plants
Water treatment plants
Wastewater treatment plants
Process equipment manufacturers
Industrial automation companies
Panel builders
OEM machine manufacturers
Maintenance departments
Engineering contractors
System integrators
Pharmaceutical plants
Food and beverage processing plants
Petrochemical plants

Frequently Asked Questions

1. What is a Side Mounted Heavy Duty High Temperature Level Switch?

A Side Mounted Heavy Duty High Temperature Level Switch is a float operated level switch installed on the side of a tank to detect liquid level in high temperature industrial applications.

2. Where is this level switch used?

It is used in hot liquid tanks, boilers, oil tanks, chemical tanks, process vessels, hydraulic systems, lubrication systems, water treatment plants and industrial storage tanks.

3. What is the operating temperature of this level switch?

As per the product details, the operating temperature is suitable up to 200 degree Celsius, making it useful for high temperature applications.

4. What material is used for the float and assembly?

The float and assembly are available in SS304 or SS316, depending on the application requirement and liquid compatibility.

5. What type of mounting does this level switch have?

This product comes with square flange mounting. The drawing shows an 85 mm by 85 mm square flange with 80 mm PCD and four mounting holes.

6. Does this switch provide Normally Open and Normally Closed contacts?

Yes. The product mentions ceramic terminal block connection for Common, Normally Open and Normally Closed wiring.

7. Can this level switch be used for boiler applications?

Yes. It is suitable for boiler tanks and high temperature liquid level detection, depending on pressure, temperature and media compatibility.

8. Can it be used for oil tanks?

Yes. It can be used for oil reservoirs, hydraulic oil tanks, lubrication oil tanks and other industrial oil storage applications.

9. Is this switch suitable for chemical tanks?

Yes, it can be used for chemical tanks when the selected wetted part material, such as SS304 or SS316, is compatible with the chemical media.

10. What is the maximum switching power?

The product details mention a maximum switching power of 50W.

11. What is the switching voltage range?

The switching voltage range mentioned is 0.05V to 250V.

12. What is the maximum carry current?

The maximum carry current mentioned is 2A max.

13. Why is a ceramic terminal block used?

A ceramic terminal block is used because it is more suitable for high temperature wiring conditions compared to standard plastic terminal blocks.

14. What is the benefit of a side mounted design?

A side mounted design is useful when top mounting is not possible or when the liquid level point needs to be detected from the side wall of the tank.

15. Is this product suitable for automation panels?

Yes. The contact output can be connected to alarms, pump control circuits, PLC panels, indicators and industrial automation systems.
