Smart Probes Refrigeration Set

A. Product Overview

The Testo Smart Probes AC and Refrigeration Test Kit, order number 0563 0002 02, is a compact professional measuring solution for refrigeration engineers, HVAC technicians and air conditioning service professionals.

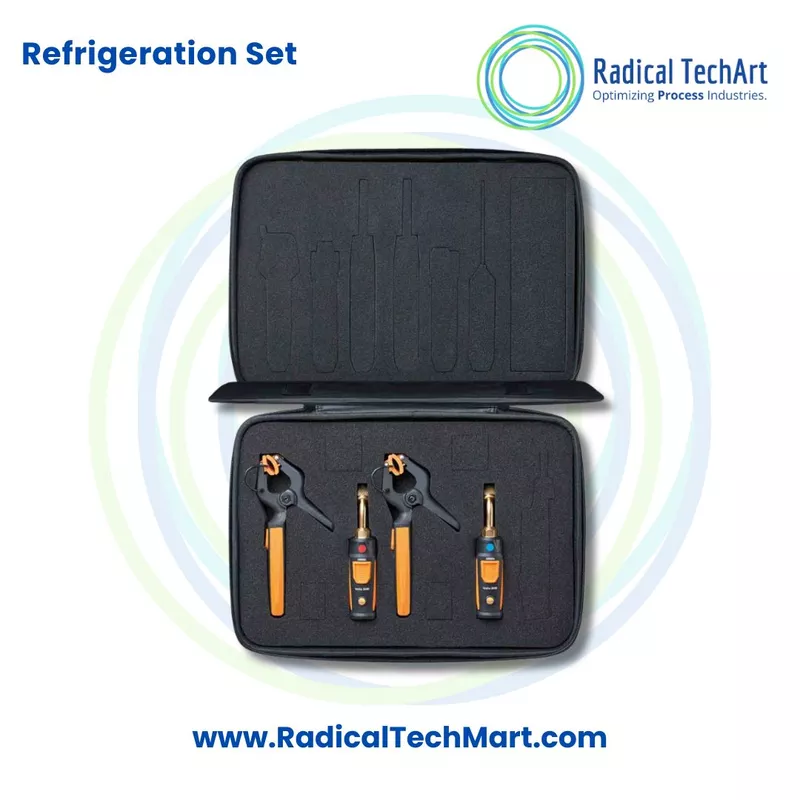

The kit contains:

• Two Testo 549i wireless high-pressure measuring instruments
• Two Testo 115i wireless clamp thermometers
• Testo HVAC softcase
• Batteries
• Calibration protocol

The Testo 549i probes measure refrigerant pressure directly at the system connection, while the Testo 115i clamp thermometers measure pipe surface temperature. Both instruments transmit measurement data wirelessly to a compatible smartphone or tablet through Bluetooth.

The Testo Smart Probes App can display pressure and temperature readings, automatically calculate evaporation and condensation temperatures, and support application-specific measurements such as superheating, target superheating, subcooling, heating performance and cooling performance.

More than 80 commonly used refrigerants are stored in the app, with refrigerant updates available when required. The hoseless connection method also helps reduce refrigerant loss during system testing.

Key Technical Specifications

Testo 115i Clamp Thermometer

• Sensor type: NTC
• Measuring range: minus 40 to 150 degrees Celsius
• Accuracy: plus or minus 1.3 degrees Celsius from minus 20 to 85 degrees Celsius
• Resolution: 0.1 degrees Celsius
• Battery life: approximately 150 hours
• Dimensions: 183 by 90 by 30 millimetres

Testo 549i High-Pressure Probe

• Sensor type: Pressure
• Measuring range: minus 1 to 60 bar
• Accuracy: 0.5 percent of final value
• Resolution: 0.01 bar
• Pressure connection: 7/16 inch UNF
• Maximum relative overload: 65 bar
• Battery life: approximately 150 hours
• Dimensions: 125 by 32 by 31 millimetres
• Suitable media: CFC, HFC, HCFC, nitrogen, water and carbon dioxide

The complete set operates with the Testo Smart Probes App on compatible Android and iOS devices with Bluetooth connectivity.

B. Working Principle

The Smart Probes Refrigeration Set works by measuring refrigerant pressure and pipe temperature simultaneously at the high-pressure and low-pressure sides of a refrigeration or air conditioning system.

The two Testo 549i pressure probes are connected directly to the system pressure ports. One probe can be installed on the low-pressure side and the other on the high-pressure side. Because the probes connect directly without conventional refrigerant hoses, the setup is quicker and refrigerant loss is reduced.

The two Testo 115i clamp thermometers are attached to the refrigerant pipes. The clamp sensors detect the surface temperature of the suction and liquid lines without requiring permanent installation.

All four Smart Probes transmit their readings through Bluetooth to the Testo Smart Probes App. The app combines the pressure and temperature measurements and automatically calculates important refrigeration parameters such as:

• Evaporation temperature
• Condensation temperature
• Superheating
• Target superheating
• Subcooling
• Heating performance
• Cooling performance

The readings can be displayed as numerical values, tables or charts. Technicians can also create measurement reports, add photographs and comments, and send reports by email in PDF or Excel format.

C. Why It Is Used

The Testo Smart Probes Refrigeration Set is used to improve the speed, accuracy and convenience of refrigeration and HVAC system testing.

Refrigeration System Commissioning

The kit helps technicians verify whether a newly installed refrigeration or air conditioning system is operating according to the required pressure and temperature conditions.

Superheating and Subcooling Measurement

Automatic superheating and subcooling calculations help determine whether refrigerant flow and refrigerant charge are suitable for efficient system operation.

Fault Detection

Pressure and temperature readings can help identify problems such as:

• Incorrect refrigerant charge
• Restricted refrigerant flow
• Faulty expansion valve operation
• Evaporator performance problems
• Condenser performance problems
• Abnormal suction pressure
• Abnormal discharge pressure
• Inadequate cooling or heating output

Low Refrigerant Loss

The hoseless design allows the Testo 549i probes to connect directly to the refrigeration system, reducing the quantity of refrigerant lost during testing.

Wireless Measurement

Bluetooth communication allows technicians to view readings from multiple measuring points on one smartphone or tablet. This is especially useful when the measuring points are widely separated.

Digital Documentation

The Testo Smart Probes App allows measurement data to be recorded, analysed and converted into professional service reports. This helps maintain proper commissioning, maintenance and customer service records.

Portable HVAC Testing

The compact probes and protective HVAC softcase make the set easy to carry between installation, service and maintenance locations.

D. Suitable Buyers

The Testo Smart Probes Refrigeration Set is suitable for:

• Refrigeration service technicians
• Air conditioning installation professionals
• HVAC maintenance engineers
• Heat pump service technicians
• Cold room maintenance companies
• Commercial refrigeration contractors
• Chiller service engineers
• Facility maintenance teams
• Industrial refrigeration technicians
• Refrigeration system commissioning engineers
• Appliance service centres
• HVAC equipment dealers
• Technical training institutes
• Refrigeration laboratories
• Building maintenance contractors

It is particularly useful for professionals who require wireless pressure and temperature measurements, automatic refrigerant calculations and digital service reports.

Frequently Asked Questions

1. What is included in the Testo Smart Probes Refrigeration Set?

The set includes two Testo 549i high-pressure probes, two Testo 115i clamp thermometers, batteries, a calibration protocol and a Testo HVAC softcase.

2. What is the order number of the Testo Smart Probes Refrigeration Set?

The order number is 0563 0002 02.

3. What systems can be tested with this refrigeration kit?

The kit is designed for servicing, installation, commissioning and fault detection on refrigeration systems, air conditioning systems and heat pumps.

4. What is the pressure range of the Testo 549i?

The Testo 549i has a measuring range of minus 1 to 60 bar, a resolution of 0.01 bar and a maximum relative overload of 65 bar.

5. What is the temperature range of the Testo 115i?

The Testo 115i clamp thermometer measures temperatures from minus 40 to 150 degrees Celsius.

6. Can the kit calculate superheating and subcooling?

Yes. The Testo Smart Probes App can automatically calculate superheating, target superheating and subcooling using the measured pressure and temperature values.

7. Does the kit require a separate display unit?

No. A compatible smartphone or tablet works as the display through the Testo Smart Probes App and Bluetooth connection.

8. How many Testo Smart Probes can be displayed in the app?

The Testo Smart Probes App can display readings from up to six compatible Testo Smart Probes simultaneously.

9. Does the app contain refrigerant data?

Yes. The app stores data for more than 80 commonly used refrigerants and supports refrigerant updates.

10. Does the kit reduce refrigerant loss?

Yes. The Testo 549i pressure probes can be connected directly to the system without conventional hoses, helping reduce refrigerant loss during testing.

11. Can measurement reports be created?

Yes. The app can create measurement reports with readings, photographs and comments. Reports can be sent by email in PDF or Excel format.

12. Can the set measure high-pressure and low-pressure sides simultaneously?

Yes. The two Testo 549i probes allow pressure measurement on both sides of the refrigeration circuit, while the two Testo 115i thermometers measure the corresponding pipe temperatures.

13. Is the set suitable for heat pump maintenance?

Yes. It can be used for testing and troubleshooting heat pumps, including pressure measurement, temperature measurement, superheating, subcooling, heating performance and cooling performance.

14. What batteries are used in the Smart Probes?

Each instrument uses three AAA batteries and provides an approximate battery life of 150 hours.

15. Is the Testo Smart Probes Refrigeration Set suitable for professional use?

Yes. It is intended for professional HVAC, refrigeration and air conditioning installation, commissioning, preventive maintenance and troubleshooting applications.
