Solid State Relay

Specifications:

1. Solid State Relay DX-16A DA/AA

• Input Control Voltage: 3-32V DC
• Output Voltage: 24-480V AC
• Output Current: 16A
• Trigger Current: 3mA
• Response Time: < 1ms
• Insulation Resistance: 1000MΩ
• Operating Temperature: -30°C to +80°C
• Mounting: DIN Rail
• Type: Zero-crossing SSR

2. Solid State Relay DX-25A DA/AA

• Input Control Voltage: 3-32V DC
• Output Voltage: 24-480V AC
• Output Current: 25A
• Trigger Current: 3mA
• Response Time: < 1ms
• Insulation Resistance: 1000MΩ
• Operating Temperature: -30°C to +80°C
• Mounting: DIN Rail
• Type: Zero-crossing SSR

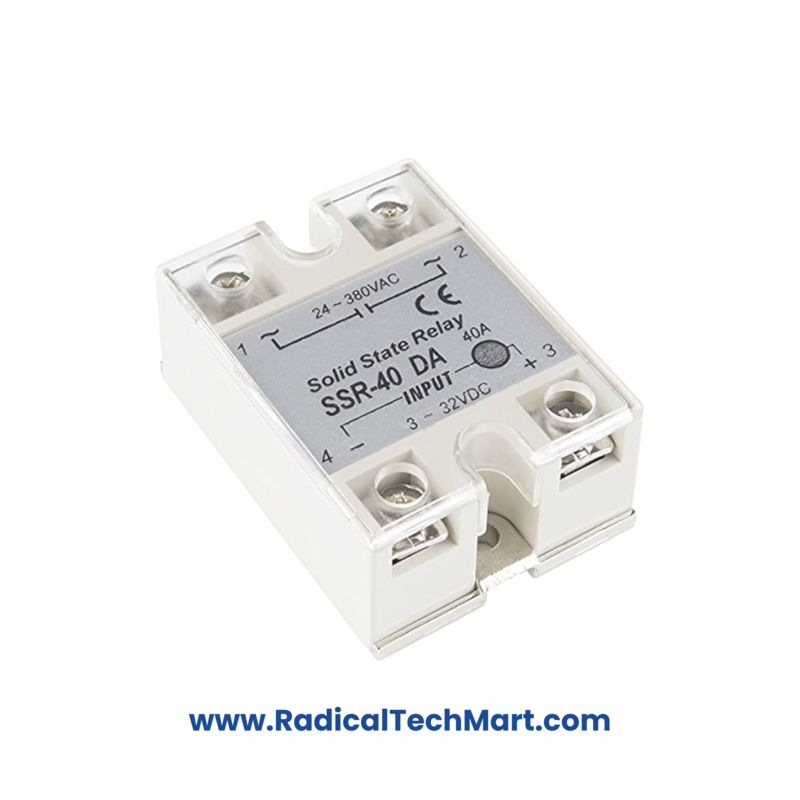

3. Solid State Relay DX-40A DA/AA

• Input Control Voltage: 3-32V DC
• Output Voltage: 24-480V AC
• Output Current: 40A
• Trigger Current: 3mA
• Response Time: < 1ms
• Insulation Resistance: 1000MΩ
• Operating Temperature: -30°C to +80°C
• Mounting: DIN Rail
• Type: Zero-crossing SSR

4. Solid State Relay DX-60A DA/AA

• Input Control Voltage: 3-32V DC
• Output Voltage: 24-480V AC
• Output Current: 60A
• Trigger Current: 3mA
• Response Time: < 1ms
• Insulation Resistance: 1000MΩ
• Operating Temperature: -30°C to +80°C
• Mounting: DIN Rail
• Type: Zero-crossing SSR

5. Solid State Relay DX-80A DA/AA

• Input Control Voltage: 3-32V DC
• Output Voltage: 24-480V AC
• Output Current: 80A
• Trigger Current: 3mA
• Response Time: < 1ms
• Insulation Resistance: 1000MΩ
• Operating Temperature: -30°C to +80°C
• Mounting: DIN Rail
• Type: Zero-crossing SSR

Product Details:

These Solid State Relays (SSR) are engineered to provide robust, silent operation for industrial automation systems. Unlike traditional mechanical relays, solid-state technology eliminates moving parts, increasing longevity and reliability. The relays in the DX Series (DX-16A to DX-80A) can handle various output current ratings from 16A to 80A, suitable for controlling heating elements, motors, lights, and other high-voltage loads in industrial applications.

Applications:

• Industrial machinery
• HVAC systems
• Heating control
• Motor control
• Automated systems requiring high precision control
• Lighting systems
