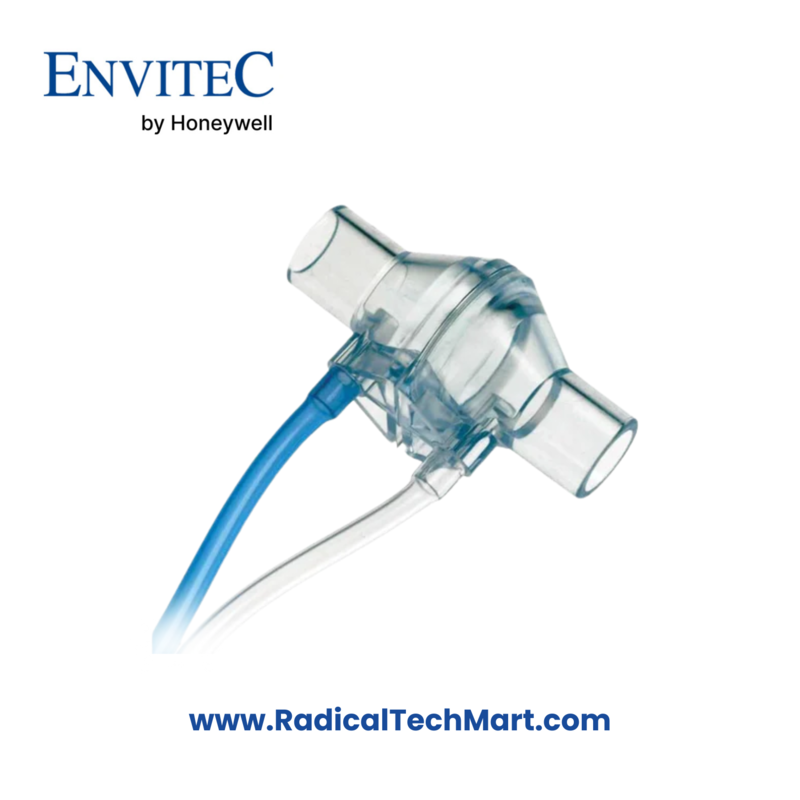

SpiroQuant H

The Envitec by Honeywell SpiroQuant H is a disposable flow sensor designed for measuring breathing gas flow in adult applications. Below are its key specifications:

• Measuring Principle: Differential pressure converter.

• Application: Single patient use in adult respiratory applications.

• Flow Range: 0 to 100 standard liters per minute (slpm).

• Accuracy: ±15% over the measuring range.

• Flow Resistance: Approximately 1.0 mbar at 60 slpm.

• Operating Temperature: 0°C to +50°C.

• Operating Humidity: 5% to 95% relative humidity, non-condensing.

• Operating Pressure: 570 to 1200 hPa (requires external pressure compensation).

• Storage Temperature: -20°C to +70°C.

• Storage Humidity: 5% to 95% relative humidity, non-condensing.

• Storage Time: Up to 5 years.

• Dead Space: 11 cm³ (without cone adaptation).

• Weight: Approximately 11 grams (sensor without tubes); 51 grams (sensor with tubes).

• Materials:

  • Housing: MABS.
  • Inner parts: PET.
  • Tubes: Medical-grade PVC, 1.8 meters in length, with diameters of 3.0 mm (±0.1 mm) and 4.6 mm.

• Compliance: RoHS compliant; biocompatible components.

• Certifications: Manufactured under a certified quality management system according to EN ISO 13485.

The SpiroQuant H sensor is compatible with Hamilton flow sensor PN 279331 and is intended for single patient use; re-use, cleaning, or disinfection is not permitted.
