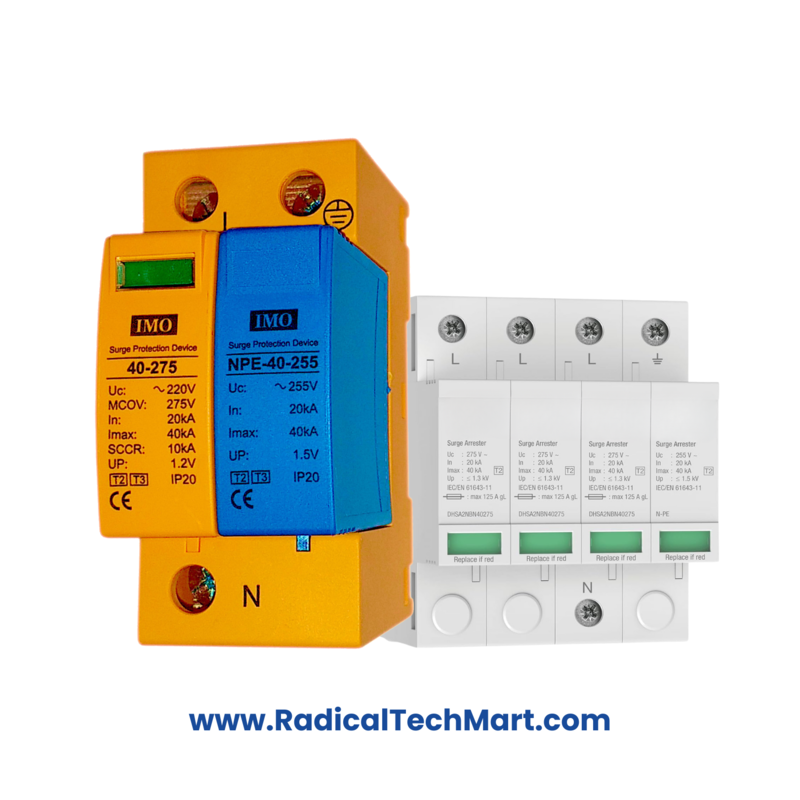

Surge Protecting Device
₹550.00 - ₹1,015.00
Product Details
General Specifications for DX-SPD Surge Protecting Devices:
- Operating Voltage:
- 320V AC (for 2-Pole and 4-Pole AC models)
- 600V DC (2-Pole DC model)
- 1000V DC (3-Pole DC model)
- Nominal Discharge Current (In): 20 kA
- Maximum Discharge Current (Imax): 40 kA
- Response Time: ≤ 25 ns
- Protection Mode: Common and differential modes
- Mounting Type: DIN Rail Mountable
- Indication: Visual indicator for surge status
- Standards Compliance: IEC 61643-11
Product Details
1. DX-SPD 2 Pole 320V AC:
Application: Single-phase AC systemsFeatures: Compact design, high surge capacity, and quick response time
Usage: Homes, offices, and industrial systems for protecting appliances
2. DX-SPD 4 Pole 320V AC:
Application: Three-phase AC systemsFeatures: Advanced lightning protection, durable, and easy installation
Usage: Commercial and industrial power systems
3. DX-SPD 2 Pole 600V DC:
Application: DC systems such as solar PV arraysFeatures: Effective against transient overvoltage in solar setups
Usage: Solar inverters, battery banks, and other DC applications
4. DX-SPD 3 Pole 1000V DC:
Application: High-voltage DC circuitsFeatures: Superior surge protection for large-scale solar farms or industrial DC systems
Usage: Solar energy plants and industrial DC power lines
