Product Details

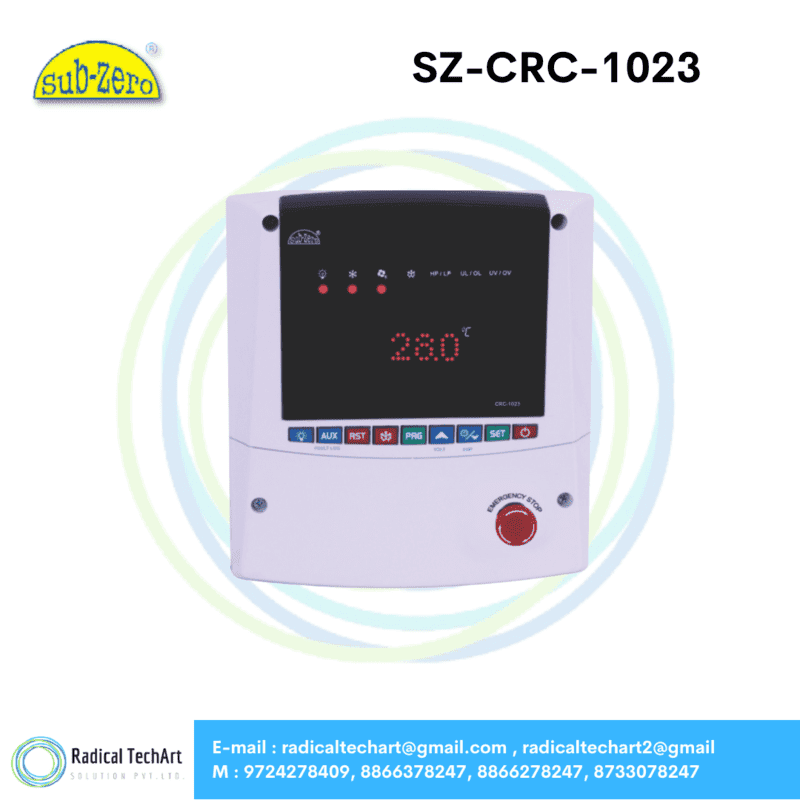

COLD ROOM CONTROLLER WITH 20A RELAY CRC-1023
5×7 (0.56″) Dot Matrix LED Display.
HP, LP, AUX, Door Open fault.
Alarm (Buzzer) : 10V, 10mA.
Serial communication through RS485
Internal buzzer available
5×7 (0.56″) Dot Matrix LED Display.
HP, LP, AUX, Door Open fault.
Alarm (Buzzer) : 10V, 10mA.
Serial communication through RS485
Internal buzzer available
COLD ROOM CONTROLLER WITH 20A RELAY CRC-1023
Display 3 Digit 0.56” Dot Matrix LED Display Probe Inputs NTC Digital Inputs HP, LP, AUX, DOOR Relay Output Compressor : 20(8)A
Defrost : 20(8)A
Evaporator : 8(3)A
Light : 5A
Alarm : 5A Buzzer Yes Serial Output Yes Power Supply 230Vac Standard Temperature Range -50.0°C to +50.0°C Size 200 x227mm Mounting Type Wall Mount Application Cold Room Controller
| Display | 3 Digit 0.56” Dot Matrix LED Display |
| Probe Inputs | NTC |
| Digital Inputs | HP, LP, AUX, DOOR |
| Relay Output | Compressor : 20(8)A Defrost : 20(8)A Evaporator : 8(3)A Light : 5A Alarm : 5A |
| Buzzer | Yes |
| Serial Output | Yes |
| Power Supply | 230Vac Standard |
| Temperature Range | -50.0°C to +50.0°C |
| Size | 200 x227mm |
| Mounting Type | Wall Mount |
| Application | Cold Room Controller |
