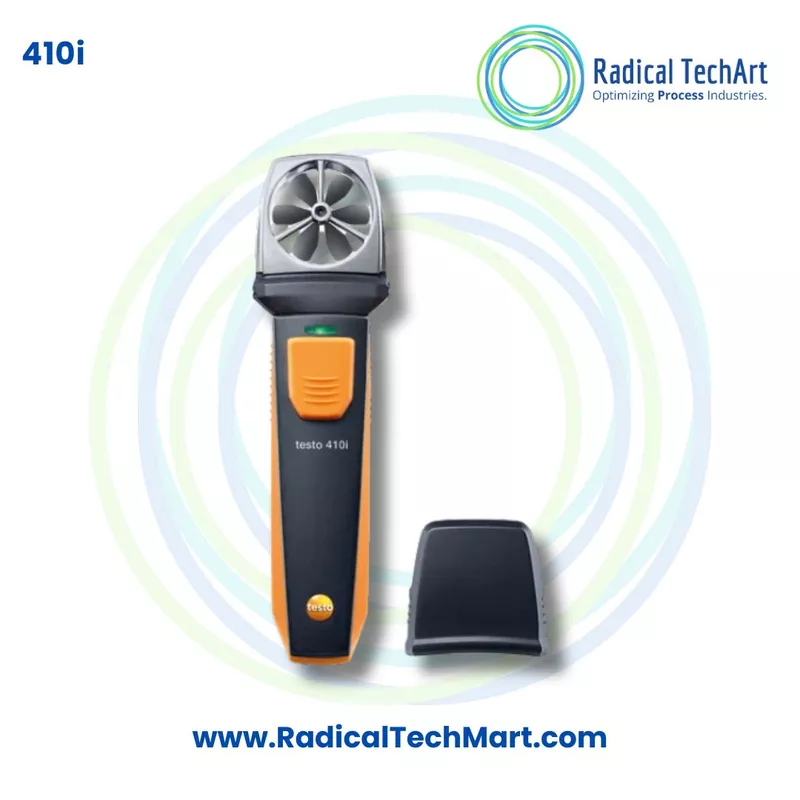

Testo 410i Wireless Vane Anemometer Smart Probe

A. Product Overview

The Testo 410i is a wireless vane anemometer designed for professional airflow measurement in ventilation and air-conditioning applications. It combines a vane sensor for air velocity measurement with an NTC sensor for temperature measurement.

The instrument does not have a conventional display. Measurements are transmitted through Bluetooth to a compatible smartphone or tablet running the Testo Smart Probes App. The app displays readings as numerical values, tables or graphs and allows users to save, analyse and document measurement results.

By entering the dimensions of a ventilation outlet or duct, the app automatically calculates volume flow. Users can also perform timed averaging and multipoint averaging to obtain a more representative airflow measurement across larger outlets.

Several Testo Smart Probes can be connected simultaneously, making the Testo 410i useful for balancing multi-outlet ventilation systems and comparing airflow conditions at different locations.

Main Features

• Measures air velocity
• Measures volume flow
• Measures air temperature
• Wireless Bluetooth communication
• Operates through the Testo Smart Probes App
• Automatic volume flow calculation
• Timed mean value calculation
• Multipoint mean value calculation
• Supports simultaneous measurement using multiple Smart Probes
• Displays readings as values, tables and graphs
• Generates customised measurement reports
• Saves reports as PDF or Excel files
• Allows reports to be shared by email
• Suitable for Android and iOS devices
• Compact and portable design
• Approximately 200 hours of battery life
• Supplied with three AAA batteries and a calibration certificate

Technical Highlights

• Air velocity range: 0 to 6,000 feet per minute
• Air velocity accuracy: plus or minus 40 feet per minute and 2 percent of measured value within the specified range
• Volume flow range: 0 to 99,999 cubic feet per minute
• Temperature range: minus 4 to 140 degrees Fahrenheit
• Temperature accuracy: plus or minus 0.9 degrees Fahrenheit
• Vane diameter: approximately 1.6 inches
• Operating temperature: minus 4 to 122 degrees Fahrenheit
• Battery type: three AAA batteries
• Battery life: approximately 200 hours
• Order number: 0560 1410

B. Working Principle

The Testo 410i uses a rotating vane sensor to measure airflow.

When air passes through the vane, it causes the blades to rotate. The rotational speed changes according to the velocity of the moving air. The instrument converts this rotational movement into an air velocity measurement.

An integrated NTC sensor measures the temperature of the air passing through the instrument. The measured air velocity and temperature values are transmitted wirelessly to the Testo Smart Probes App.

For volume flow measurement, the user enters the dimensions or area of the duct, ventilation grille or air outlet into the app. The app combines the measured air velocity with the entered outlet area to calculate the volume of air moving through the system.

For outlets with uneven airflow, the user can take readings at several points. The app then calculates a multipoint average. Timed averaging can also be used to calculate an average reading over a selected measurement period.

Several Testo 410i instruments or compatible Testo Smart Probes can be viewed simultaneously in the app, helping users compare outlets and balance ventilation systems.

C. Why It Is Used

The Testo 410i is used to verify whether ventilation and air-conditioning systems are delivering the required airflow.

Air velocity and volume flow measurements are important because insufficient or excessive airflow can affect indoor comfort, cooling performance, energy consumption and ventilation effectiveness.

The instrument is commonly used for:

• Measuring airflow at ventilation grilles
• Measuring airflow at supply and return air outlets
• Calculating volume flow
• Checking air-conditioning system performance
• Testing ventilation system operation
• Balancing airflow between multiple outlets
• Checking HVAC system commissioning results
• Comparing airflow before and after maintenance
• Identifying weak airflow from an outlet
• Verifying airflow after filter replacement
• Checking fan and blower performance at outlets
• Recording airflow and temperature measurements
• Preparing HVAC inspection reports
• Documenting service and maintenance work

Its compact wireless design allows technicians to position the probe at the measurement point while viewing readings from a convenient distance on a smartphone or tablet.

D. Suitable Buyers

The Testo 410i Wireless Vane Anemometer is suitable for:

• HVAC technicians
• Air-conditioning service engineers
• Ventilation contractors
• HVAC commissioning engineers
• Building maintenance teams
• Facility management companies
• Indoor air quality professionals
• Energy auditors
• Mechanical contractors
• Building services engineers
• Refrigeration and air-conditioning contractors
• Cleanroom maintenance teams
• Industrial maintenance engineers
• Testing and balancing professionals
• Commercial building operators
• Hospitals and healthcare facilities
• Hotels and shopping centres
• Laboratories
• Manufacturing facilities
• Educational institutions
• HVAC equipment dealers
• Industrial instrumentation suppliers

Frequently Asked Questions

1. What does the Testo 410i measure?

The Testo 410i measures air velocity and air temperature. It also calculates volume flow through the Testo Smart Probes App.

2. Is the Testo 410i a wireless anemometer?

Yes. It transmits measurement data to a smartphone or tablet through Bluetooth.

3. Does the Testo 410i have a display?

The instrument is designed for smartphone operation. Measurement values are viewed through the Testo Smart Probes App.

4. Which app is used with the Testo 410i?

The instrument works with the Testo Smart Probes App.

5. Can the Testo 410i measure volume flow?

Yes. The app calculates volume flow after the user enters the dimensions or area of the ventilation outlet or duct.

6. Where can the Testo 410i be used?

It can be used at ventilation grilles, air-conditioning outlets, supply air diffusers, return air outlets and other HVAC airflow measurement points.

7. Is the Testo 410i suitable for HVAC applications?

Yes. It is specifically designed for ventilation, air-conditioning, airflow testing and HVAC system balancing applications.

8. Can it measure air temperature?

Yes. It includes an NTC temperature sensor for measuring air temperature.

9. What is the air velocity measuring range?

The stated measuring range is 0 to 6,000 feet per minute.

10. What is the volume flow range?

The stated volume flow range is 0 to 99,999 cubic feet per minute.

11. Can the Testo 410i calculate average readings?

Yes. The app supports timed averaging and multipoint averaging.

12. What is multipoint averaging?

Multipoint averaging combines measurements taken at several points across an outlet or duct to produce a more representative average airflow value.

13. What is timed averaging?

Timed averaging calculates the average airflow over a selected measurement period. It is useful when the airflow fluctuates.

14. Can multiple Testo Smart Probes be connected simultaneously?

Yes. The app can remotely display measurements from multiple compatible Smart Probes. This is useful for comparing outlets and balancing ventilation systems.

15. Can the measurement results be shown as graphs?

Yes. The Testo Smart Probes App can display measurement data as numerical readings, tables and graphs.

16. Can the Testo 410i generate reports?

Yes. The app can create customised reports containing measurement data, photos and comments.

17. Can reports be exported?

Yes. Measurement results can be saved as PDF or Excel files and shared by email.

18. Does the Testo 410i work with Android and iOS?

Yes. The instrument is designed for use with compatible Android and Apple iOS smartphones and tablets.

19. What batteries does the Testo 410i use?

It uses three AAA batteries.

20. What is the approximate battery life?

The specified battery life is approximately 200 hours.

21. What is included with the Testo 410i?

The standard package includes the Testo 410i Bluetooth vane anemometer, three AAA batteries and a calibration certificate.

22. What is the order number of the Testo 410i?

The Testo order number is 0560 1410.

23. Can it be used for ventilation system balancing?

Yes. Multiple outlets can be measured and compared to identify airflow differences and assist with system balancing.

24. Can the Testo 410i measure airflow inside a duct?

It can be used for suitable duct and outlet airflow measurements. The user must enter the correct cross-sectional dimensions into the app for volume flow calculation.

25. Is air density correction required?

According to the product datasheet, no separate air density correction is required because of the instrument’s design.
