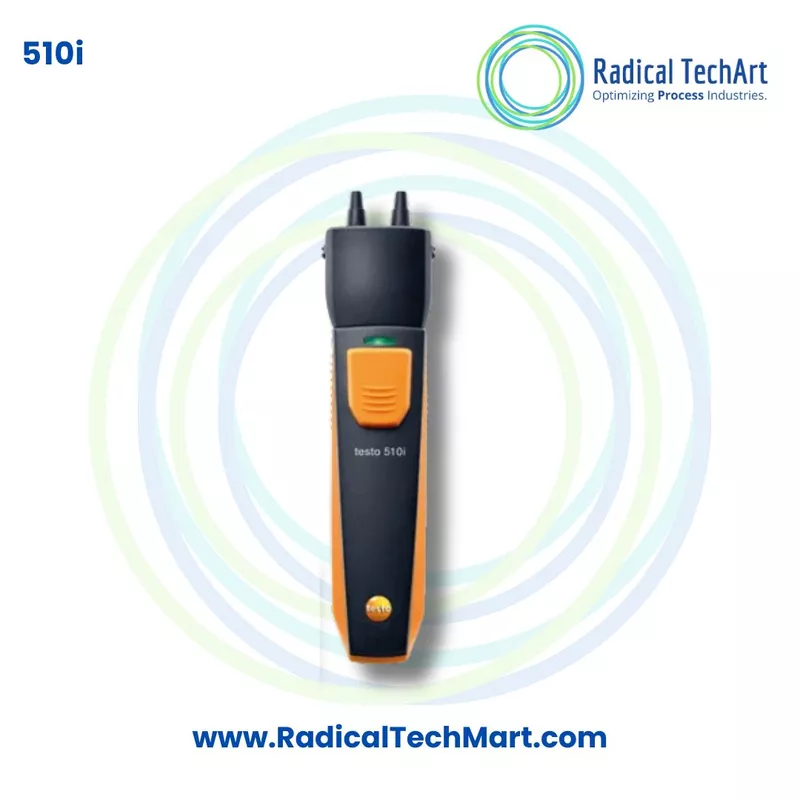

Testo 510i Differential Pressure Meter with Smartphone Operation

A. Product Overview

The Testo 510i Differential Pressure Measuring Instrument is part of the Testo Smart Probes series. It is designed for technicians who need a portable and convenient solution for measuring low differential pressure in heating, ventilation, air-conditioning and gas systems.

Unlike a conventional differential pressure gauge with an integrated display, the Testo 510i uses a compatible smartphone or tablet as its display and operating interface. Measurement values are transferred through Bluetooth to the Testo Smart App, where users can view readings, calculate timed and multi-point averages, perform pressure-drop tests and generate digital reports.

The measuring instrument has a pressure range from minus 150 to 150 hPa and a resolution of 0.01 hPa. It is supplied with a hose set, adapters, batteries and a calibration protocol. Its magnetic fixture allows it to be attached securely to suitable metal surfaces during testing.

Main Features

• Differential pressure measuring range from minus 150 to 150 hPa
• Resolution of 0.01 hPa
• Bluetooth communication with smartphones and tablets
• Operation through the Testo Smart App
• Measurement of gas flow and static pressure
• Pressure-drop testing with alarm function
• Timed and multi-point mean value calculation
• Measurement results displayed as diagrams or tables
• PDF and Excel report generation
• Magnetic fixture for convenient attachment
• Compact dimensions of 148 x 36 x 23 mm
• Battery life of approximately 150 hours
• Compatible with iOS and Android devices

B. Working Principle

The Testo 510i works by measuring the pressure difference between two connected measurement points. Its two pressure connections are attached to the required system using suitable hoses.

One connection measures the pressure at the first point, while the other measures the pressure at the second point. The internal differential pressure sensor calculates the difference between these two pressure values.

The measured differential pressure is converted into a digital signal and transmitted through Bluetooth to the Testo Smart App. The smartphone or tablet then functions as the display and control unit.

Through the app, the user can:

• View live differential pressure readings
• Calculate timed average values
• Calculate multi-point average values
• Perform pressure-drop tests
• Configure alarm limits
• Display measurements in graphical or tabular form
• Add photographs and comments to reports
• Export reports in PDF or Excel format
• Send measurement reports by email

For pressure-drop testing, the instrument can be connected before and after a filter, ventilator or pipeline section. The difference between the two measurement points indicates the pressure loss across the tested component.

C. Why It Is Used

The Testo 510i is used to check whether HVAC, ventilation, heating and gas systems are operating correctly and efficiently.

Filter Pressure-Drop Measurement

As air passes through a filter, the filter creates resistance. A dirty or blocked filter produces a higher pressure drop. The Testo 510i helps technicians identify when a filter requires cleaning or replacement.

Ventilator and Fan Testing

The instrument can measure pressure differences across ventilators and fans. This helps technicians evaluate airflow performance and confirm whether the equipment is operating within the required conditions.

Gas Pipe Pressure-Drop Testing

The Testo 510i can be used to measure pressure loss in gas pipes. This supports installation checks, servicing and troubleshooting of gas distribution systems.

Static Pressure Measurement

Static pressure measurement is important for evaluating ventilation ducts, air-handling systems and heating equipment. The instrument allows technicians to measure and record static pressure conveniently.

Digital Documentation

The Testo Smart App reduces the need for handwritten readings. Measurement values can be stored, analysed and converted into professional reports containing customer information, photographs and comments.

Convenient Field Operation

Its compact size, magnetic fixture and wireless smartphone operation make it easier to use in plant rooms, equipment cabinets, ventilation systems and other restricted working areas.

D. Suitable Buyers

The Testo 510i is suitable for:

• HVAC service technicians
• Heating system technicians
• Ventilation system installers
• Air-conditioning contractors
• Gas appliance service engineers
• Building maintenance teams
• Facility management companies
• Industrial maintenance technicians
• Commissioning engineers
• Energy auditors
• Filter maintenance professionals
• Air-handling unit service providers
• Mechanical contractors
• Technical training institutes
• HVAC equipment dealers and distributors

It is particularly useful for professionals who require portable differential pressure measurement combined with smartphone-based analysis and digital reporting.

Technical Specifications

Frequently Asked Questions

1. What is the Testo 510i used for?

The Testo 510i is used for measuring differential pressure, gas flow pressure, static pressure, pressure drops across filters and ventilators, and pressure loss in gas pipes.

2. Does the Testo 510i have a built-in display?

No. The Testo 510i uses a compatible smartphone or tablet as its display. Measurement values are shown through the Testo Smart App.

3. What is the measuring range of the Testo 510i?

The instrument has a differential pressure measuring range from minus 150 to 150 hPa.

4. How does the Testo 510i connect to a smartphone?

It connects wirelessly through Bluetooth and operates using the Testo Smart App.

5. Can the Testo 510i measure filter pressure drop?

Yes. It can measure the pressure difference before and after a filter. This helps determine whether the filter is clean, partially blocked or due for replacement.

6. Can it be used for gas pipe testing?

Yes. The Testo 510i is suitable for pressure-drop measurements on gas pipes.

7. Can the instrument create measurement reports?

Yes. The Testo Smart App can create reports containing measurement values, photographs and comments. Reports can be exported in PDF or Excel format and sent by email.

8. Does the Testo Smart App provide an alarm function?

Yes. The app includes a dedicated pressure-drop measurement menu with an alarm function.

9. What is included with the Testo 510i?

The standard package includes the Testo 510i differential pressure gauge, a hose set with 4 mm and 5 mm hoses, an adapter, batteries and a calibration protocol.

10. How long does the battery last?

The stated battery life is approximately 150 hours under normal operating conditions.

11. Is the Testo 510i suitable for HVAC applications?

Yes. It is suitable for heating, ventilation and air-conditioning installation, commissioning, servicing, testing and preventive maintenance.

12. Can the Testo 510i calculate average readings?

Yes. The Testo Smart App can calculate timed mean values and multi-point mean values.

13. Can the measurement values be displayed as a graph?

Yes. Measurement data can be presented in diagram form or tabular form through the Testo Smart App.

14. What mobile operating systems are supported?

The datasheet specifies compatibility with iOS 11.0 or newer and Android 6.0 or newer. The mobile device must support Bluetooth 4.0.

15. Is the Testo 510i easy to carry?

Yes. Its compact dimensions and lightweight Smart Probe design make it easy to transport and use during field service work.
