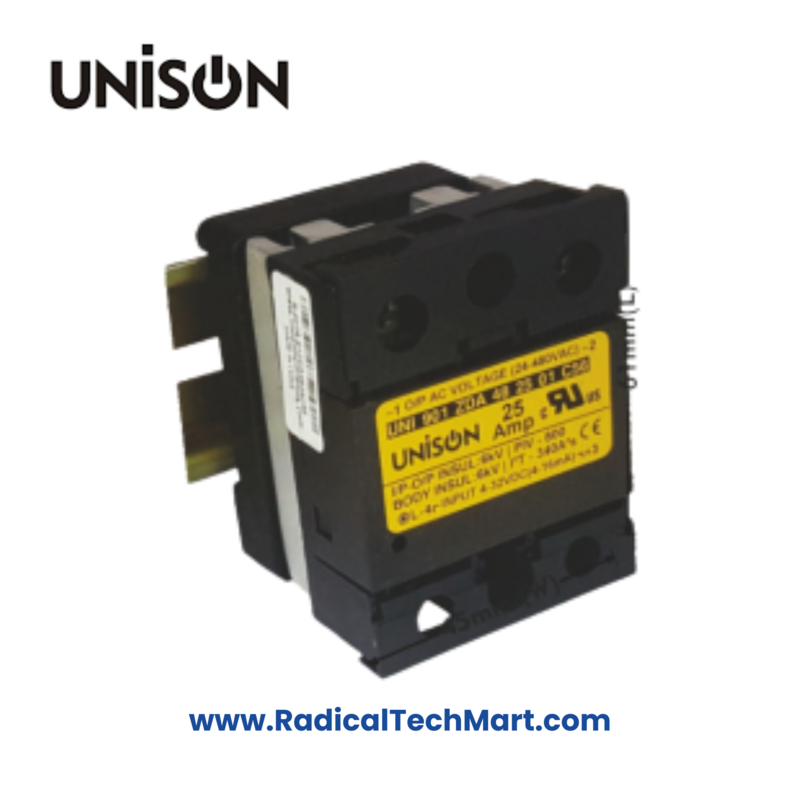

UNI 901 ZDA 48 25 01 AL5

UNI 901 ZDA 48 25 01 AL5

Write a review
₹310.00 ₹375.00
Add Note
Quantity
Buy Now
Product Details
  • Product Name: UNI 901 ZDA 48 25 01 AL5
  • Input Voltage: 4-32V DC
  • Input Current: 4-16mA (LED Indicator)
  • Output Voltage: 24-480V AC (47-63 Hz)
  • Peak Inverse Voltage (PIV): 800V or 1200Vpk (Zero Cross Over)
  • Temperature Withstand Capacity: Up to 150°C
  • Body Insulation: 6kV for 1 minute
  • Input to Output Insulation: 8kV for 1 minute
  • Short Circuit Current Rating: 10 kA for <3ms
  • Current Capacity: 25 Amps
