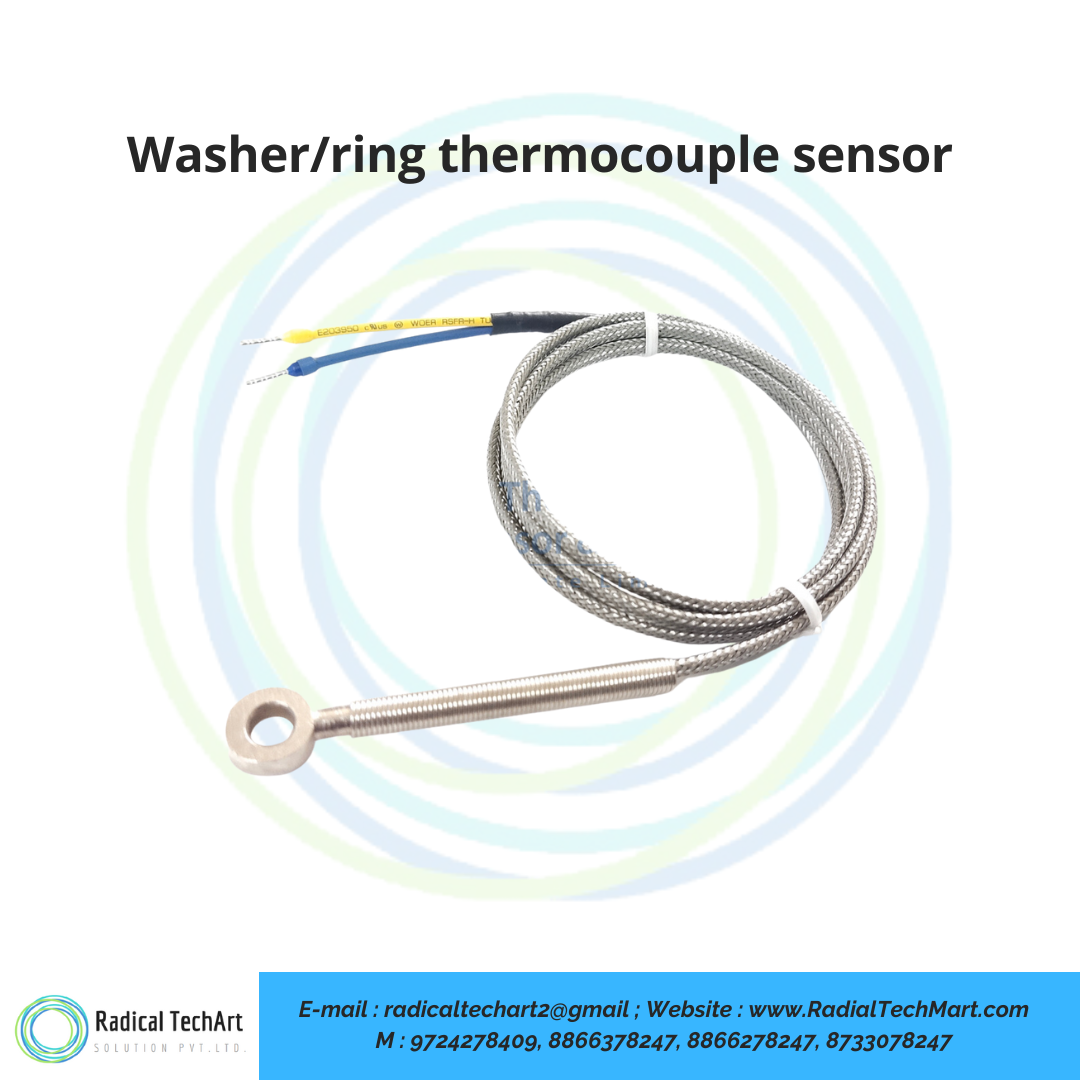

Washer Ring Thermocouple Sensor for Surface Temperature Measurement

A. Product Overview

Washer ring thermocouple sensor is a specialized thermocouple used for surface temperature measurement. It is designed in the form of a thin metal washer or ring, with a thermocouple sensing junction built into the washer body.

This sensor is normally installed between two flat surfaces, such as between a bolt and a metal plate, machine body, bearing housing, engine part or process equipment surface. When the washer is tightened or compressed, the sensing area makes direct contact with the surface and measures temperature accurately.

Washer ring thermocouples are commonly available in J Type, K Type, T Type, E Type and RTD options. They can be supplied with different ring inner diameters such as 6 mm or 8 mm, outer diameter around 12 mm, wire length from 0.5 meter to 10 meter and grounded or ungrounded junction options.

They are suitable for industrial applications where normal probe-type sensors are difficult to install or where direct surface contact is required.

B. Working Principle

Washer ring thermocouple sensor works on the thermoelectric principle. It contains two dissimilar metal wires joined together at the sensing junction. When this junction experiences heat, it generates a small voltage signal.

This voltage changes according to the temperature at the contact point. The signal is then sent to a temperature controller, indicator, PLC, data logger or monitoring system, where it is converted into a temperature reading.

In washer type thermocouples, the sensing junction is embedded inside or near the center of the washer. When the washer is fixed under a bolt or compressed between two metal surfaces, the junction receives heat directly from the surface. This helps provide stable and practical surface temperature measurement.

Grounded junction provides faster response because the sensing junction has better thermal contact with the washer body. Ungrounded junction provides better electrical isolation and is useful where electrical noise can affect the signal.

C. Why It Is Used

Washer ring thermocouple sensors are used when temperature needs to be measured from a surface without drilling deep holes or using bulky probes. The ring design makes installation simple because it can be mounted directly under a bolt or between two flat metal parts.

It is used because it helps in:

Monitoring surface temperature of machines and equipment
Measuring bearing housing temperature
Checking engine and motor temperature
Monitoring metal plate and structural temperature
Measuring process equipment surface temperature
Providing direct contact temperature measurement
Easy installation and removal during maintenance
Temporary or permanent temperature monitoring
Reducing installation complexity compared to probe sensors
Supporting process control and safety monitoring

This type of sensor is preferred when the application requires a compact, bolt-mounted and easy-to-fit temperature sensor.

D. Suitable Buyers

Washer ring thermocouple sensors are suitable for:

Machine manufacturers
Industrial maintenance teams
Bearing and motor monitoring users
Engine testing and maintenance teams
Process plant maintenance departments
Plastic machinery users
Packaging machinery manufacturers
Panel builders and automation engineers
Temperature controller users
Testing and calibration teams
OEM machine builders
Industrial spare part dealers
Manufacturing plants requiring surface temperature monitoring

This product is especially useful for buyers who need surface temperature measurement on bolts, bearings, engines, metal plates, machinery, equipment and process control systems.

FAQ

1. What is a washer ring thermocouple sensor?

A washer ring thermocouple sensor is a surface temperature sensor designed in washer form. It is mounted under a bolt or between flat surfaces to measure temperature through direct contact.

2. Where is a washer type thermocouple used?

It is used in machinery, bearings, engines, motors, metal plates, process equipment, industrial surfaces and locations where probe-type sensors are difficult to install.

3. How does a washer ring thermocouple measure temperature?

The thermocouple junction inside the washer detects heat from the surface. This creates a small voltage signal, which is converted into a temperature reading by a controller, indicator or monitoring system.

4. Why is the ring shape useful?

The ring shape allows the sensor to be mounted under a bolt or between two surfaces. This provides firm contact with the surface and helps improve temperature measurement stability.

5. What thermocouple types are available?

Common options include J Type, K Type, T Type and E Type thermocouples. RTD options can also be supplied depending on application needs.

6. What is the temperature range of washer ring thermocouple sensors?

The typical temperature range can be from -50°C to 600°C, depending on thermocouple type, cable insulation and sensor construction.

7. What ring sizes are commonly available?

Common ring inner diameter options include 6 mm and 8 mm, with outer diameter around 12 mm. Custom sizes can also be supplied as per bolt size and application.

8. Can it be used for bearing temperature monitoring?

Yes, washer ring thermocouples are commonly used for bearing temperature monitoring because they can be mounted near bearing housings and machine surfaces.

9. Can it be used for engine temperature monitoring?

Yes, it can be used for engine temperature monitoring where surface temperature needs to be checked from bolts, covers or metal contact points.

10. What is the difference between grounded and ungrounded junction?

Grounded junction gives faster response because the junction is connected to the metal body. Ungrounded junction provides better electrical isolation and is useful where electrical interference may be present.

11. Is washer ring thermocouple easy to install?

Yes, it is easy to install. It can be fixed under a bolt, placed between flat surfaces or mounted using a suitable compression arrangement.

12. Can wire length be customized?

Yes, washer ring thermocouples can be supplied with different wire lengths such as 0.5 meter, 1 meter, 2 meter, 5 meter and 10 meter as per installation requirement.
