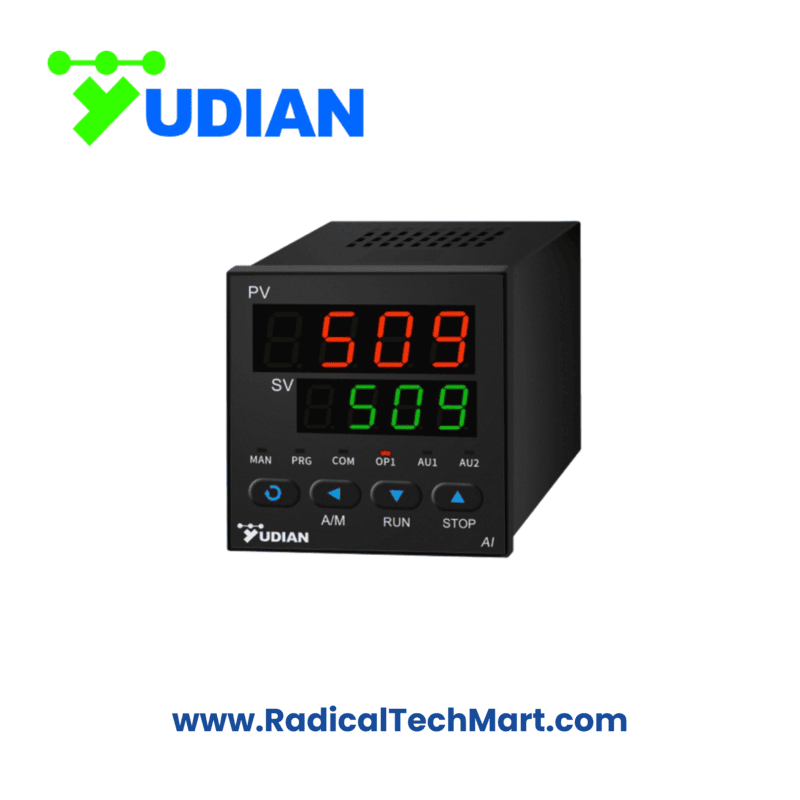

Yudian AI-509 (48*48mm)

A. Product Overview

The Yudian AI-509 Temperature Controller is a digital PID controller used to maintain process temperature with high accuracy and stable control performance. It is designed for industrial heating and cooling applications where precise temperature regulation is required.

This controller supports multiple sensor inputs such as K, S, R, E, J, N thermocouple and Pt100 RTD. It has a clear dual display that shows the process value and set value, making it easy for operators to monitor and adjust temperature settings.

The AI-509 is available in different panel sizes such as 96 x 96 mm, 72 x 72 mm, 48 x 48 mm, 48 x 96 mm and 96 x 48 mm, which makes it suitable for different control panel designs. Output options include relay output, SSR voltage output, TRIAC output, thyristor trigger output and linear current output depending on the selected model configuration.

It is commonly used in plastic machinery, food machinery, packaging machinery, industrial kilns, furnaces and environmental testing equipment.

B. Working Principle

The Yudian AI-509 works by continuously reading the temperature from a connected thermocouple or Pt100 sensor. The measured temperature is shown as the process value on the upper display, while the desired temperature setting is shown as the set value on the lower display.

When the measured temperature is lower or higher than the set value, the controller operates the output according to the selected control mode.

In On-Off control mode, the controller switches the output on or off based on the temperature difference and hysteresis setting. This mode is simple and suitable for basic heating or cooling applications.

In AI PID control mode, the controller uses an artificial intelligence control algorithm with auto tuning. During auto tuning, the controller studies the heating or cooling behavior of the process and calculates suitable PID values. This helps reduce overshoot and improves temperature stability.

The controller can drive heaters, contactors, SSRs, thyristors or other control elements depending on the output module selected. Alarm functions can also be configured for high limit, low limit, deviation high and deviation low temperature conditions.

C. Why It Is Used

The Yudian AI-509 PID Temperature Controller is used when a process requires stable and accurate temperature control. It helps maintain the required temperature automatically and reduces manual adjustment.

It is useful because it:

• Maintains accurate temperature in industrial processes
• Supports multiple thermocouple and Pt100 sensor inputs
• Provides On-Off control and AI PID control
• Reduces overshoot through artificial intelligence auto tuning
• Improves process consistency and product quality
• Supports relay, SSR, TRIAC, thyristor and current output options
• Allows alarm configuration for process safety
• Fits easily into different control panel sizes
• Works with ovens, furnaces, heaters, machines and testing equipment

For industries where temperature stability affects product quality, heating efficiency or machine performance, the AI-509 provides a practical and cost-effective control solution.

D. Suitable Buyers

The Yudian AI-509 PID Temperature Controller is suitable for:

• Plastic machinery manufacturers
• Packaging machine manufacturers
• Food processing equipment manufacturers
• Industrial oven manufacturers
• Furnace manufacturers
• Kiln manufacturers
• Environmental test chamber manufacturers
• Control panel builders
• Automation system integrators
• Maintenance engineers
• Electrical contractors
• Industrial machine builders
• Process control equipment suppliers
• OEM machine manufacturers
• Factory purchase departments
• Resellers and industrial product traders

This controller is a good choice for buyers looking for an economical, reliable and configurable temperature controller for industrial heating or cooling applications.

FAQ

1. What is the Yudian AI-509 Temperature Controller used for?

The Yudian AI-509 is used for controlling temperature in industrial machines, ovens, furnaces, packaging machines, plastic machinery, food machinery and environmental testing equipment.

2. Does the Yudian AI-509 support PID control?

Yes. The AI-509 supports artificial intelligence PID control with auto tuning. It also supports basic On-Off control.

3. What sensor inputs are supported in AI-509?

The controller supports K, S, R, E, J, N thermocouple inputs and Pt100 RTD input.

4. What is the accuracy of Yudian AI-509?

The AI-509 has a measurement accuracy of 0.3 percent full scale with 0.1 degree Celsius resolution.

5. What power supply is required for AI-509?

The standard power supply is 100 to 240 VAC, 50 to 60 Hz. Some configurations may support 24 VDC depending on the ordered model.

6. Can the AI-509 be used with SSR output?

Yes. The AI-509 can be supplied with an SSR voltage output module of 12 VDC and 30 mA, depending on the model code.

7. Can the AI-509 operate a relay output?

Yes. Relay output modules are available. The controller can be configured with relay contact output depending on the application requirement.

8. What alarm functions are available?

The AI-509 supports high limit alarm, low limit alarm, deviation high alarm and deviation low alarm. Alarm relay modules are optional and depend on the selected configuration.

9. Is the AI-509 suitable for furnace temperature control?

Yes. The controller is suitable for industrial furnaces, kilns, ovens and other heating applications where stable temperature control is required.

10. What panel sizes are available for AI-509?

The AI-509 is available in multiple panel sizes including 96 x 96 mm, 72 x 72 mm, 48 x 48 mm, 48 x 96 mm and 96 x 48 mm.

11. What is auto tuning in Yudian AI-509?

Auto tuning is a function where the controller studies the process behavior and automatically calculates PID values. This helps achieve accurate temperature control with reduced overshoot.

12. Is the AI-509 suitable for OEM machine builders?

Yes. The AI-509 is suitable for OEMs because it supports multiple inputs, different output modules, different panel sizes and reliable temperature control for machine integration.
