Selec MiBRX 48X96 Modular PLC

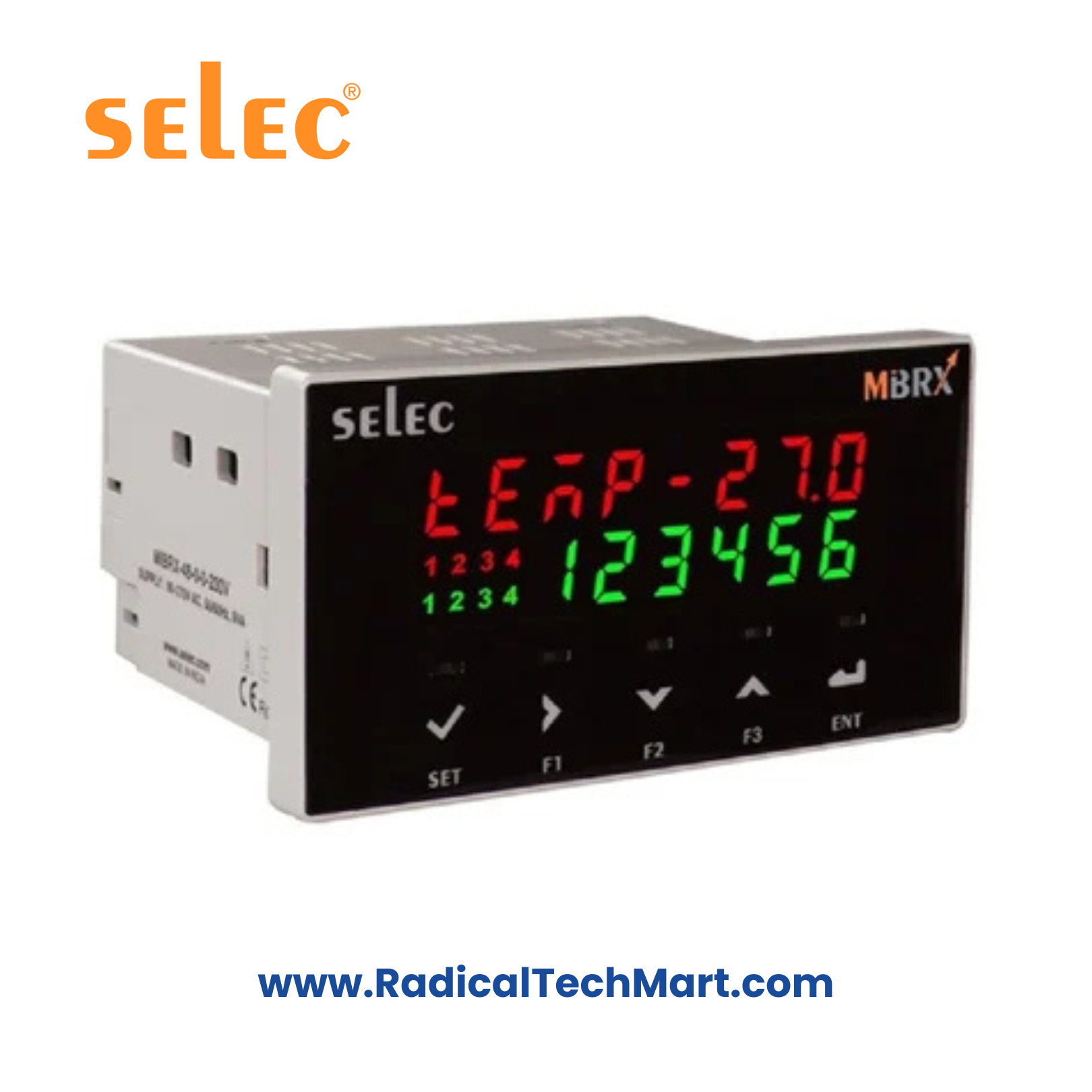

Selec MiBRX-48×96 Modular PLC Base Module – 230V / 24V, 2-Slot
A compact micro-modular PLC with pluggable display, flexible IO card configuration, RS-485 MODBUS RTU communication, and built-in high-speed inputs for industrial automation.
Customize
Share :
The Selec MiBRX-48×96 is a compact, modular PLC designed for flexible industrial automation. It supports a pluggable display, multiple IO slot configurations, high-speed inputs, analog measurement, and RS-485 MODBUS RTU communication for seamless system integration.
Key Features
Modular PLC with 2 IO card slots
Supports multiple IO card combinations (DI/DO/AI/AO/Fast IO/Load Cell)
RS-485 MODBUS RTU communication
High-speed inputs up to 5 kHz and fast-response operations
Pluggable front display (7-segment with LEDs)
Dual variants: 230V AC or 24V DC power supply
Real-time clock support with MiBRX-SC-DL card
Up to 5000 HMI objects supported
240 KB program memory & 32 KB data memory
-20°C to 70°C storage temp; IP65 front display
Technical Specifications
General Specifications
| Parameter | Specification |
|---|---|
| Power Supply | 230V AC or 24V DC variants |
| IO Slots | 2 slots |
| Digital Inputs | 5–7 DI (varies by variant), includes fast inputs |
| High-Speed Input | 5 kHz (Unidirectional/Bidirectional/Quadrature) |
| Analog Inputs | TC, RTD, mV, V, mA, NTC/PTC options via cards |
| Display | 7-segment LED, LEDs, bar graph depending on display module |
| Communication | RS-485, MODBUS RTU |
| Program Memory | 240 KB |
| Data Memory | 32 KB |
| EEPROM | 8 KB |
| RTC | Available with DL card |
| Operating Temperature | 0°C to 55°C |
| Dimensions | 55 × 101 × 80 mm |
| Weight | 200 grams |
Applications
Industrial machines & automation panels
Process control systems
Packaging, HVAC, pumping solutions
Data logging & monitoring (with DL card)
Motion & high-speed counting applications
What's in the Box?
1 × MiBRX-48×96 PLC Base Module
User manual/quick setup
Terminal block connectors
FAQ
Q1. How many IO cards can this PLC support?
A. The base module supports 2 IO card slots.
Q2. Does it include a display module?
A. Display modules (DSP-48 series) are sold separately.
Q3. Can I use analog and digital IO cards together?
A. Yes, all combinations are supported as per compatibility guidelines.
Q4. Does it support high-speed counting?
A. Yes—supports fast inputs up to 5 kHz.
Q5. How do I program the controller?
A. Using Selpro Windows Software (ladder logic + HMI).
