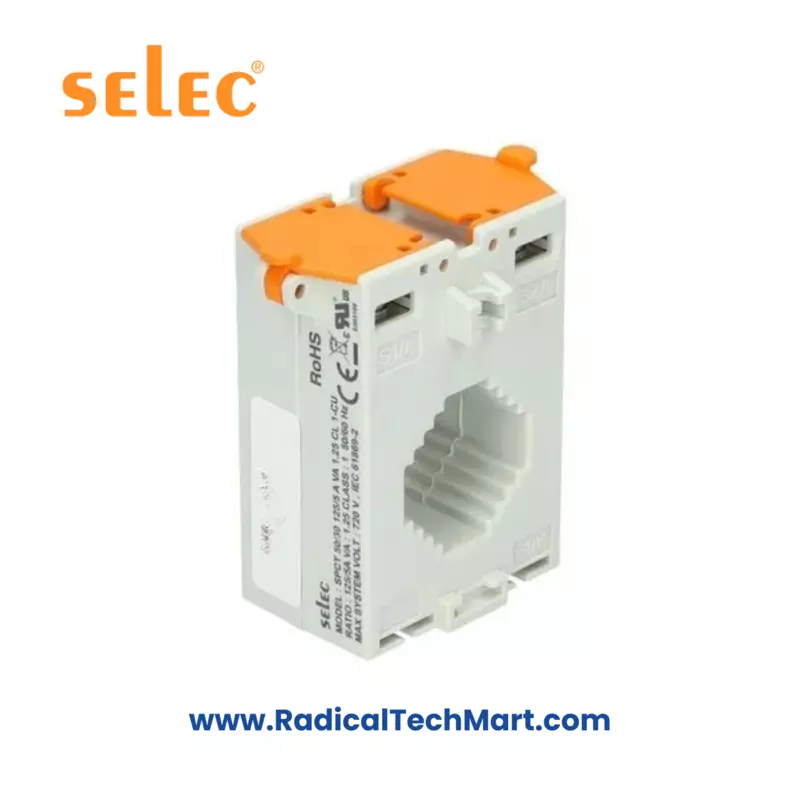

Selec SPCT - Special Type Current Transformer

Product Summary:
The Selec SPCT is a special type current transformer compatible with various busbar sizes, offering high accuracy and compact design. Suitable for panel or DIN rail mounting with certifications like CE, UL, and ASTA.

Key Features:

• Compatible with different busbar sizes

• Wide primary rating: 30A to 4000A

• Accuracy classes: 0.5 to 5

• CE, UL, and ASTA certified

• Rated secondary output: 5A

• Rated burden: 1VA to 15VA

• Operating frequency: 50/60Hz

• Maximum voltage: 720V

• Panel and DIN rail mount options

• Complies with IEC 61869-2 standard

Applications:

• Industrial control panels

• Energy monitoring systems

• Distribution panels

• Power factor correction systems

• Electrical substations

• Versatile mounting options for easy installation

• High accuracy for precise measurements

• Broad current range for various applications

• Certified safety and quality compliance

• Compact design fits modern panels

FAQ:

Q1: What is the maximum primary current supported by the Selec SPCT?
A1: The Selec SPCT supports up to 4000A primary current.

Q2: Can this CT be mounted on both panel and DIN rail?
A2: Yes, the SPCT series allows both panel mount and DIN rail mount with optional accessories.

Q3: What certifications does the SPCT come with?
A3: The product is CE, UL, and ASTA certified, ensuring international quality and safety standards.
