S2PR-P3GBD Autonics Push Button

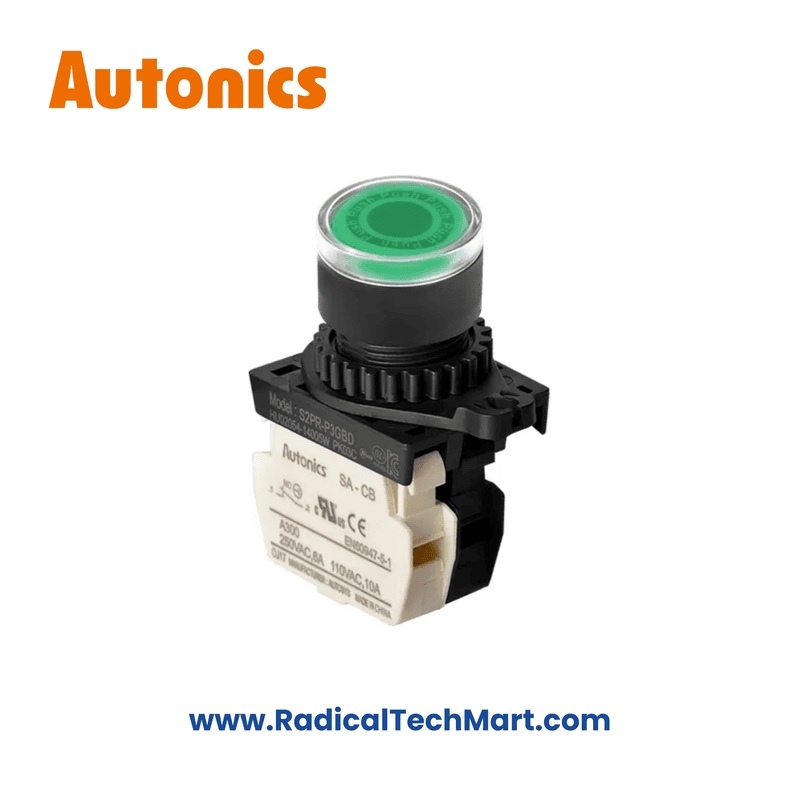

Autonics S2PR-P3GBD Illuminated Push Button Switch (Ø22 mm, Green, Momentary, 1NO+1NC)
The Autonics S2PR-P3GBD is a Ø22 mm illuminated green push button with momentary operation and 1NO+1NC contacts.
Designed for reliable operator control and status indication in industrial automation panels.
The Autonics S2PR-P3GBD is a Ø22 mm illuminated push button switch featuring a green actuator, momentary operation, and a 1NO+1NC contact configuration. The built-in LED provides clear visual status, making it suitable for operator panels where both control and indication are required.
The S2 series supports a modular construction with compatible contact and LED blocks, enabling flexible panel design for OEM machines and industrial control cabinets.
Key Features
Ø22 mm standard panel mounting
Green illuminated actuator for clear indication
Momentary (spring-return) operation
1NO + 1NC contact configuration
Modular S2 series construction (contact & LED blocks)
High visibility for operator control panels
Long mechanical and electrical life
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Illuminated Push Button Switch |
| Model | S2PR-P3GBD |
| Mounting Diameter | Ø22 mm |
| Actuator Color | Green |
| Illumination | LED (modular block) |
| Operation Type | Momentary |
| Contact Configuration | 1NO + 1NC |
| Rated Voltage (Contacts) | Up to 250 VAC |
| Rated Current (Contacts) | Up to 5 A |
| LED Supply (typical options) | 12–24 V AC/DC or 110–220 VAC (by LED block) |
| Protection Rating | IP65 (front side) |
| Operating Temperature | -25 to +55 °C |
Applications
Industrial automation panels
Operator control stations
Start/status indication circuits
OEM machinery
Packaging & processing machines
Electrical control cabinets
What’s in the Box?
Autonics S2PR-P3GBD Push Button Head
Compatible contact block(s) (1NO + 1NC)
LED block (as per model suffix)
Mounting nut/collar
Product leaflet
FAQ
Q1. What does “P3GBD” indicate in the model?
P3 indicates 1NO + 1NC contacts, G indicates green, and BD denotes the illuminated push button type.
Q2. Is the illumination LED voltage selectable?
Yes. LED blocks are modular and available in 12–24 V AC/DC or 110–220 VAC variants (selected by block).
Q3. Is this push button momentary or maintained?
It is a momentary (spring-return) push button.
Q4. Can it be used in standard Ø22 mm panels?
Yes. It fits standard Ø22 mm panel cutouts.
Q5. Is it suitable for continuous industrial use?
Yes. Designed for long life and reliable operation in industrial environments.
