AC-6 Socket Polarity and Earth Leakage Tester

A. Product Overview

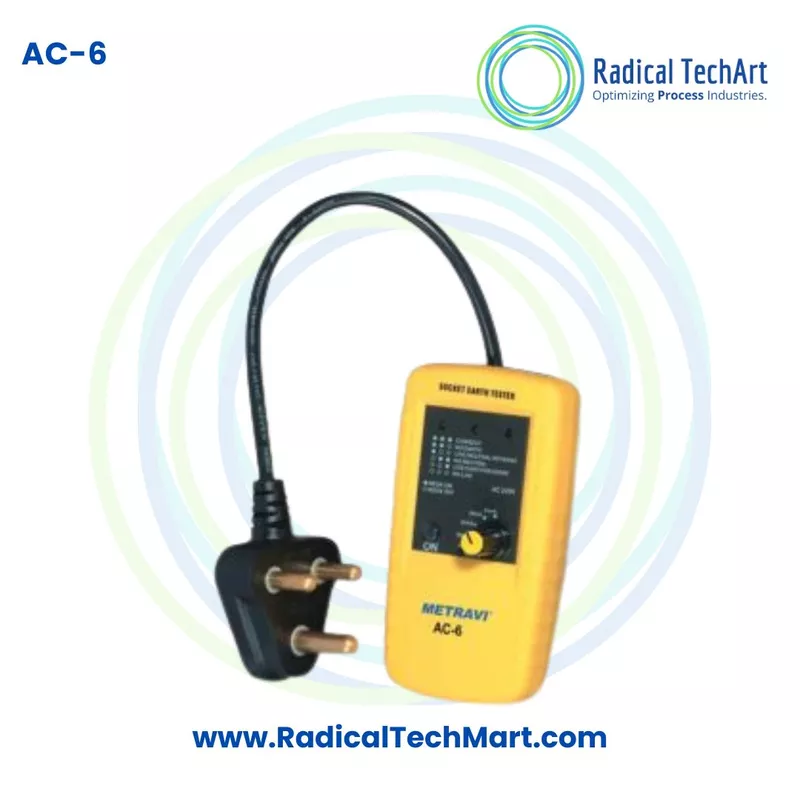

The AC-6 Socket Polarity and Earth Leakage Tester is an electrical testing instrument used for quick verification of socket wiring and earth leakage circuit breaker performance. It is suitable for 3-wire 220V AC outlets and helps electricians, maintenance teams and safety inspectors confirm whether the socket connection is correct before electrical equipment is used.

This tester is useful for identifying incorrect wiring conditions in electrical installations. It can indicate no earth, line neutral reversal, no neutral, line earth reversal and no line conditions. The product is compact, lightweight and easy to carry for routine electrical maintenance and site inspection work.

It is designed with IP40 protection and conforms to CAT III 600V electrical safety requirements. The catalogue also mentions IEC 61010 and IEC 61557-7 safety standards, making it suitable for professional electrical checking applications.

B. Working Principle

The AC-6 works by connecting to a 3-wire AC socket and checking the relationship between line, neutral and earth connections. When the tester is plugged into the socket, it uses the supply from the unit under test and displays the wiring condition through status indication.

If the wiring is correct, the tester helps confirm socket polarity. If there is a fault, it indicates the type of wiring issue, such as no earth, no neutral, line neutral reversal, line earth reversal or no line. For earth leakage checking, the tester is used to check whether the ELCB responds correctly during leakage test conditions.

In simple terms, it compares the socket wiring path and earth leakage response to help detect unsafe or incorrect electrical connections.

C. Why It Is Used

The AC-6 Socket Polarity and Earth Leakage Tester is used to improve electrical safety and reduce the risk of shock, equipment damage and wiring-related failures. Incorrect socket wiring can create serious safety hazards, especially in industrial, commercial and maintenance environments.

It is mainly used for:

Checking socket polarity before equipment connection
Testing 3-wire 220V AC outlets
Identifying no earth and no neutral faults
Detecting line neutral reversal and line earth reversal
Checking earth leakage circuit breaker operation
Supporting electrical safety inspection and preventive maintenance
Reducing risk during installation, repair and commissioning work

This tester is especially helpful where fast socket verification is required without using complex test equipment.

D. Suitable Buyers

The AC-6 Socket Polarity and Earth Leakage Tester is suitable for:

Electrical contractors
Electricians
Industrial maintenance teams
Facility management companies
Panel builders
Electrical safety inspectors
Factory and plant maintenance departments
Commercial building maintenance teams
HVAC service technicians
Installation and commissioning engineers
MRO purchase teams
Schools, colleges and training labs
Electrical testing and inspection service providers

FAQ

1. What is the AC-6 Socket Polarity and Earth Leakage Tester used for?
The AC-6 is used for checking 3-wire 220V AC socket polarity, wiring faults and earth leakage circuit breaker performance.

2. Can the AC-6 detect no earth faults?
Yes, the AC-6 can indicate no earth condition in a socket wiring system.

3. What wiring faults can this tester identify?
It can indicate no earth, line neutral reversal, no neutral, line earth reversal and no line conditions.

4. Is this tester suitable for ELCB testing?
Yes, the AC-6 is designed for checking earth leakage circuit breakers along with socket polarity testing.

5. Does the AC-6 need an external battery?
According to the catalogue, the power supply is from the unit under test, so it works using the socket supply during testing.

6. What voltage socket is this tester suitable for?
It is suitable for 3-wire 220V AC outlets.

7. What is the protection rating of the AC-6?
The AC-6 has IP40 type protection.

8. What is the safety rating of this tester?
The catalogue mentions CAT III 600V conformity and IEC 61010 and IEC 61557-7 safety references.

9. Who should use a socket polarity tester?
Electricians, maintenance engineers, facility managers, electrical contractors and safety inspectors can use this tester for socket wiring verification.

10. Why is socket polarity testing important?
Socket polarity testing is important because wrong wiring can cause electrical shock risk, equipment malfunction and unsafe installation conditions.

11. Is the AC-6 useful for industrial maintenance?
Yes, it is useful for factories, plants, commercial buildings and maintenance teams that need fast socket and earth leakage checking.

12. Can this tester be used during new electrical installation work?
Yes, it can be used during installation, commissioning and maintenance to verify socket wiring before connecting electrical equipment.
