A. Product Overview

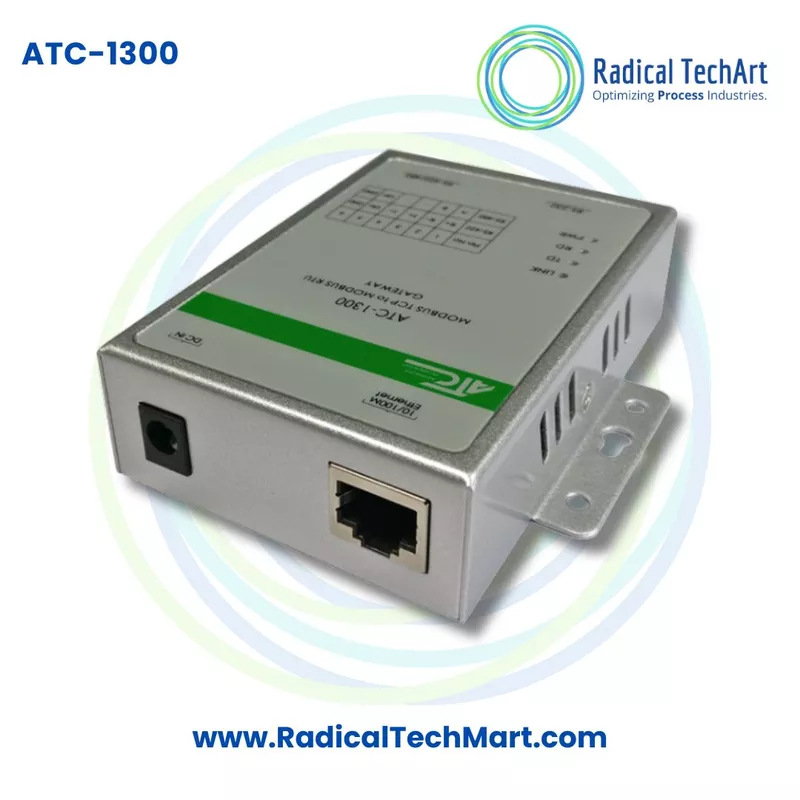

The ATC-1300 Modbus Gateway is a compact industrial communication device used for protocol conversion and network integration in automation systems. It allows serial-based industrial devices to communicate with Ethernet networks without replacing existing equipment.

The gateway supports RS-232, RS-422 and RS-485 interfaces through a single 3-in-1 serial communication port. It provides Ethernet connectivity with 10/100 Mbps network support and enables seamless communication between PLCs, HMIs, SCADA systems, industrial controllers, sensors, power meters and other Modbus-compatible devices.

The ATC-1300 is suitable for applications where existing RS-232, RS-485 or RS-422 devices need to be connected to modern Ethernet-based automation networks. It supports TCP Server, TCP Client, UDP communication modes and virtual serial port functionality for flexible industrial communication.

Key Features:

• RS-232, RS-422 and RS-485 3-in-1 serial interface
• TCP/IP Ethernet communication support
• 10/100 Mbps Ethernet port
• Modbus TCP, Modbus RTU and Modbus ASCII compatibility
• Supports 2-wire and 4-wire RS-485 communication
• Automatic RS-485 data direction control
• TCP Server, TCP Client and UDP modes
• Virtual serial port support
• Web-based and Windows utility configuration
• Industrial 24VDC power supply compatibility
• Built-in watchdog function
• DIN rail mounting suitable for industrial panels
• CE, RoHS and FCC certified design

B. Working Principle of ATC-1300 Modbus Gateway

The ATC-1300 works as a bridge between serial communication devices and Ethernet networks.

In traditional industrial systems, many devices such as PLCs, meters, sensors and controllers communicate through serial protocols like RS-232, RS-485 or RS-422. However, modern automation systems often require Ethernet-based communication for remote monitoring and centralized control.

The ATC-1300 receives serial data from connected devices and converts it into Ethernet TCP/IP communication. Similarly, Ethernet commands received from PLC, SCADA or HMI systems are converted back into serial communication signals for connected field devices.

The configuration process is performed through a web interface or configuration utility. Users can set IP address, serial communication parameters and network settings according to application requirements. After configuration, the gateway enables continuous and reliable data exchange between connected devices.

Communication Flow:

Serial Device
(RS-232 / RS-485 / RS-422)

↓

ATC-1300 Modbus Gateway

↓

Ethernet Network
(TCP/IP)

↓

PLC / HMI / SCADA / Industrial Computer

C. Why ATC-1300 Modbus Gateway is Used

Industrial plants often have existing machines and instruments that use serial communication interfaces. Replacing these devices with new Ethernet-enabled equipment can be expensive and time-consuming.

The ATC-1300 provides an economical solution by allowing older serial devices to communicate with modern Ethernet-based automation systems.

Main Reasons for Using ATC-1300:

1. Integration of Legacy Equipment

It allows existing RS-232, RS-485 and RS-422 devices to connect with modern PLC, SCADA and HMI systems.

2. Easy Industrial Networking

The gateway simplifies communication between multiple automation devices over Ethernet networks.

3. Cost Reduction

Industries can upgrade their communication infrastructure without replacing existing field instruments and controllers.

4. Remote Monitoring and Control

Ethernet connectivity enables centralized monitoring and data collection from industrial devices.

5. Flexible Protocol Conversion

It supports different communication modes including Modbus TCP, Modbus RTU and Modbus ASCII.

6. Reliable Industrial Communication

Features like watchdog function, industrial power supply support and serial protection make it suitable for continuous industrial operation.

D. Suitable Buyers and Applications

Suitable Buyers:

• Industrial automation system integrators
• PLC programmers
• OEM machine manufacturers
• Panel builders
• SCADA solution providers
• Factory automation companies
• Process industries
• Maintenance and instrumentation engineers
• Research and development laboratories
• Manufacturing plants upgrading automation systems

Suitable Applications:

PLC and HMI Communication

Connecting PLC controllers and HMIs with serial-based devices.

SCADA Systems

Integrating field instruments and controllers with monitoring systems.

Machine Automation

Connecting older machines with industrial Ethernet networks.

Energy Monitoring Systems

Communication with power meters and energy monitoring devices.

Process Automation

Integration of sensors, controllers and industrial instruments.

Building Automation

Connecting automation devices with centralized monitoring systems.

Frequently Asked Questions (FAQ)

1. What is an ATC-1300 Modbus Gateway?

ATC-1300 Modbus Gateway is an industrial communication converter used to connect RS-232, RS-485 and RS-422 serial devices with Ethernet networks. It enables communication between serial devices and Ethernet-based PLC, HMI and SCADA systems.

2. What communication interfaces are supported by ATC-1300?

The ATC-1300 supports RS-232, RS-422 and RS-485 serial communication interfaces with Ethernet connectivity for industrial networking applications.

3. Which protocols are supported by ATC-1300 Modbus Gateway?

The ATC-1300 supports Modbus TCP, Modbus RTU and Modbus ASCII protocols, making it suitable for various industrial automation and communication applications.

4. Can ATC-1300 connect PLC and HMI systems with serial devices?

Yes, ATC-1300 can connect PLCs, HMIs, I/O modules and other serial communication devices with Ethernet-based automation systems.

5. What is the purpose of using a Modbus Gateway in industrial automation?

A Modbus Gateway is used to convert communication between different interfaces and protocols. It helps industries connect existing serial devices with modern Ethernet-based control systems without replacing existing equipment.

6. Does ATC-1300 support RS-485 2-wire and 4-wire communication?

Yes, ATC-1300 supports both 2-wire and 4-wire RS-485 communication modes for flexible industrial installations.

7. How is the ATC-1300 Modbus Gateway configured?

The ATC-1300 can be configured through a web browser interface or Windows configuration utility. Users can configure IP address, serial communication parameters and network settings according to application requirements.

8. What are the applications of ATC-1300 Modbus Gateway?

ATC-1300 is used in industrial automation, PLC communication, SCADA systems, machine networking, energy monitoring systems, process automation and factory communication applications.

9. Can ATC-1300 be used with existing legacy machines?

Yes, ATC-1300 is ideal for upgrading older machines with serial communication interfaces by connecting them to modern Ethernet networks.

10. What type of industries use ATC-1300 Modbus Gateway?

ATC-1300 is suitable for manufacturing industries, OEM machine builders, system integrators, panel builders, process industries and automation solution providers.

11. Does ATC-1300 support Ethernet communication?

Yes, ATC-1300 supports 10/100 Mbps Ethernet communication for reliable industrial network connectivity.

12. What power supply is required for ATC-1300?

ATC-1300 is designed for industrial applications and supports DC power supply suitable for installation inside automation control panels.

13. Can ATC-1300 work as a TCP Server and TCP Client?

Yes, ATC-1300 supports TCP Server, TCP Client and UDP communication modes for flexible industrial networking requirements.

14. Is ATC-1300 suitable for SCADA integration?

Yes, ATC-1300 can be used for SCADA integration by enabling communication between field devices and Ethernet-based monitoring systems.

15. Why choose ATC-1300 Modbus Gateway?

ATC-1300 provides a cost-effective and reliable solution for connecting serial industrial devices with Ethernet networks, reducing the need for expensive equipment replacement and simplifying automation upgrades.
