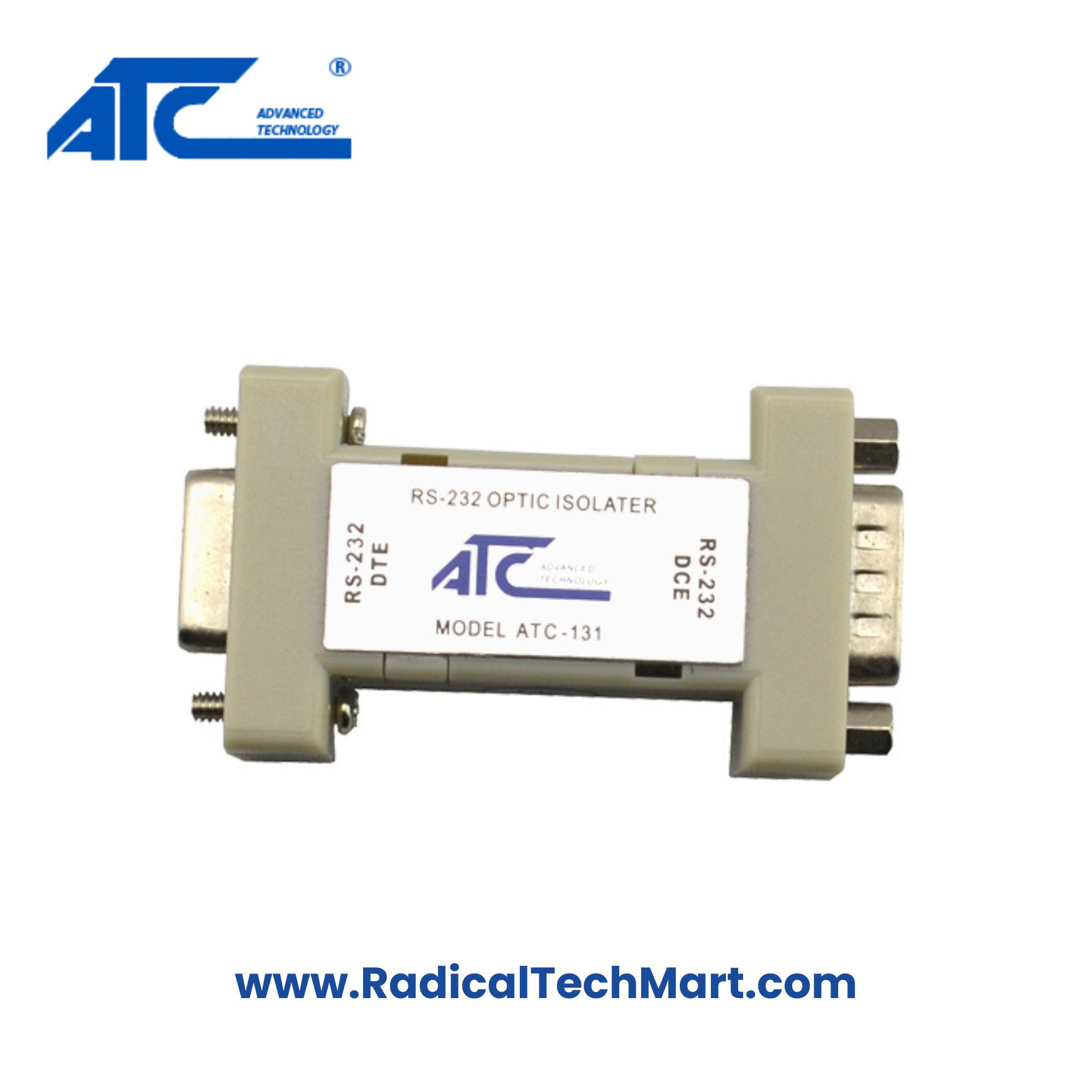

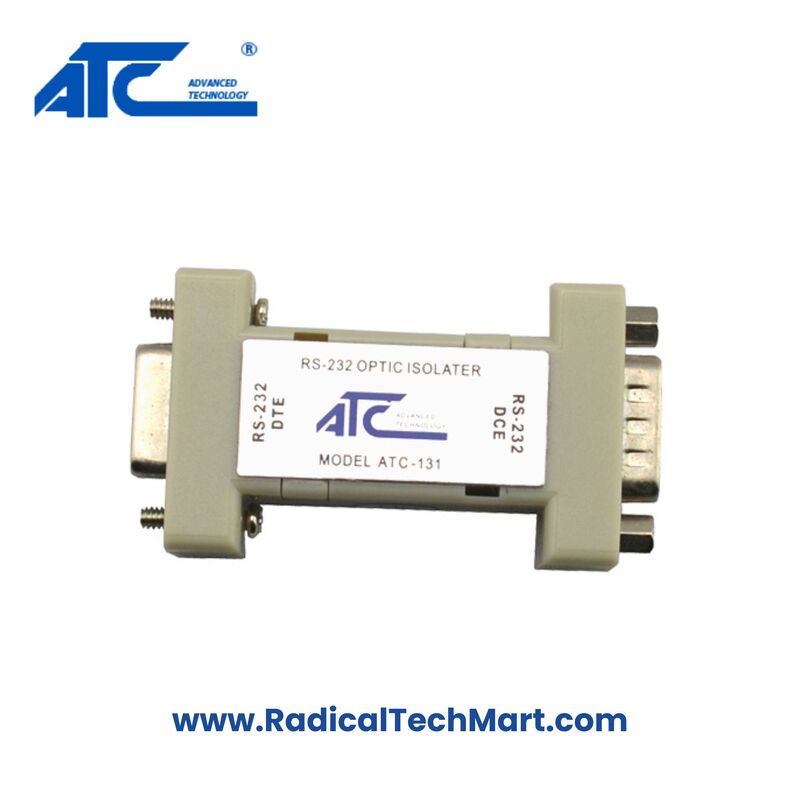

ATC-131 Port Powered RS-232 Isolator

Product Summary:
The ATC-131 is a compact, port-powered RS-232 isolator that offers 2500V RMS isolation to protect transmit and receive lines from electrical surges, static, and ground loops.

Key Features:

• 2500V RMS isolation protection

• Supports baud rates up to 57.6Kbps

• No external power supply needed

• Compact plastic enclosure (63x33x17mm)

• Conforms to EIA RS-232 and CCITT V.24 standards

• Asynchronous full duplex communication

• Operates in wide temperature range: -20°C to 70°C

• DB9 Male to DB9 Female RS-232 connection

Applications:

• Banking, railway, and telecom industries

• Government, insurance, and finance sectors

• Protecting modems, routers, multi-user terminals

• Safeguarding non-ground RS-232 devices and program-controlled exchanges

• Useful in UNIX-based multi-user systems

Product Benefits:

• Prevents ground loop and surge-related device damage

• Enhances device longevity and reliability

• Simplifies installation—plug-and-play with RS-232 ports

• Ensures stable, noise-free serial communication

• Supports various industrial and commercial automation systems

FAQ:

Q1. Does the ATC-131 require an external power supply?
A: No, it is port-powered via the RS-232 TXD, RTS, or DTR lines.

Q2. Can it work without handshake signals?
A: At least one handshake line on both sides is required, but their signal is not passed through.

Q3. What kind of protection does it offer?
A: It provides 2500V RMS isolation and protection from surges, static, and ground loops.
