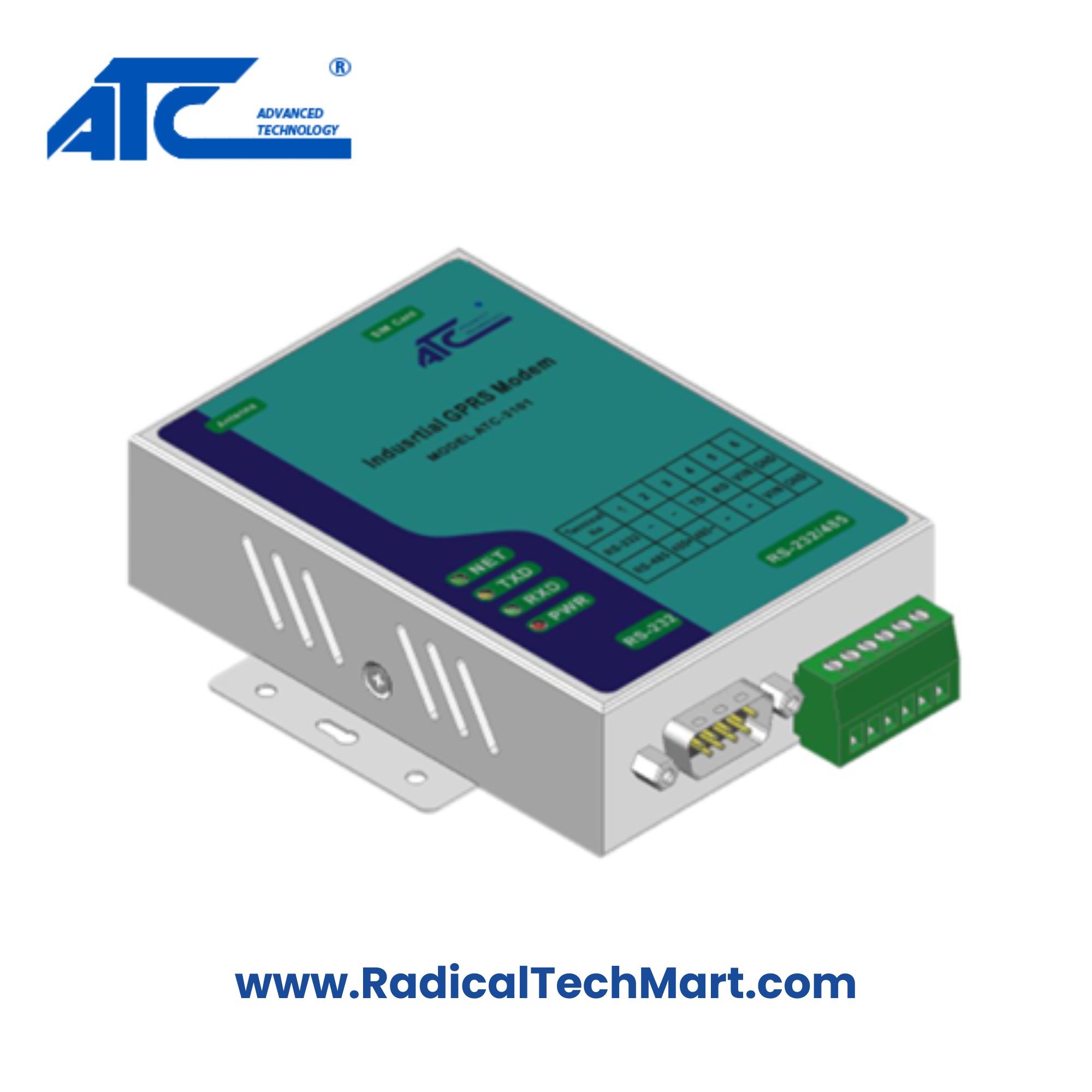

ATC-3101 GPRS Modem

Product Summary:
The ATC-3101 is a high-speed industrial GPRS modem designed for wireless data transmission using GSM networks. It supports both RS232 and RS485 interfaces and is ideal for automation, telemetry, and remote monitoring applications.

Key Features:

• High-speed ARM processor for stable performance

• Quad-band GSM 850/900/1800/1900 MHz compatibility

• Baud rate support from 1200 to 115200 bps

• Built-in watchdog for enhanced system reliability

• Remote wake-up via SMS and configurable through serial port

• Compatible with AT commands for flexible control

• Supports SMS in text and PDU mode

Applications:

• Industrial Automation & Remote Monitoring

• SCADA & Telemetry Systems

• Energy Management Systems

• Smart Grid Communication

• Remote Data Acquisition

Product Benefits:

• Seamless communication with both RS232 and RS485 interfaces

• Wide operating temperature range: -35°C to 70°C

• Supports multiple operating systems including Windows & Linux

• Compact design with DIN-rail mounting

• Robust construction with iron housing

• LED indicators for GSM link, power, TXD & RXD status

FAQs:

Q1: What communication interfaces are supported by the ATC-3101 GPRS Modem?
A: The modem supports RS232 and RS485 serial communication interfaces.

Q2: Can the ATC-3101 modem be configured remotely?
A: Yes, it supports configuration via serial port and remote control through SMS.

Q3: Is this modem compatible with Linux-based systems?
A: Yes, it supports multiple OS platforms including Windows and Linux distributions like UNIX and TTY.
