ATC-405 Industrial Ethernet Switch (5-Port, LAN-Capable)
ATC-405 Industrial Ethernet Switch (5-Port, LAN-Capable)
Compact 5-port industrial Ethernet switch with 10/100 Base-TX support, a wide -40°C to +85°C temperature range, surge protection, and metal IP30 enclosure. Ideal for factory automation, control panels, and harsh industrial LAN environments.
Customize
Share :

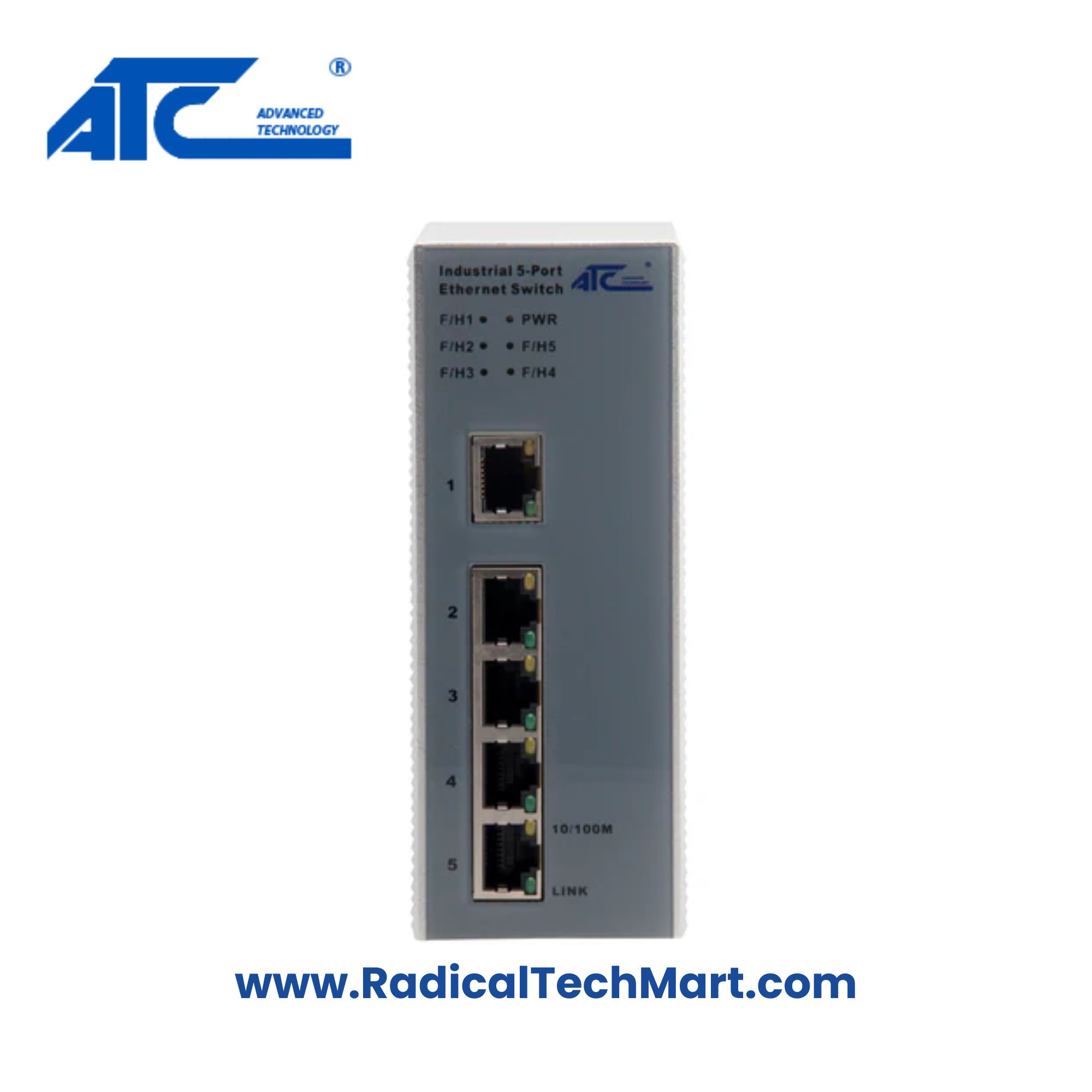

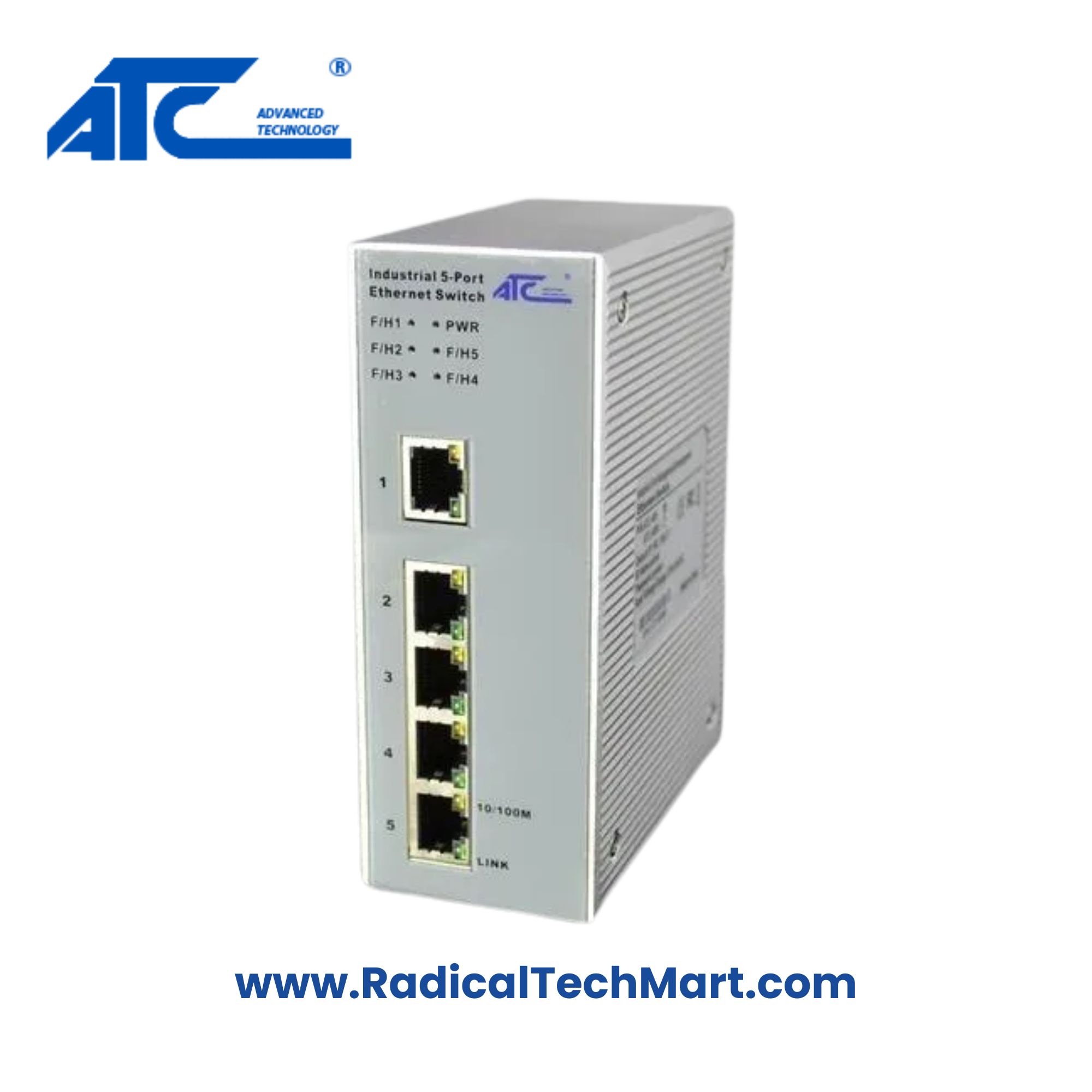

ATC-405 Industrial Ethernet Switch – 5-Port LAN-Capable Network Switch
The ATC-405 Ethernet Switch is a rugged, compact, 5-port industrial network switch designed for LAN applications in automation, manufacturing, and harsh environments. It supports 10/100 Base-TX Ethernet, surge protection, and wide operating temperatures, making it ideal for stable industrial communication.
With auto-negotiation, IEEE 802.3x flow control, and a 1 Gbps switching fabric, the ATC-405 delivers smooth and reliable network performance for PLC panels, control systems, machine networks, and distributed automation equipment.
Its metal IP30-rated enclosure, DIN rail/wall mounting support, and operational range of -40°C to +85°C ensure durability in high-temperature, high-humidity, or electrically noisy locations.
Key Features
5-port industrial Ethernet switch (10/100 Base-TX RJ45)
Auto-negotiation & auto-MDI/MDI-X support
Wide operating temp: -40°C to +85°C
Humidity tolerance 5%–95% (non-condensing)
1 Gbps switching capacity for fast network performance
Packet forwarding rate: 0.74 Mpps
Surge protection on power & data lines
IP30 metal enclosure for industrial robustness
DIN rail or wall mount installation
External DC supply: 9–36V DC
Plug-and-play; no software configuration required
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ATC-405 |
| Product Type | Industrial Ethernet Switch |
| No. of Ports | 5 × RJ45 (10/100 Base-TX) |
| Switching Capacity | 1 Gbps |
| Packet Forwarding | 0.74 Mpps |
| Operating Temp | -40°C to +85°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% non-condensing |
| Power Input | 9–36V DC |
| Enclosure | Metal (IP30 rating) |
| Dimensions | 120 × 85 × 28 mm |
| Weight | 230 g |
| LEDs | Power, Link/Activity per port |
| Mounting | DIN rail / wall mount |
| Colour | Black |
| Protocol | Unmanaged switch |
| Cable Range | Up to 100 m |
| Warranty | 1 Year |
Applications
Factory LAN networks
PLC and SCADA panel networking
Industrial automation systems
Control cabinets and machinery panels
Outdoor/harsh environment networking
Transport, energy, and water infrastructure
CCTV and IP surveillance in industrial areas
What’s in the Box
1× ATC-405 Industrial Ethernet Switch
1× DIN Rail Mount (if supplied)
1× User/Installation Guide
FAQ
1) How do I install the ATC-405 switch?
Mount it using the DIN rail or wall brackets, provide 9–36V DC power, and connect Ethernet cables. The switch is plug-and-play.
2) What environments can it operate in?
The switch operates from -40°C to +85°C, supports up to 95% humidity, and is protected by a metal IP30 enclosure, making it suitable for harsh industrial sites.
3) Does the ATC-405 support surge protection?
Yes. The switch includes surge protection on both power input and Ethernet lines to prevent damage from electrical disturbances.
4) Is this a managed switch?
The ATC-405 is an unmanaged industrial Ethernet switch for simple, reliable, plug-and-play LAN deployment.
5) What is the maximum Ethernet cable length?
Standard Ethernet cable length of up to 100 meters per port is supported.
6) Where is the ATC-405 commonly used?
Control panels, PLC cabinets, production lines, industrial machinery networks, and rugged outdoor communication systems.
