ATC-810 USB to Serial (RS-232) Converter
ATC-810 USB to RS-232 Serial Converter
Industrial-grade USB to RS-232 converter for reliable serial communication with PLCs, HMIs, sensors, instruments, and legacy RS-232 devices.
Download Now!!!
Customize
Share :

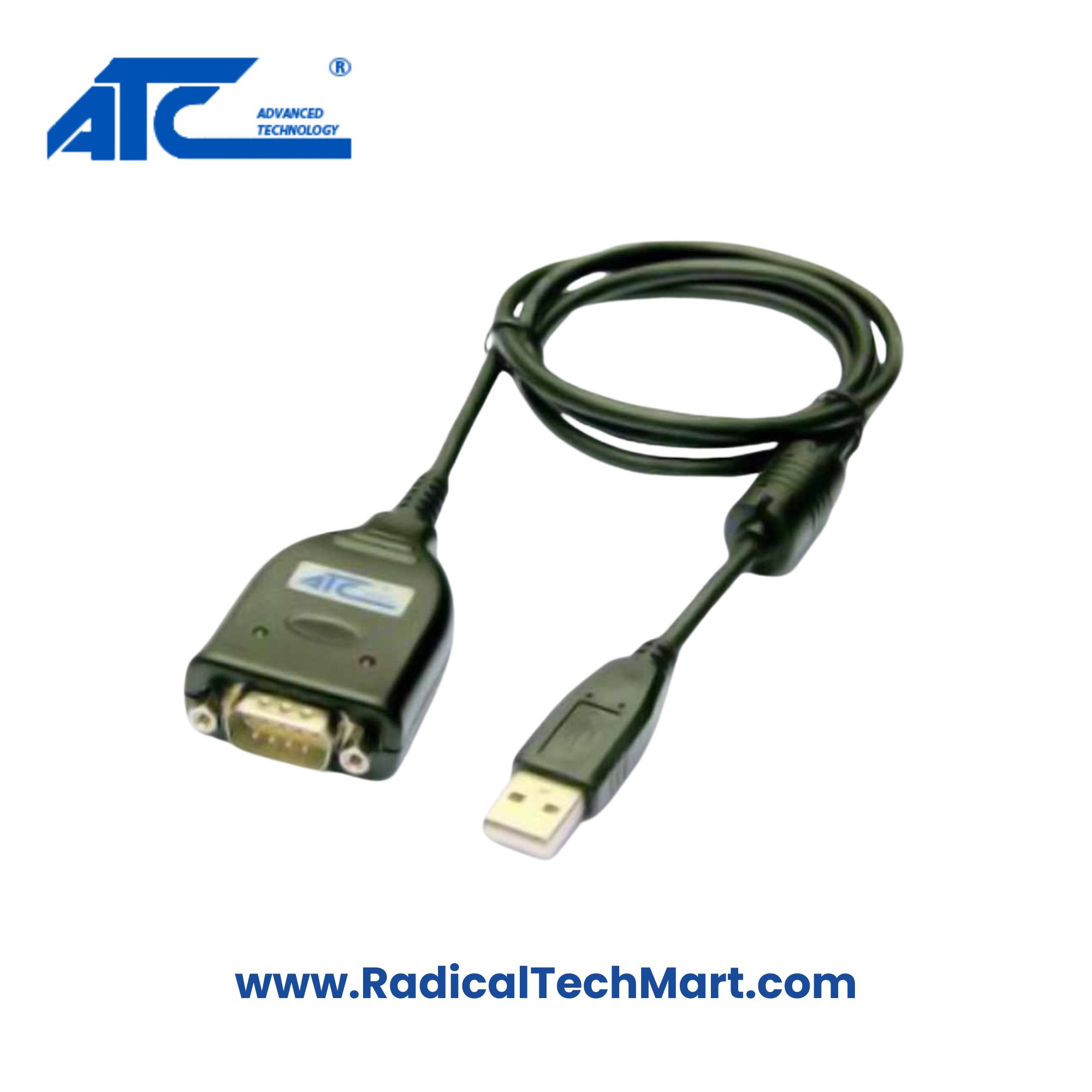

ATC-810 USB to Serial (RS-232) Converter – Industrial Grade Communication Cable
The ATC-810 USB to Serial Converter enables reliable data communication between modern USB-based systems and RS-232 serial devices. Designed for industrial automation, PLC communication, CNC machines, POS terminals, and serial instruments, it delivers stable performance with data speeds up to 1 Mbps.
Built with high-quality copper conductors, metal shielding, flexible PVC insulation, and a UL 94V-0 flame-resistant jacket, the ATC-810 ensures durability and noise-free data transfer in demanding industrial environments. It supports major operating systems, including Windows, Linux, and Mac OS, and requires no external power supply.
Key Features
High-speed USB to RS-232 serial conversion
Supports data rates from 300 bps to 1 Mbps
USB Type-A male to DB9 female connector
Compatible with PLC, CNC, POS, Modem, and RS-232 equipment
Copper core with metal shielding for EMI protection
UL 94V-0 flame-resistant PVC jacket
Plug-and-play installation with chipset support (FTDI, PL2303, CH340)
Operating temperature: 0°C to 55°C
RoHS compliant; environmentally safe
Supports Windows, Linux, and Mac OS

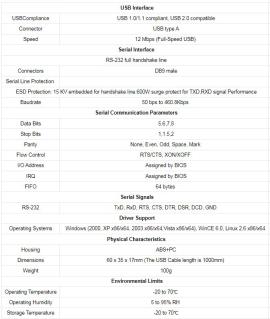

Technical Specifications
| Parameter | Value |
|---|---|
| Model | ATC-810 |
| Interface | USB 2.0 to RS-232 |
| Connectors | USB Type-A Male → DB9 Female |
| Data Rate | Up to 1 Mbps |
| Cable Length | 1.5 meters |
| Material | Copper Core |
| Shielding | Metal Shielding |
| Jacket Material | Flexible PVC |
| Insulation | PVC |
| Flame Rating | UL 94V-0 |
| Voltage Rating | DC 5V |
| Operating Temperature | 0°C to 55°C |
| No. of Conductors | 4 |
| Wire Gauge | 28 AWG |
| Color | Black |
| OS Support | Windows / Linux / Mac |
| Humidity | Standard industrial (non-condensing) |
| Warranty | 1 Year |
Applications
Industrial automation systems
PLC, CNC, and SCADA communication
Serial modems & instrumentation
POS machines & barcode systems
Data loggers
Laboratory test equipment
RS-232 legacy hardware
What’s in the Box
1× ATC-810 USB to Serial (RS-232) Converter
1× User instruction sheet
FAQ
1) How do I install the ATC-810?
Simply plug the USB connector into your PC and connect the DB9 female end to your RS-232 device. Most OS auto-detect; drivers may be required for chipsets like FTDI/PL2303/CH340.
2) What devices can I connect with this converter?
PLCs, CNC machines, POS terminals, modems, barcode scanners, serial instruments, and other RS-232 devices.
3) Does it support modern operating systems?
Yes, it supports Windows, Linux, and Mac OS.
4) What is the data transfer speed?
Up to 1 Mbps, suitable for both low-speed and high-speed serial communication.
5) Is the cable shielded?
Yes, it includes metal shielding to reduce electromagnetic interference.
6) What is the cable length?
Standard 1.5-metre cable for industrial usability.
