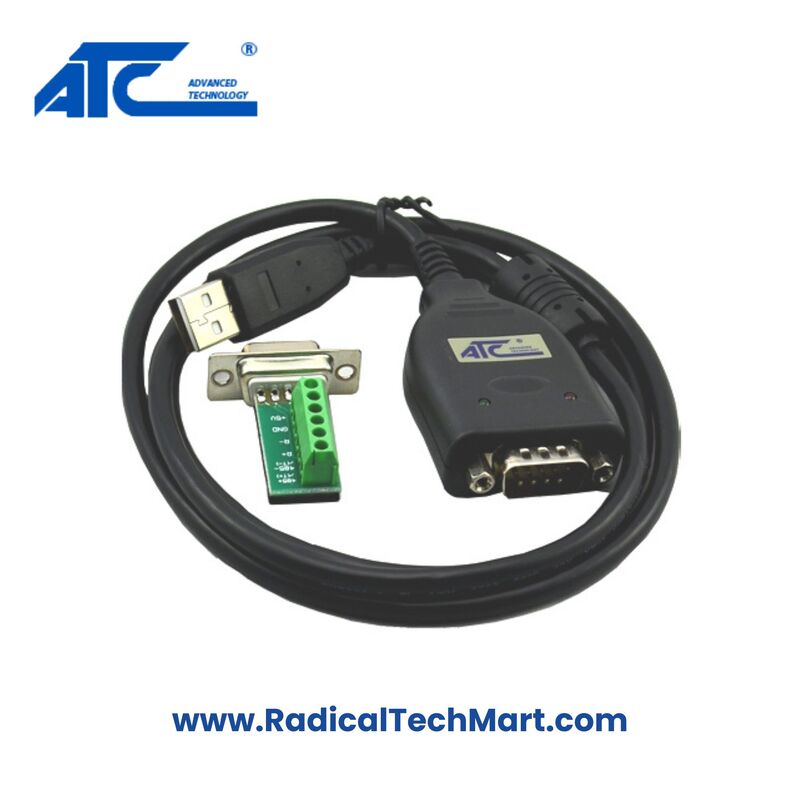

ATC-830 USB to Serial (RS-232) Converter – Industrial Grade FTDI-Based Interface
The ATC-830 USB to Serial (RS-232) Converter enables dependable communication between modern USB-equipped computers and legacy RS232 serial devices. Powered by a high-performance FTDI FT232RL chipset, the converter delivers reliable high-speed data transfer up to 1 Mbps, making it suitable for industrial machinery, barcode scanners, modems, and lab instruments.
With a 1.5-meter PVC-jacketed cable, foil shielding, UL VW-1 flame resistance, and 15 kV ESD protection, the ATC-830 ensures stable operation in both commercial and industrial environments. Its plug-and-play installation works seamlessly with Windows, Linux, and Mac OS, without requiring external power.
Key Features
USB Type-A male to DB9 female RS232 serial interface
High-performance FTDI FT232RL chipset
Supports data speeds from 300 bps to 1 Mbps
15 kV ESD protection for device safety
Plug-and-play operation; no external power needed
Works with Windows, Linux, and Mac OS
1.5-meter flexible PVC cable
Foil shielding minimizes electromagnetic interference
Operating temperature: -20°C to +60°C
LED indicators for TX/RX data activity
Compatible with barcode scanners, modems, PLCs, CNC machines, serial devices
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ATC-830 |
| Interface Type | USB to RS232 |
| Chipset | FTDI FT232RL |
| USB Version | USB 1.1/2.0 |
| Connectors | USB Type-A Male → DB9 Female |
| Data Rate | Up to 1 Mbps |
| Cable Length | 1.5 meters |
| Conductor Material | Copper |
| Wire Gauge | 28 AWG |
| No. of Conductors | 4 |
| Shielding | Foil Shielded |
| Jacket Material | PVC (UL VW-1 flame resistant) |
| Operating Temperature | -20°C to +60°C |
| Voltage Rating | 30V |
| Color | Black |
| Outer Diameter | 4.5 mm |
| OS Support | Windows, Mac, Linux |
| ESD Protection | 15 kV |
| Power | USB powered |
| Enclosure | ABS module (55 × 35 × 15 mm) |
| Warranty | 1 Year |
Applications
Barcode scanners & POS terminals
Industrial automation & CNC machines
Serial modems and RS232 instruments
Laboratory and test equipment
PC-to-serial communication systems
Data logging and configuration tools
What’s in the Box
1× ATC-830 USB to Serial (RS232) Converter
1× Quick installation/user guide
FAQ
1) How do I connect the ATC-830?
Connect the USB Type-A male end to your PC and the DB9 female end to your serial device. The system will auto-detect the FTDI chipset.
2) Which operating systems support the ATC-830?
Windows 98/ME/XP/2000/CE, Windows 7/8/10, Linux, and Mac OS.
3) What protection does it provide?
The converter offers 15 kV ESD protection to protect connected equipment from electrostatic discharge.
4) What devices can I connect?
Barcode scanners, industrial machinery, CNC devices, modems, POS peripherals, and other RS232-enabled equipment.
5) Does it work in industrial environments?
Yes. A flame-resistant PVC jacket, foil shielding, and wide temperature support make it suitable for industrial use.
6) What is the maximum communication speed?
Up to 1 Mbps, supporting both low-speed and high-speed serial communication.
