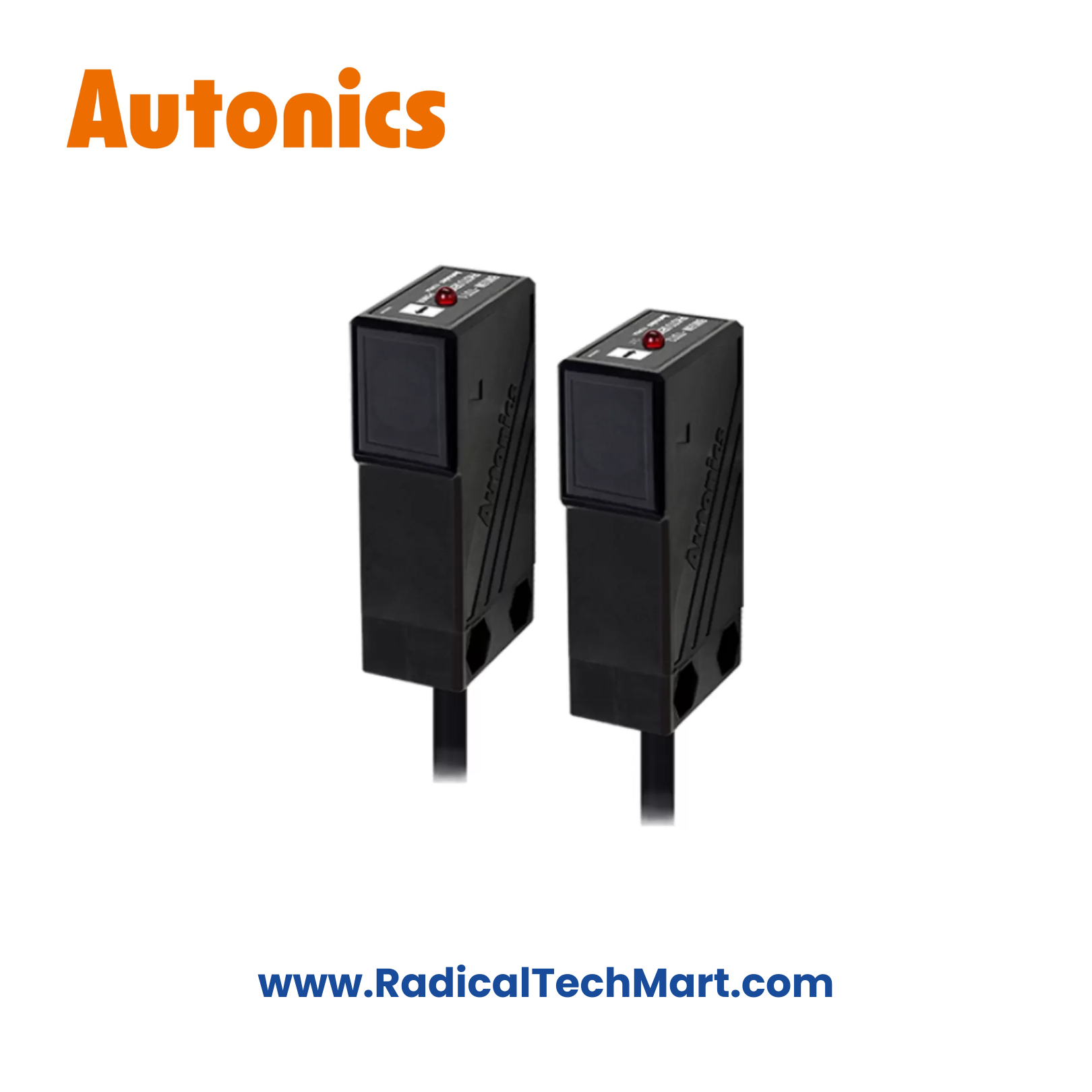

Autonics BMS5M-TDT-P Through-Beam Photoelectric Sensor (5 m, PNP, IP66)
Long-range through-beam photoelectric sensor with 5 m sensing distance and PNP open-collector output.
Built for reliable detection on long conveyors, packaging lines, and material-handling systems.
Customize
Share :
The Autonics BMS5M-TDT-P is a through-beam type photoelectric sensor designed for long-distance, high-reliability object detection. Using a separate emitter and receiver, it achieves a 5-meter sensing range, making it ideal for conveyors, packaging machines, and material-handling automation where stable detection is critical.
Key Features
Through-beam sensing type (emitter + receiver)
Long sensing distance up to 5 m
PNP open-collector output
Light-ON / Dark-ON selectable
Excellent resistance to dust and ambient light
Fast response for high-speed automation
Built-in reverse polarity & output short-circuit protection
Rugged rectangular BMS housing
IP66 protection rating
Cable type for secure industrial wiring
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | BMS5M-TDT-P |
| Sensing Type | Through-Beam |
| Sensing Distance | Up to 5 m |
| Light Source | Infrared LED |
| Peak Wavelength | ~940 nm |
| Output Type | PNP open collector |
| Output Mode | Light-ON / Dark-ON |
| Response Time | ≤ 1 ms |
| Supply Voltage | 12–24 VDC ±10% |
| Load Current | ≤ 200 mA |
| Protection Rating | IP66 |
| Operating Temperature | −10 to +60 °C |
Applications
Long conveyor object detection
Packaging & bottling lines
Material handling systems
Counting & positioning applications
OEM industrial automation
Warehouse & logistics automation
What’s in the Box?
Autonics BMS5M-TDT-P Emitter unit
Autonics BMS5M-TDT-P Receiver unit
Mounting brackets
M4 bolts & nuts
Instruction manual
FAQ
Q1. What type of sensor is BMS5M-TDT-P?
It is a through-beam photoelectric sensor requiring a separate emitter and receiver.
Q2. What is the maximum sensing distance?
Up to 5 meters, suitable for long conveyors.
Q3. Does this model support NPN output?
No, this variant supports PNP output only.
Q4. Is it suitable for dusty environments?
Yes, through-beam sensors perform very well in dust, and this model is IP66 rated.
Q5. Where is it commonly used?
In packaging lines, conveyors, and material-handling automation.
