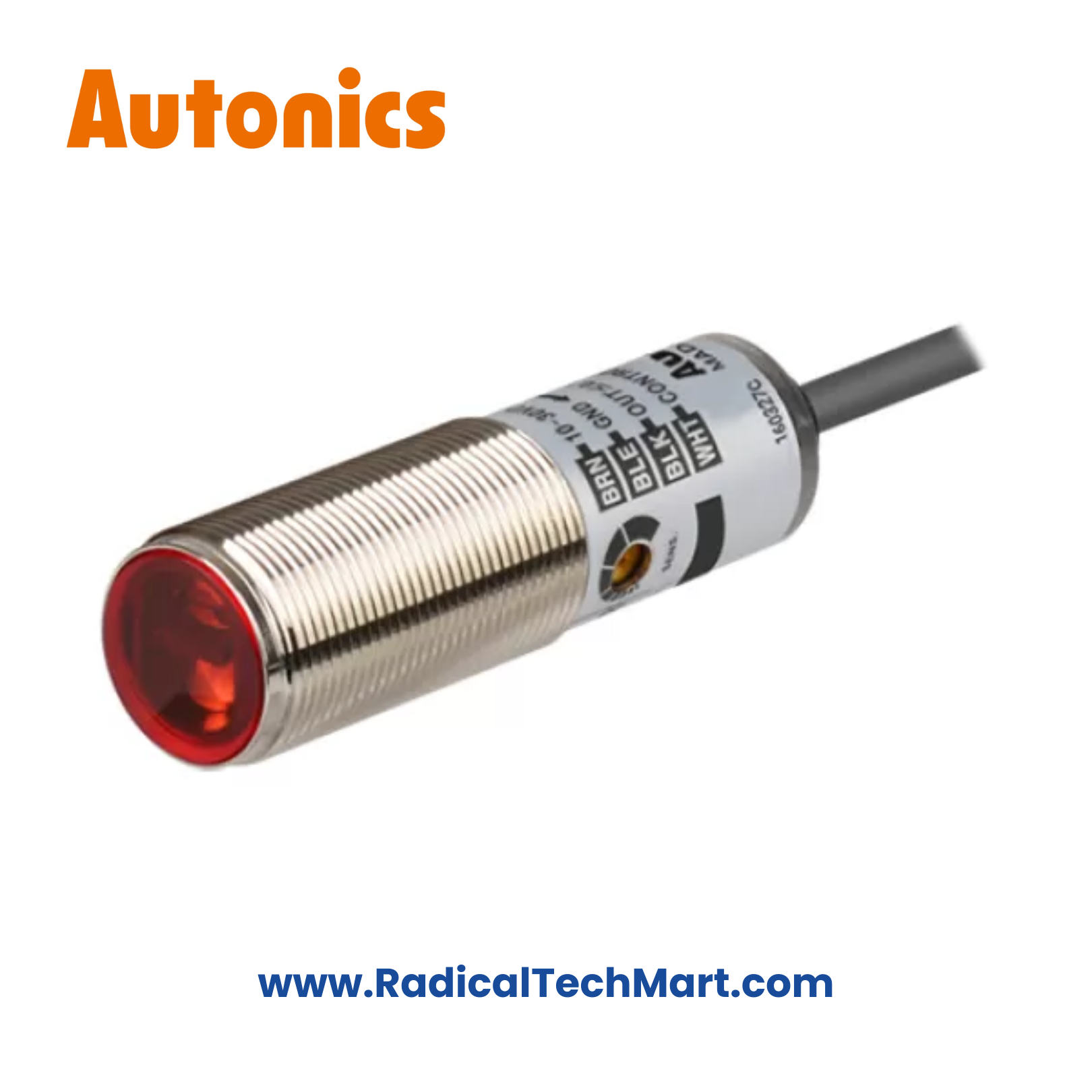

Autonics BRQM400-DDTA-P Photoelectric Sensor
Autonics BRQM400-DDTA-P Background Suppression Photoelectric Sensor (400 mm, PNP, M18, IP67)
Short-range background suppression (BGS) photoelectric sensor with 400 mm fixed sensing distance and PNP open-collector output.
Provides stable detection independent of object color and background distance, ideal for compact automation.
The Autonics BRQM400-DDTA-P is a background suppression (BGS) photoelectric sensor designed for accurate object detection at short distances while ignoring background surfaces. With a fixed 400 mm sensing range, PNP output, and IP67 protection, it is ideal for conveyors, packaging machines, and compact OEM automation requiring consistent detection.
Key Features
Background suppression (BGS) diffuse sensing
Fixed sensing distance: 400 mm
Accurate detection regardless of object color or reflectivity
PNP open-collector output
Light-ON / Dark-ON selectable
High immunity to ambient light and background reflections
Fast response for high-speed automation
Rugged M18 cylindrical metal housing
IP67 protection rating
Side-sensing optics for flexible installation
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | BRQM400-DDTA-P |
| Sensor Type | Photoelectric – Background Suppression |
| Sensing Distance | 400 mm (fixed) |
| Light Source | Red LED |
| Peak Wavelength | 660 nm |
| Output Type | PNP open collector |
| Output Mode | Light-ON / Dark-ON |
| Response Time | ≤ 1 ms |
| Supply Voltage | 10–30 VDC ±10% |
| Load Current | ≤ 100 mA |
| Protection Rating | IP67 |
| Operating Temperature | −25 to +60 °C |
Applications
Short-distance conveyor detection
Packaging & labeling machines
Precision positioning systems
Part presence detection
OEM industrial automation
Factory automation lines
What’s in the Box?
Autonics BRQM400-DDTA-P Photoelectric Sensor
M18 fixing nuts (×2)
Adjustment screwdriver
Instruction manual
FAQ
Q1. What does “400” indicate in this model?
It indicates a fixed sensing distance of 400 mm.
Q2. What is background suppression sensing?
It detects objects at a defined distance and ignores backgrounds beyond that range.
Q3. Is detection affected by object color or surface finish?
No. BGS technology minimizes color and reflectivity effects.
Q4. Is this NPN or PNP output?
This variant provides PNP open-collector output.
Q5. Is it suitable for harsh industrial environments?
Yes. IP67 protection and metal housing make it suitable for demanding conditions.
