Autonics FX4S-1P4 Counter Timer

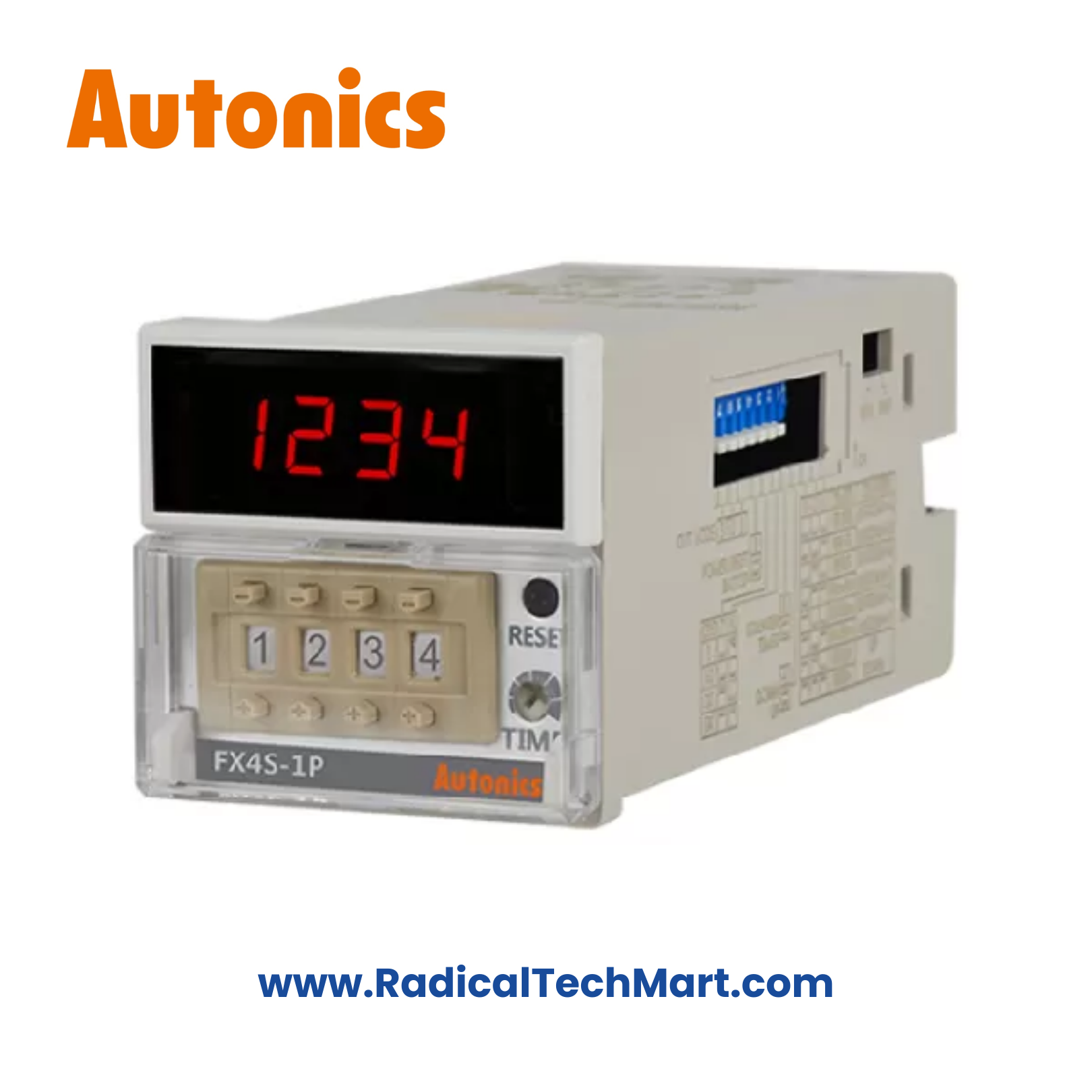

Autonics FX4S-1P4 Digital Counter Timer (4-Digit, 1-Stage Preset, 100–240V AC)
Autonics FX4S-1P4 is a 4-digit digital counter and timer with 1-stage preset output, designed for reliable counting and timing control in AC-powered industrial automation panels.
The Autonics FX4S-1P4 is a 4-digit digital counter and timer from the FXS series, designed for flexible counting and timing control in industrial automation systems. It supports counter and timer modes, multiple input and output operation modes, and 1-stage preset relay output.
With a wide-range AC power supply (100–240V AC) and compact DIN 48 × 48 mm panel size, the FX4S-1P4 is ideal for control panels where reliable and cost-effective counting or timing is required.
Key Features
4-digit LED display
Counter and timer selectable by DIP switch
1-stage preset relay output
Count up / count down / up-down input modes
Selectable NPN (no-voltage) / PNP (voltage) input
Multiple output operation modes (F, N, C, R, K, P, Q, S)
One-shot output time adjustable (0.05 to 5 sec)
High-speed counting up to 5 kcps
DIN 48 × 48 mm panel mount design
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | FX4S-1P4 |
| Display | 4-digit, 7-segment LED |
| Functions | Counter/Timer |
| Preset Output | 1-stage |
| Counting Speed | 1 cps / 30 cps / 2 kcps / 5 kcps |
| Counting Range | −9999 to 9999 |
| Timer Range | 0.01 sec to 9999 hour |
| Input Logic | NPN/PNP selectable |
| Output Type | Relay output (SPDT) |
| Output Rating | 250 VAC, 3 A / 30 VDC, 3 A (resistive) |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Power Consumption | ≤ 4.6 VA |
| Protection Rating | IP20 (front panel) |
| Operating Temperature | −10 to +55 °C |
Applications
Packaging machines
Conveyor counting
Batch counting systems
Machine cycle counting
Process timing control
Industrial automation panels
What’s in the Box?
Autonics FX4S-1P4 Counter Timer
Panel mounting bracket
Instruction manual
FAQs
Q1. What is the difference between the FX4S and CT4S series?
FX4S offers simplified counter/timer functions with DIP switch settings, while CT4S provides advanced programmable features.
Q2. Can FX4S-1P4 work as both a counter and a timer?
Yes. Mode selection is done via DIP switch.
Q3. Does it support NPN and PNP sensors?
Yes. Both NPN (no-voltage) and PNP (voltage) inputs are supported.
Q4. What is the maximum counting speed?
Up to 5 kcps.
Q5. Is the front panel waterproof?
No. The protection rating is IP20 (panel-mounted indoor use).
