Autonics MX4W-V-F1 Digital Panel Meter

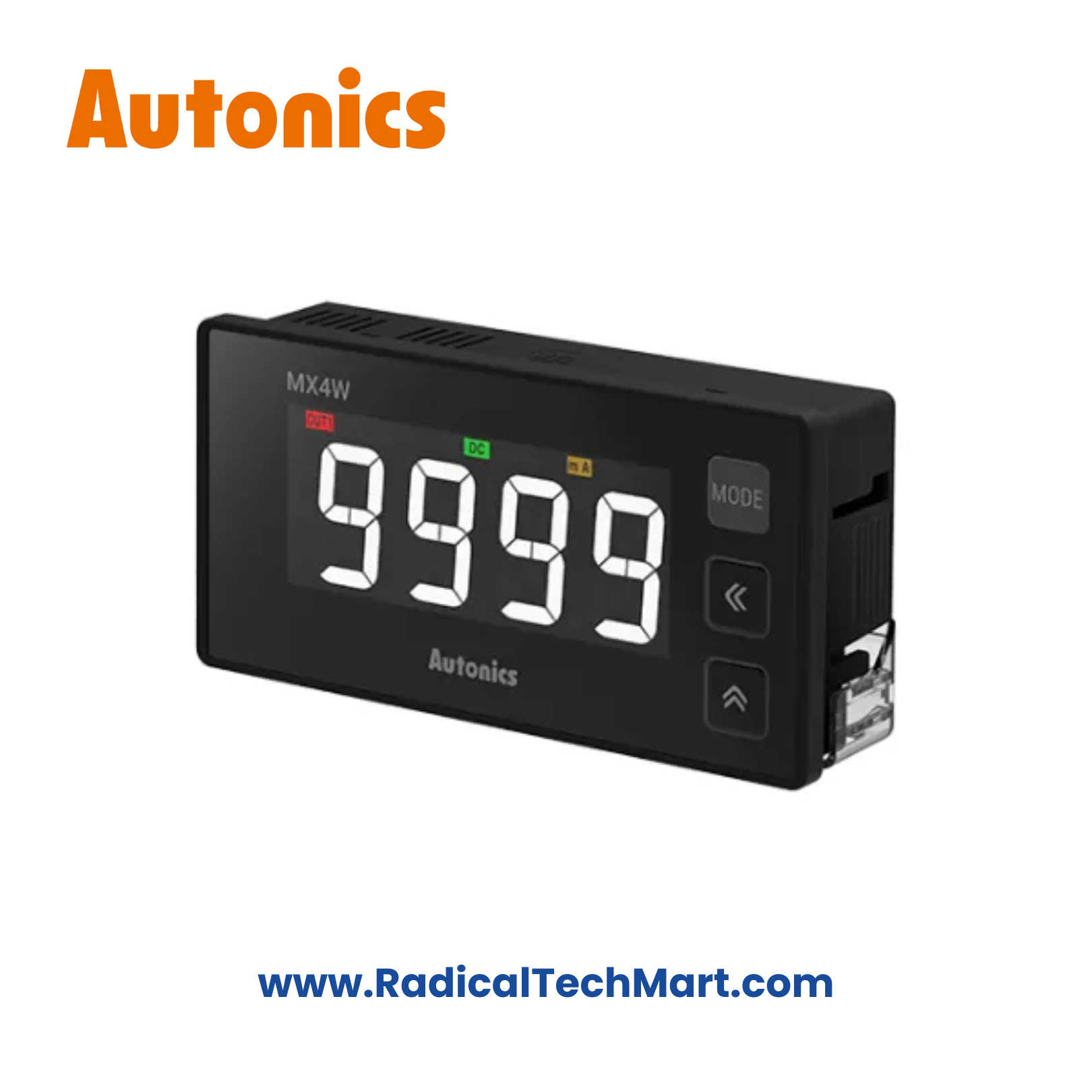

Autonics MX4W-V-F1 AC/DC Voltage LCD Panel Meter with NPN Output
Ultra-compact 96×48 mm LCD panel meter for AC & DC voltage measurement with NPN open-collector preset output.
Ideal for compact electrical panels, OEM machinery, and voltage alarm applications.
The Autonics MX4W-V-F1 is a compact LCD voltage panel meter designed for accurate AC and DC voltage measurement in industrial and OEM control panels. With its ultra-short rear depth and NPN open-collector preset output, it is ideal for space-limited enclosures requiring voltage monitoring and alarm signaling.
Key Features
Measures AC & DC voltage up to 500 V
Clear 12-segment LCD display with large characters
NPN open-collector preset output (OUT1)
Ultra-compact design with approx. 20 mm rear depth
Supports scaling, peak monitoring, and zero adjustment
Wide power supply: 24–240 VAC / VDC
IP54 front protection (panel mounted)
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MX4W-V-F1 |
| Input Type | AC/DC Voltage |
| Max Allowable Input | Up to 500 VAC / VDC |
| Display Range | −9999 to 9999 |
| Display Type | LCD, 12-segment |
| Character Height | Approx. 19 mm |
| Accuracy (23 ±5 °C) | ±0.1% F.S. (DC), ±0.3% F.S. (AC) |
| Output Type | NPN open-collector |
| Output Capacity | ≤ 30 VDC, ≤ 100 mA |
| Power Supply | 24–240 VAC / VDC |
| Protection Rating | IP54 (front) |
| Operating Temperature | −10 to +50 °C |
Applications
Electrical & power distribution panels
AC/DC voltage monitoring
OEM machinery panels
Compact automation enclosures
Test benches & R&D setups
Alarm & limit monitoring systems
What’s in the Box?
Autonics MX4W-V-F1 Panel Meter
Panel mounting brackets (2 pcs)
Terminal protection cover
Instruction manual
FAQ
Q1. Can MX4W-V-F1 measure both AC and DC voltage?
Yes, it supports both AC and DC voltage measurement.
Q2. What type of output does this model provide?
It provides NPN open-collector preset output.
Q3. Is it suitable for compact panels?
Yes, the rear depth is approx. 20 mm, ideal for space-limited panels.
Q4. Can scaling be configured?
Yes, scaling and decimal point adjustment are supported.
Q5. What is the panel cut-out size?
Standard 92 × 45 mm panel cut-out.
