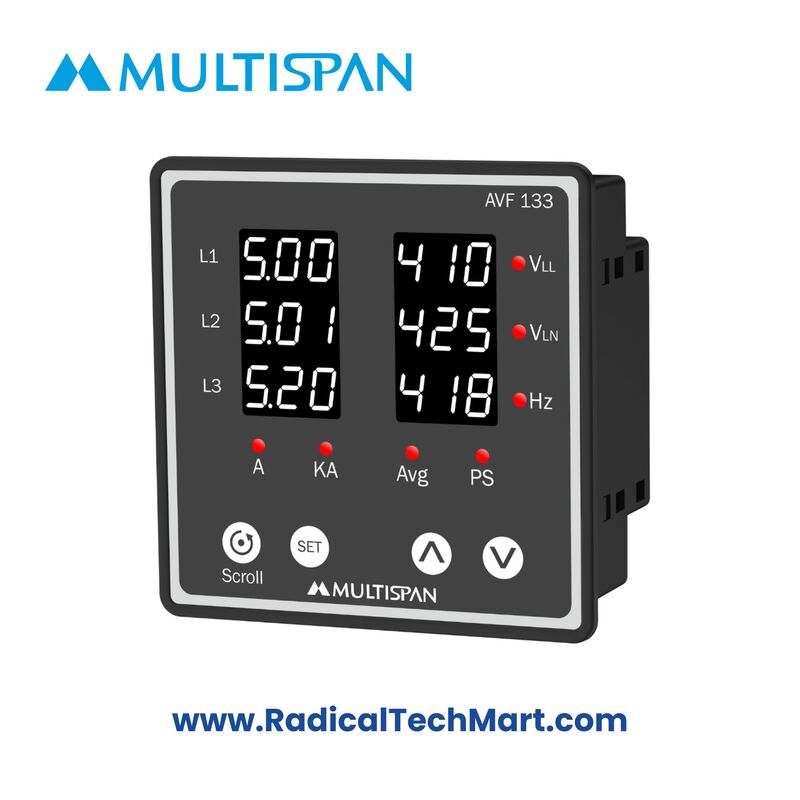

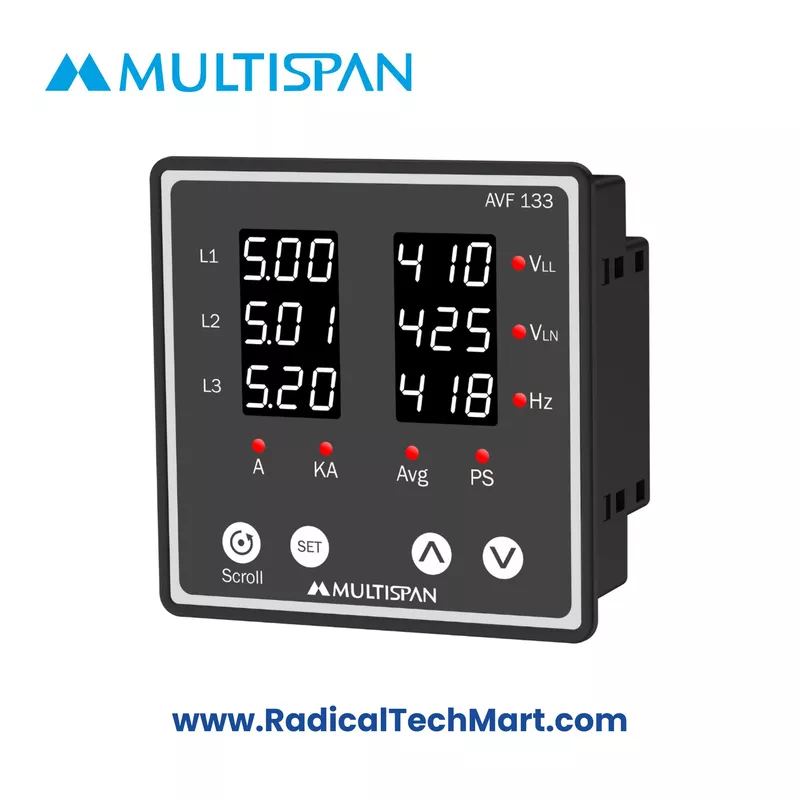

Multispan AVF-133 3-Phase VAF Digital Panel Meter
Compact 96×96 mm 3-phase VAF meter with 6-line LED display, programmable CT up to 10000/5A, phase sequence, RPM and load hour indication for industrial panels.
The Multispan AVF-133 is a compact, high-accuracy 3-phase VAF panel meter for monitoring voltage, current and frequency in industrial electrical systems. With a 6-line red LED display, programmable CT ratio up to 10000/5A, and support for multiple wiring configurations, it is ideal for modern control and distribution panels.
Key Features
3-in-1 Measurement: Measures voltage (L–L & L–N), all phase currents and frequency
High-Visibility Display:3-digit, 6-line red LED display (0.36") for simultaneous parameter view
Wide CT Range:Programmable CT ratio up to 10000/5A for LV and MV applications
Multiple Wiring Systems: Supports 1Ø-2W, 3Ø-3W, 3Ø-4W wiring
Advanced Indications:Phase sequence, RPM, and load hour indication for enhanced diagnostics
Accuracy Class 0.5: Suitable for industrial and utility monitoring
User-Friendly Interface: Tactile front keys and menu-based navigation
Rugged Front Protection:IP65 front rating for dust and splash resistance
Compact Size: 96 × 96 × 52 mm panel mount, 92 × 92 mm cutout
Technical Specifications (Table)
| Parameter | Specification |
|---|---|
| Model | AVF-133 |
| Measured Parameters | Voltage (L–L, L–N), All Phase Current, Frequency, RPM, Load Hours, Phase Sequence |
| Display | 3-digit, 6-line red LED, 0.36" |
| Accuracy Class | Class 0.5 (V, A, Hz) |
| CT Ratio | Programmable 5/5A to 10000/5A |
| Wiring Types | 1Ø-2W, 3Ø-3W, 3Ø-4W |
| Front Protection | IP65 (front side) |
| Panel Size | 96 × 96 × 52 mm |
| Panel Cutout | 92 × 92 mm |
| Indications | Phase sequence, RPM, Load hours |
| Power Supply | Typically 230V AC, 50Hz (confirm as per datasheet) |
| Mounting | Panel mount with clamps |
Adjust the power supply line if your datasheet says something different.
Applications
Electrical control panels
Industrial automation and MCC panels
Power distribution units and feeder panels
HVAC control systems
Pump and motor starter panels
OEM industrial panel manufacturing
What’s in the Box?
1 × Multispan AVF-133 3-Phase VAF Panel Meter
Panel mounting clamps/hardware
Quick configuration and wiring leaflet
Warranty/support information
FAQ
Q1. Which types of systems are supported by the AVF-133?
It supports 1-phase 2-wire, 3-phase 3-wire, and 3-phase 4-wire systems for flexible use across different panel types.
Q2. Can I adjust the CT ratio for different loads?
Yes, the CT ratio is programmable from 5/5A up to 10000/5A, making it suitable for a wide range of current ratings.
Q3. What protection does the front of the meter have?
The front offers IP65 protection, providing resistance against dust and low-pressure water jets when properly installed.
Q4. Does AVF-133 show only basic V, A, and Hz or more parameters?
In addition to voltage, current, and frequency, it also provides phase sequence indication, RPM indication, and load hour counting.
Q5. Is AVF-133 suitable for industrial panels?
Yes, with Class 0.5 accuracy, IP65 front protection, and a compact 96×96 size, it is well-suited for industrial and OEM panels.
