AVF-29T Multispan

Product Summary:

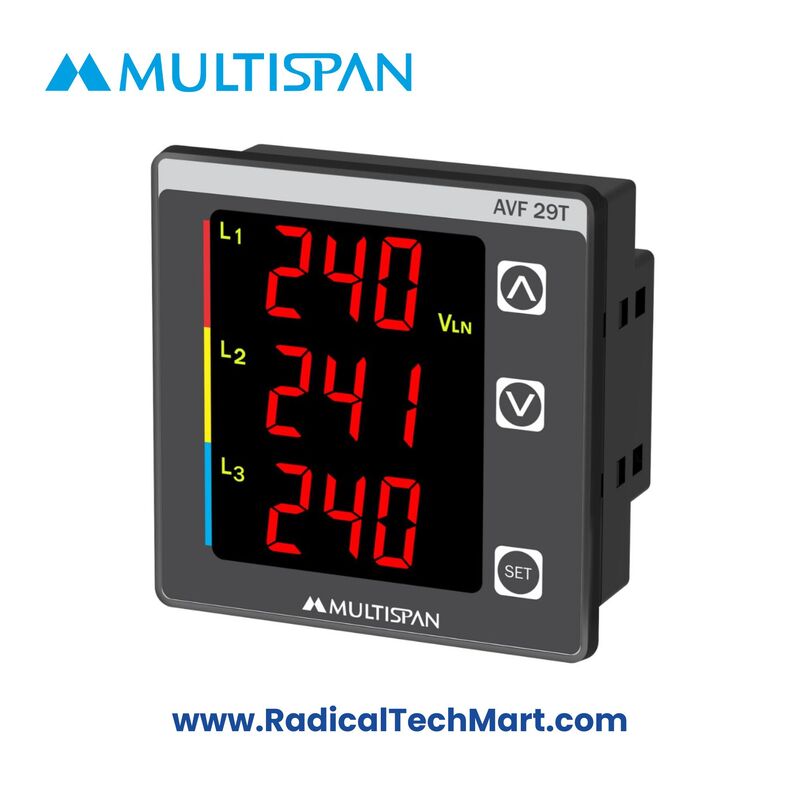

The Multispan AVF-29T is a high-precision, panel-mount 3-phase AVF meter with selectable CT/PT ratios. Designed for versatile industrial applications, it features a 3-digit, 3-line LED display and supports both 3Ø and 1Ø configurations.

Key Features:

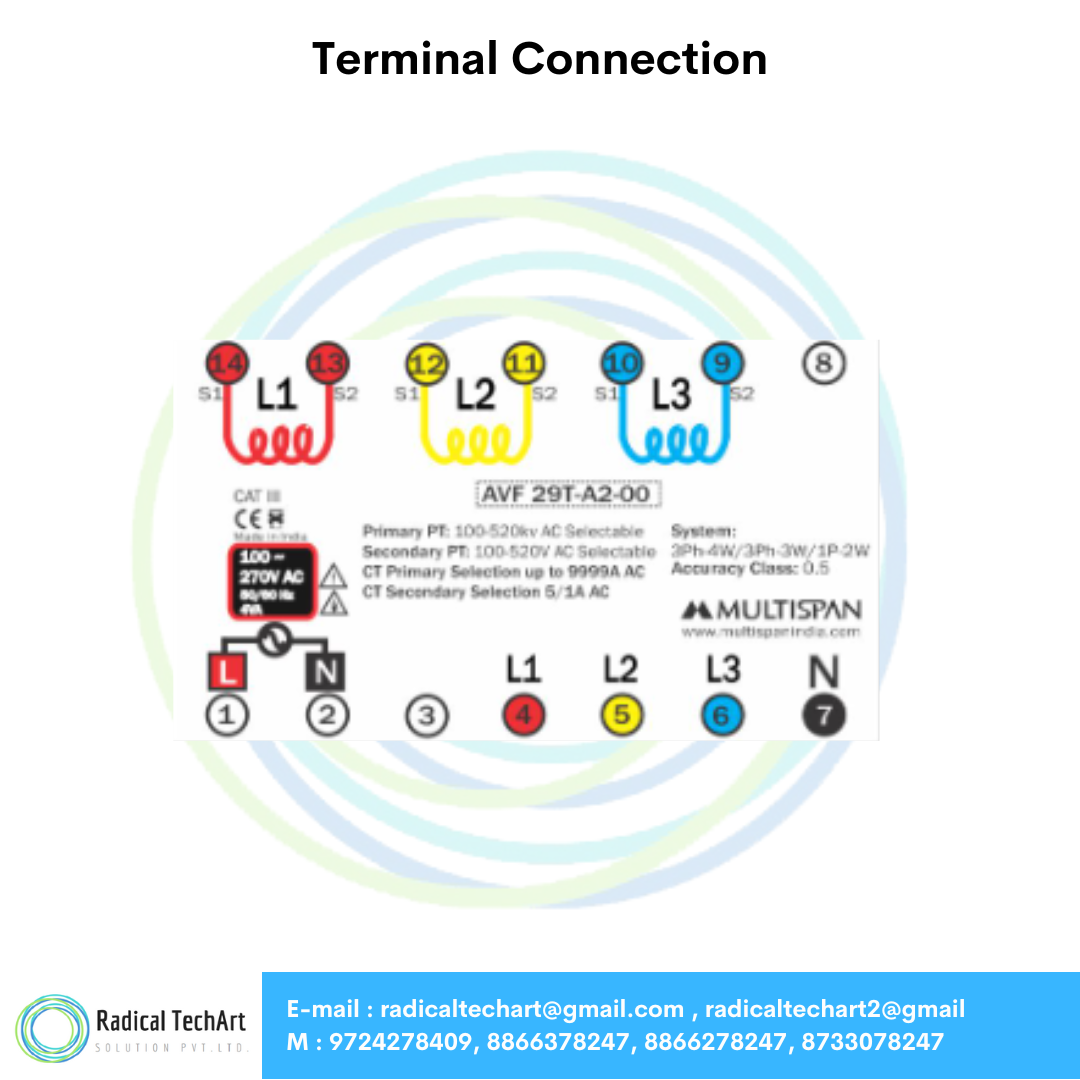

• 3Ø-3W/4W & 1Ø-2W selectable configuration

• Large 3-digit, 3-line 0.59” red LED display

• CT Primary up to 9999A, CT Secondary: 5A/1A selectable

• PT Primary up to 520kV, PT Secondary 50–520V AC

• Voltage range: 30–300V (L-N), 50–520V (L-L)

• Supports VLL, VLN, Avg Voltage, Amps, Frequency, RPM

• DIN 72x72mm with 68x68mm cutout

• Class 0.5 accuracy for precision monitoring

• IP-65 protection (front side on request)

• Aux power: 100–270V AC/DC, 50/60 Hz

Applications:

• Industrial electrical panels and switchboards

• Power distribution and substation automation

• Generator and transformer monitoring

• HVAC and pump control panels

• Commercial buildings and process plants

Product Benefits:

• Compact DIN panel size with easy installation

• Multi-line LED display enables real-time 3-phase viewing

• Customizable CT/PT ratios for versatile electrical systems

• Durable for harsh environments with IP-65 front protection

• High accuracy ensures reliable power quality monitoring

FAQs:

Q1. Can I use the AVF-29T in a single-phase system?
A1. Yes, it supports 1Ø-2W as well as 3Ø-3W/4W systems, making it suitable for both types of electrical setups.

Q2. What is the maximum CT and PT range supported?
A2. CT Primary is selectable up to 9999A; PT Primary is programmable from 100V to 520kV for maximum compatibility.

Q3. Is the display visible in low-light environments?
A3. Absolutely, the 3-digit, 3-line 0.59” red LED display provides excellent visibility even in dim conditions.
