AVH-13N Multispan

Product Summary:

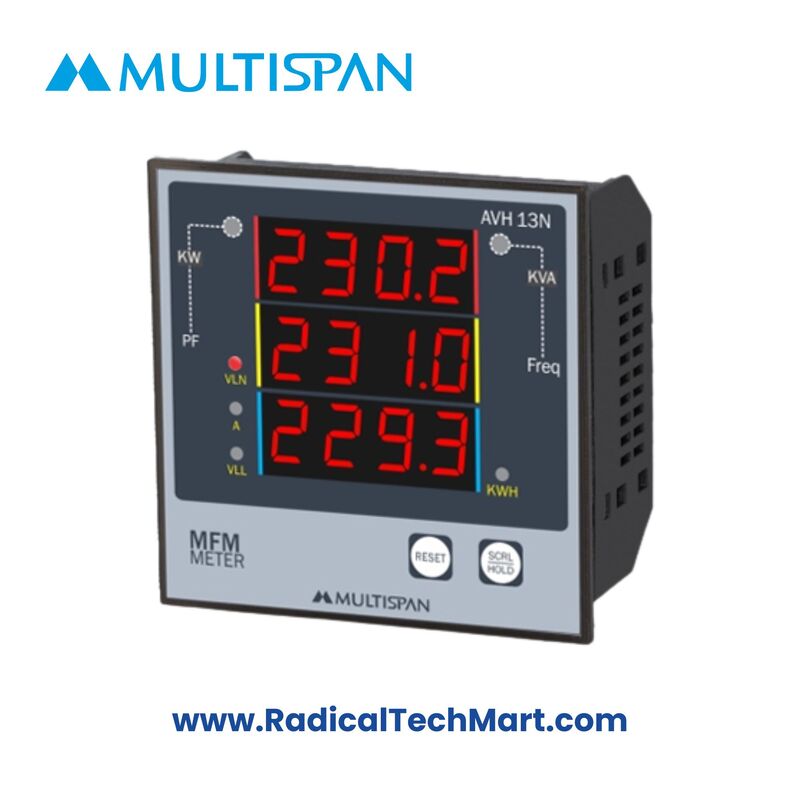

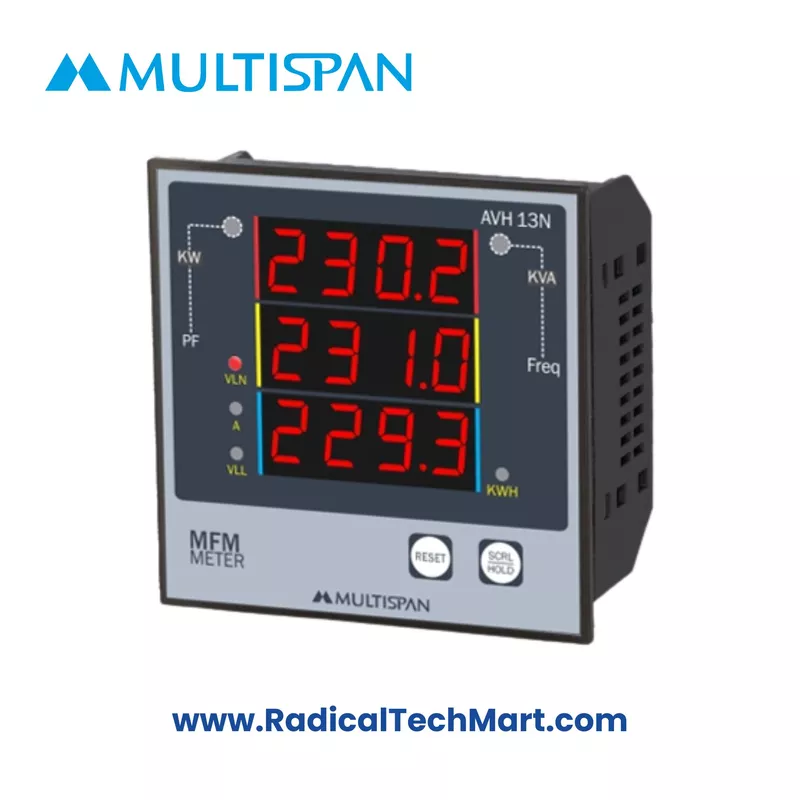

The AVH-13N Multifunction Energy Meter is a compact 96x96mm panel-mounted device designed to accurately monitor key 3-phase electrical parameters, including voltage, current, frequency, active energy, power factor, and more. Ideal for industrial automation and energy management applications.

Key Features:

• Measures voltage (L-N & L-L), current, power, energy, PF & frequency

• Supports direct measurement up to 6A without CT

• Programmable CT ratio up to 4000A

• 3-line, 4-digit, 7-segment red LED display

• Direct 3-phase 4-wire input system

• Compact size with 96x96 mm panel cutout

• Low burden and high accuracy

• Built-in auxiliary supply: 230V AC, 50Hz

Applications:

• Electrical distribution panels

• Industrial machinery panels

• Commercial and utility energy monitoring

• HVAC and building management systems

• Power factor correction panels

Product Benefits:

• Enables efficient energy usage monitoring

• Reduces manual energy tracking errors

• Compact design fits into standard panels

• Easy to configure and install

• Enhances electrical system diagnostics

FAQs:

Q1. What parameters can the AVH-13N measure?
A1. It can measure voltage (phase-neutral and phase-phase), current, power (kW), energy (kWh), power factor, apparent power (kVA), and frequency.

Q2. Can it be used without an external CT?
A2. Yes, it supports direct current measurement up to 6A without CT and allows programmable CT ratios for higher ranges.

Q3. Is it suitable for three-phase systems?

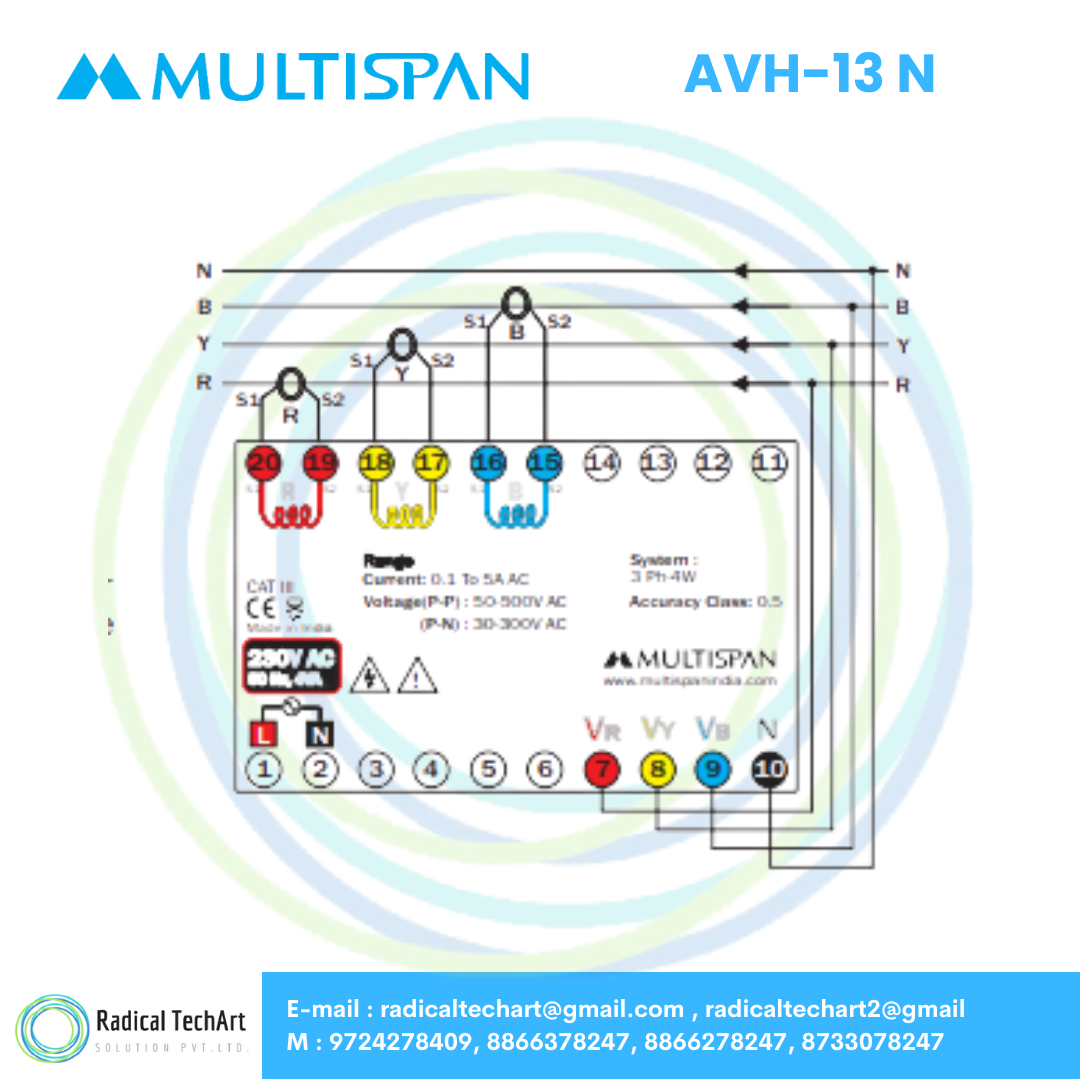

A3. Yes, it supports direct connection to 3-phase 4-wire systems for accurate measurement.
