AX Series Pressure Gauges
Customize
Share :
A. Product Overview

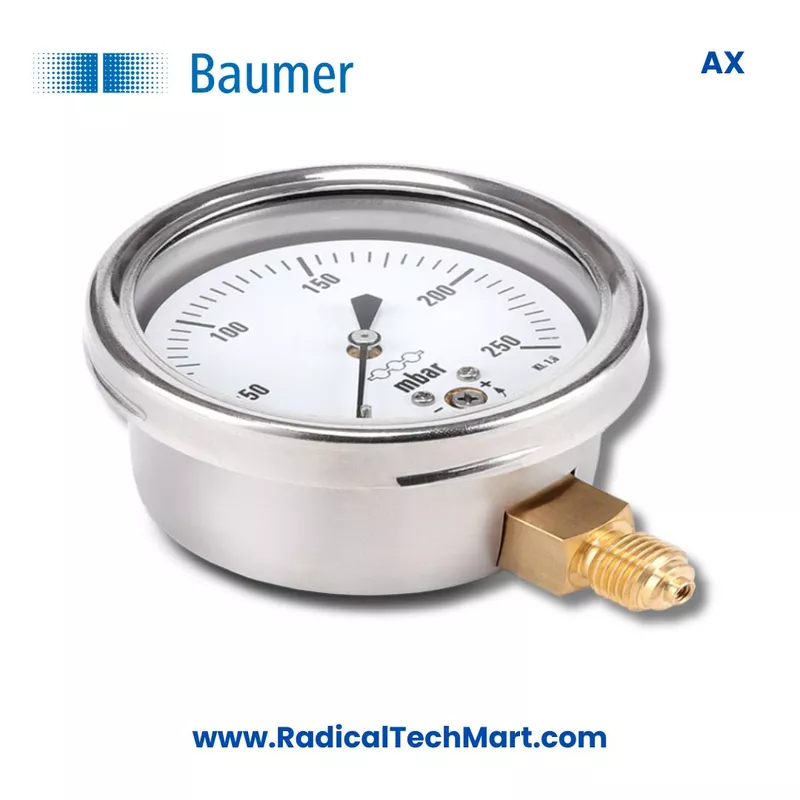

Baumer AX series pressure gauge is a capsule type low pressure gauge used for measuring small pressure values in mbar, mmWC and other low pressure scales. It is suitable for applications where standard bourdon tube pressure gauges may not provide sensitive measurement at very low pressure levels.
The gauge is built with an AISI 304 stainless steel case and bayonet type bezel, giving it better durability for industrial environments. The capsule, socket and movement are made from copper alloy, making it suitable for clean, dry and non-corrosive media. It is available in standard dial sizes of 63 mm, 100 mm, 125 mm and 150 mm.
The Baumer AX capsule gauge offers 1.6 percent full scale accuracy, IP55 protection, sheet glass window, aluminum dial with black graduation on white background and zero adjustment provision. It follows EN 837-3 standard and is commonly used in food and beverages, pharmaceutical, brewery, conventional power plant and nuclear power plant applications.
B. Working Principle
The Baumer AX pressure gauge works on the capsule measuring principle. Inside the gauge, a thin metal capsule expands or contracts when low pressure is applied. This movement is transferred through the internal mechanism to the pointer, which shows the pressure reading on the dial.
Because the capsule element is highly sensitive, it can detect very small pressure changes more accurately than a normal bourdon tube gauge in low pressure ranges. This makes it suitable for mbar, mmWC, inWC, kPa, mmHg and similar low pressure scale applications.
C. Why It Is Used
Baumer AX series capsule pressure gauge is used when the pressure value is very low and accurate visual indication is required. It is ideal for measuring draft pressure, clean air pressure, gaseous pressure and low viscous non-corrosive media.
It is used because it offers stable low pressure measurement, compact construction, easy dial reading and zero adjustment facility. The stainless steel case provides protection in industrial environments, while the copper alloy capsule measuring system gives reliable performance for clean and non-corrosive service.
This gauge should be selected for clean media applications where the pressure system will not get blocked. It is not suitable for corrosive media, high viscous fluids, pulsating pressure or over pressure conditions.
D. Suitable Buyers
Baumer AX capsule pressure gauge is suitable for purchase managers, instrumentation engineers, maintenance engineers, project engineers, OEMs, system integrators, panel builders, plant operators and industrial equipment suppliers.
It is commonly purchased by companies working in food and beverages, pharmaceutical plants, breweries, clean air systems, HVAC duct pressure monitoring, filter monitoring, draft measurement, laboratory equipment, conventional power plants and nuclear power plant applications.
FAQ
- What is Baumer AX pressure gauge used for?
Baumer AX pressure gauge is used for low pressure measurement in clean air, gaseous media, low viscous liquid and non-corrosive media. It is especially useful for low pressure draft measurement and mbar range applications.
- What type of pressure gauge is Baumer AX?
Baumer AX is a capsule type pressure gauge. It uses a capsule sensing element to measure very low pressure ranges accurately.
- What is the pressure range of Baumer AX capsule gauge?
Baumer AX capsule pressure gauge is available in low pressure ranges from 25 mbar to 600 mbar. It can also be supplied in scales such as mmWC, kPa, inWC, MWC, inHg, mmHg and dual scale as per requirement.
- What is the accuracy of Baumer AX pressure gauge?
The Baumer AX capsule type pressure gauge has an accuracy of 1.6 percent of full scale.
- Which material is used in Baumer AX pressure gauge?
Baumer AX pressure gauge has an AISI 304 stainless steel case and ring. The capsule, socket and movement are made from copper alloy.
- Is Baumer AX pressure gauge suitable for corrosive media?
No, Baumer AX is suitable for clean air, gaseous media, low viscous liquid and non-corrosive media. For corrosive media, a different pressure gauge with suitable wetted material or diaphragm seal should be selected.
- What are the dial size options in Baumer AX series?
Baumer AX capsule pressure gauge is available in standard nominal sizes of 63 mm, 100 mm, 125 mm and 150 mm.
- Does Baumer AX pressure gauge have zero adjustment?
Yes, Baumer AX pressure gauge has provision for zero adjustment, which helps in correcting pointer position when required.
- What standard does Baumer AX pressure gauge follow?
Baumer AX capsule type pressure gauge generally follows EN 837-3 standard.
- Where can Baumer AX capsule pressure gauge be used?
It can be used in food and beverages, pharmaceutical, breweries, clean air systems, HVAC systems, conventional power plants, nuclear power plants and other industrial low pressure measurement applications.
