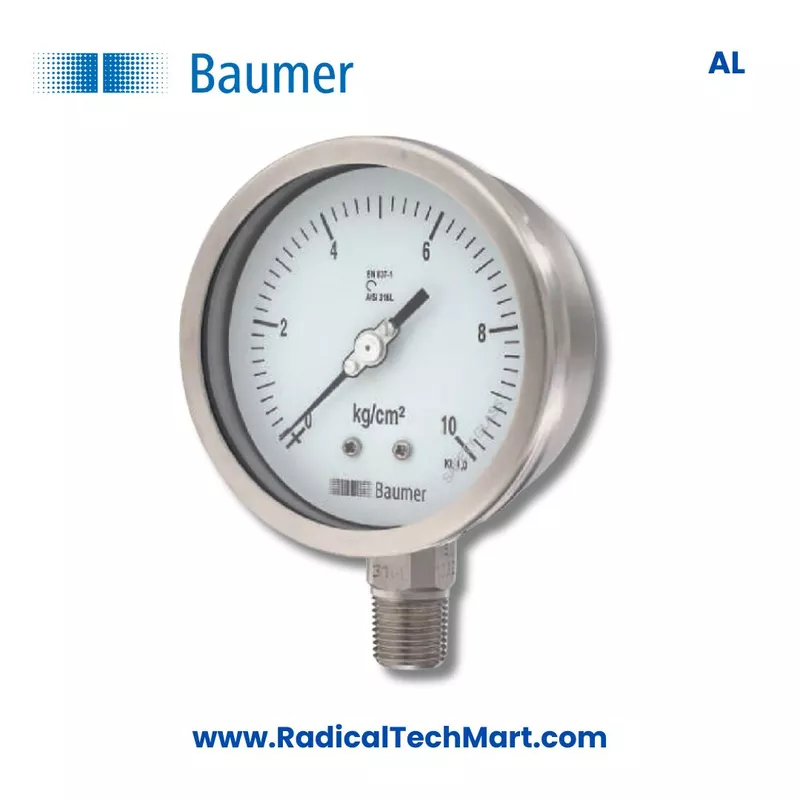

Baumer AL Heavy Duty SS Pressure Gauge - DN 100/125/150/200/250 mm

A. Product Overview

The Baumer AL Heavy Duty Pressure Gauge is a stainless steel industrial pressure gauge suitable for demanding pressure measurement applications in process plants, hydraulic systems, power plants, chemical industries and heavy machinery. It is designed for users who require a robust, accurate and long-lasting mechanical pressure gauge for vacuum and high pressure applications.

This model is available in DN 100, 125, 150, 200 and 250 mm dial sizes, making it suitable for different installation and readability requirements. The pressure range is available from -1 to 0 bar for vacuum measurement and 0 to 1600 bar for pressure measurement. It has accuracy class 1.0, with optional accuracy class 0.5 for applications requiring higher precision.

The gauge comes with an AISI 304 stainless steel bayonet type case, with optional AISI 316 stainless steel case. It uses an AISI 316L stainless steel sensing element and AISI 316L stainless steel process connection, with optional Monel for selected corrosive media applications.

Key Specifications:

Product: Baumer AL Heavy Duty Pressure Gauge
Dial Size: DN 100, 125, 150, 200 and 250 mm
Pressure Range: -1 to 0 bar and 0 to 1600 bar
Accuracy Class: 1.0, optional 0.5
Case Material: AISI 304 stainless steel, optional AISI 316 stainless steel
Case Type: Bayonet type
Sensing Element Material: AISI 316L stainless steel, optional Monel
Process Connection Material: AISI 316L stainless steel, optional Monel
Process Connections: 3/8 inch BSP male, 1/2 inch BSP male and 1/2 inch NPT male
Mounting Type: 1, 2, 3, 4, 5, 6, 9 and 11 for DN 100 to 150 mm only
Protection Class: IP65, optional IP66, IP67 and IP68
Approval: IBR and CE for NS 100 and NS 150 mm up to 1000 bar
Reference Standard: EN 837-1 and ASME B40.100 for NS 125 mm

B. Working Principle

The Baumer AL Pressure Gauge works on the Bourdon tube pressure measurement principle. When pressure enters the gauge through the process connection, the pressure acts on the internal stainless steel sensing element.

As the pressure increases, the sensing element changes its shape slightly. This mechanical movement is transferred through an internal movement mechanism to the pointer. The pointer moves over the calibrated dial and displays the pressure reading.

For vacuum applications, the gauge measures pressure below atmospheric pressure in the -1 to 0 bar range. For positive pressure applications, it can measure pressure up to 1600 bar, depending on the selected pressure range.

Since it is a mechanical analog pressure gauge, it does not require external power supply for local pressure indication.

C. Why It Is Used

The Baumer AL Heavy Duty Stainless Steel Pressure Gauge is used to monitor pressure in industrial systems where reliability, accuracy and strong construction are important. It helps plant operators and maintenance teams check whether pressure is within the safe operating range.

It is mainly used because:

It supports both vacuum and high pressure measurement.
It is available up to 1600 bar for demanding industrial applications.
The stainless steel case provides durability in harsh environments.
The AISI 316L stainless steel sensing element improves media compatibility.
The large dial sizes provide clear pressure reading from a distance.
The bayonet type case gives strong mechanical protection.
The IP65 protection class helps protect the gauge from dust and water ingress.
Optional IP66, IP67 and IP68 protection makes it suitable for tougher environments.
Optional accuracy class 0.5 is useful for more precise pressure monitoring.
IBR and CE approvals make it suitable for selected certified industrial applications.
The gauge follows EN 837-1 and ASME B40.100 reference standards.

D. Suitable Buyers

The Baumer AL Industrial Stainless Steel Pressure Gauge is suitable for buyers who need a heavy duty pressure gauge for industrial pressure monitoring, high pressure systems and process applications.

Suitable buyers include:

Instrumentation engineers
Maintenance engineers
Purchase managers
Process plant operators
Hydraulic system manufacturers
Chemical industry users
Pharmaceutical industry users
Petrochemical plants
Power plant maintenance teams
Boiler and utility system users
Oil and gas industry buyers
Machine manufacturers
Pump and compressor manufacturers
System integrators
Panel builders
MRO suppliers
Industrial traders and resellers
Pressure gauge dealers
EPC contractors
Boiler and pressure system service providers

FAQ

1. What is the Baumer AL Pressure Gauge used for?
The Baumer AL Pressure Gauge is used for industrial pressure measurement in process systems, hydraulic systems, machinery, utilities, chemical plants, power plants and high pressure applications.

2. What dial sizes are available in the Baumer AL Pressure Gauge?
The gauge is available in DN 100, 125, 150, 200 and 250 mm dial sizes.

3. What is the pressure range of the Baumer AL Heavy Duty Pressure Gauge?
The pressure range is available from -1 to 0 bar for vacuum measurement and 0 to 1600 bar for positive pressure measurement.

4. What is the accuracy class of this pressure gauge?
The standard accuracy class is 1.0. Optional accuracy class 0.5 is available for higher precision applications.

5. What is the case material of the Baumer AL Pressure Gauge?
The standard case material is AISI 304 stainless steel. AISI 316 stainless steel case is available as an option.

6. What type of case does this gauge have?
The Baumer AL Pressure Gauge has a bayonet type case.

7. What is the sensing element material?
The sensing element is made from AISI 316L stainless steel. Monel is available as an option.

8. What is the process connection material?
The process connection is made from AISI 316L stainless steel. Monel is available as an option.

9. Which process connections are available?
Available process connections include 3/8 inch BSP male, 1/2 inch BSP male and 1/2 inch NPT male.

10. Is the Baumer AL Pressure Gauge suitable for high pressure applications?
Yes, it is suitable for high pressure applications with pressure ranges available up to 1600 bar.

11. Is this gauge suitable for vacuum measurement?
Yes, this gauge is suitable for vacuum measurement with a range of -1 to 0 bar.

12. What is the protection class of the Baumer AL Pressure Gauge?
The standard protection class is IP65. Optional IP66, IP67 and IP68 protection classes are available.

13. Does this pressure gauge have IBR and CE approval?
Yes, IBR and CE approval are available for NS 100 and NS 150 mm up to 1000 bar.

14. Which standards does the Baumer AL Pressure Gauge follow?
The gauge follows EN 837-1 and ASME B40.100 for NS 125 mm.

15. Where can the Baumer AL Heavy Duty Pressure Gauge be used?
It can be used in chemical plants, petrochemical plants, pharmaceutical plants, hydraulic systems, power plants, utilities, pumps, compressors, boilers, turbines and industrial machinery.

16. Is this gauge suitable for corrosive media?
It can be suitable for many industrial media due to AISI 316L stainless steel wetted parts. For more aggressive or corrosive media, optional Monel construction can be considered based on media compatibility.

17. Does this pressure gauge need power supply?
No, it is a mechanical analog pressure gauge and does not require external power supply for pressure indication.

18. Who should buy the Baumer AL Stainless Steel Pressure Gauge?
It is suitable for industrial buyers, instrumentation teams, maintenance departments, OEMs, EPC contractors, pressure system users and process industry buyers who need a reliable heavy duty stainless steel pressure gauge.
