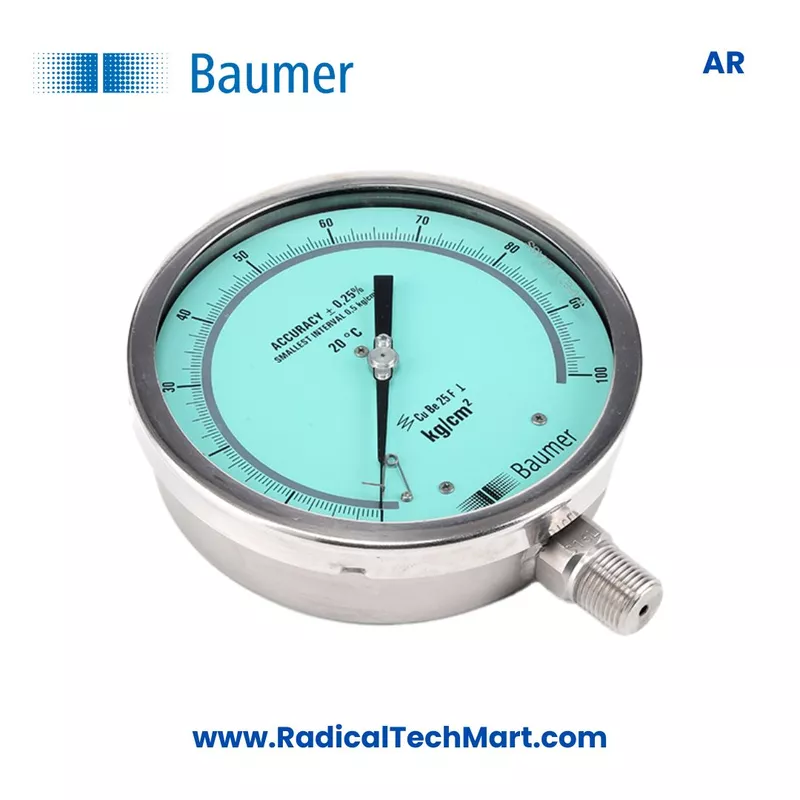

Baumer AR Precision Test Pressure Gauge - DN 150/200/250 mm

A. Product Overview

The Baumer AR Precision Pressure Gauge is designed for applications where accurate and reliable pressure measurement is required. It is available in DN 150 mm, 200 mm and 250 mm dial sizes, making it suitable for clear reading in laboratories, test benches, calibration setups and industrial plants.

This gauge offers a pressure range from -1 to 0 bar and 0 to 1000 bar with accuracy class 0.25, making it ideal for precision measurement applications. The case is made from AISI 304 stainless steel with bayonet type construction, and optional AISI 316 stainless steel case is available for more corrosive or demanding environments.

The sensing element is made from beryllium copper, while the process connection is made from AISI 316L stainless steel, providing strength, durability and compatibility with industrial applications. Available process connections include 1/4 inch NPT male, 1/2 inch BSP male and 1/2 inch NPT male.

The Baumer AR gauge supports mounting types 1, 2, 3, 5 and 9, giving flexibility for panel, bottom and other installation requirements. It comes with IP65 protection, with optional IP66 and IP67 protection for dusty, wet and outdoor environments. The gauge follows EN 837-1 reference standard.

B. Working Principle

The Baumer AR Precision Pressure Gauge works on the mechanical Bourdon tube pressure measurement principle. When pressure enters through the process connection, it acts on the sensing element inside the gauge.

The beryllium copper sensing element deforms according to the applied pressure. This movement is transferred through the internal mechanical movement system to the pointer. The pointer then moves across the dial and displays the measured pressure value.

Because this model has accuracy class 0.25, the internal mechanism and dial scale are designed for precise reading. Larger dial sizes such as 150 mm, 200 mm and 250 mm help reduce reading error and make the gauge suitable for testing and calibration use.

C. Why It Is Used

The Baumer AR Precision Pressure Gauge is used when normal industrial gauges are not accurate enough. It is suitable for applications where pressure readings must be highly reliable, repeatable and easy to verify.

It is commonly used for pressure testing, calibration comparison, process validation, inspection work, laboratory measurement and high-accuracy industrial pressure monitoring. The large dial size and accuracy class 0.25 make it useful for checking other gauges, pressure transmitters, pressure switches and process instruments.

The stainless steel case improves durability, while the AISI 316L stainless steel process connection provides corrosion resistance at the process side. Optional IP66 and IP67 protection make it suitable for harsh industrial environments.

D. Suitable Buyers

The Baumer AR Precision Pressure Gauge is suitable for:

Calibration laboratories, testing laboratories, instrumentation engineers, quality control departments, process industries, pressure gauge calibration service providers, industrial maintenance teams, OEM machine builders, hydraulic testing system manufacturers, compressor testing units, pump testing units, boiler inspection teams, pharmaceutical plants, chemical plants, petrochemical plants, power plants, EPC contractors, system integrators, pressure gauge dealers and industrial purchase departments.

It is also suitable for buyers searching for Baumer AR pressure gauge, precision pressure gauge, test pressure gauge, accuracy class 0.25 pressure gauge, DN 150 pressure gauge, DN 200 pressure gauge, DN 250 pressure gauge or calibration pressure gauge.

FAQ

1. What is the Baumer AR Precision Pressure Gauge used for?

The Baumer AR Precision Pressure Gauge is used for accurate pressure measurement, calibration, testing, inspection and industrial pressure monitoring.

2. What dial sizes are available in this model?

This model is available in DN 150 mm, DN 200 mm and DN 250 mm dial sizes.

3. What is the pressure range of the Baumer AR gauge?

The pressure range is available from -1 to 0 bar and 0 to 1000 bar.

4. What is the accuracy class of this gauge?

The Baumer AR Precision Pressure Gauge has accuracy class 0.25, making it suitable for high-accuracy applications.

5. What is the case material of the Baumer AR pressure gauge?

The case is made from AISI 304 stainless steel with bayonet type construction. Optional AISI 316 stainless steel case is also available.

6. What is the sensing element material?

The sensing element is made from beryllium copper.

7. What is the process connection material?

The process connection is made from AISI 316L stainless steel.

8. Which process connections are available?

Available process connections include 1/4 inch NPT male, 1/2 inch BSP male and 1/2 inch NPT male.

9. What mounting types are available?

The gauge is available with mounting types 1, 2, 3, 5 and 9, depending on installation requirements.

10. What is the protection class of this pressure gauge?

The standard protection class is IP65. Optional IP66 and IP67 protection is available.

11. Which standard does this gauge follow?

The Baumer AR Precision Pressure Gauge follows EN 837-1 reference standard.

12. Is this gauge suitable for calibration labs?

Yes, due to its accuracy class 0.25 and large dial options, it is suitable for calibration laboratories and pressure testing applications.

13. Is the Baumer AR gauge suitable for industrial use?

Yes, it is suitable for industrial use, especially where accurate and reliable pressure measurement is required.

14. Why is a larger dial size useful in precision gauges?

A larger dial size improves readability and helps reduce manual reading errors, which is important in testing and calibration applications.

15. Who should buy the Baumer AR Precision Pressure Gauge?

This gauge is suitable for calibration labs, instrumentation engineers, quality teams, testing departments, process plants, OEMs, maintenance teams and industrial pressure gauge suppliers.
