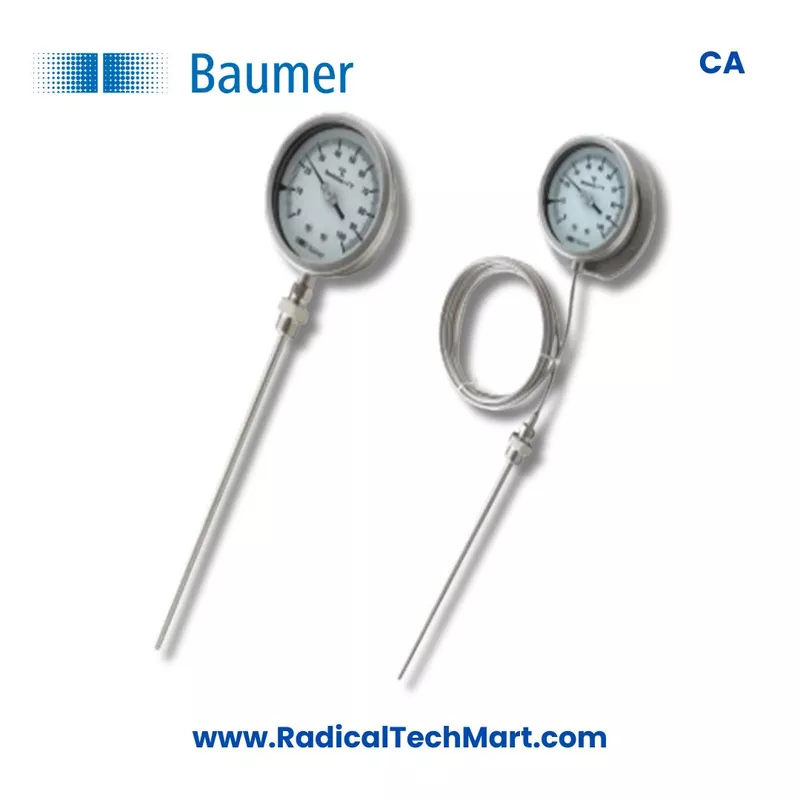

Baumer CA Gas Filled Temperature Gauge
Baumer CA gas filled temperature gauge is a stainless steel industrial temperature gauge designed for accurate local and remote temperature measurement in process applications. It is available in 100, 125, 150, 200 and 250 mm nominal sizes, with temperature range from -80 to 600 degree C, Class 1.0 accuracy, AISI 316 SS sensing element, multiple mounting options and capillary length from 1 to 15 meters.
Download the Datasheet here!!
Customize
Share :
A. Product Overview
Baumer CA gas filled temperature gauge is a mechanical temperature measuring instrument used for industrial and process temperature indication. It is designed for applications where reliable temperature measurement is required in pipelines, tanks, reactors, boilers, heat exchangers and process equipment.
The gauge is available in nominal size options of 100, 125, 150, 200 and 250 mm. It covers a wide temperature range from -80 to 600 degree C and offers accuracy class 1.0 as per EN 13190. The standard case material is AISI 304 SS, with optional AISI 316 SS for demanding industrial environments.
The sensing element is made from AISI 316 SS, which provides strength and corrosion resistance. Stem length starts from 110 mm, and process connection options include 3/8 inch and 1/2 inch BSP or NPT. Mounting options include 1, 2, 3, 5, 8 and 9, making the gauge suitable for different installation requirements.
Baumer CA is supplied with IP65 protection as standard, with optional IP66 and IP67 for higher dust and water resistance. Capillary length from 1 to 15 meters is available for remote temperature measurement applications.
B. Working Principle
Baumer CA gas filled temperature gauge works on the gas expansion principle. The sensing bulb, stem and capillary system are filled with gas. When the process temperature changes, the gas inside the closed system expands or contracts.
This change in gas pressure is transmitted to the internal measuring mechanism of the gauge. The movement converts the pressure change into pointer movement on the dial, allowing the user to read the temperature directly.
In direct mounted models, the stem is installed into the process connection. In capillary type models, the sensing bulb is installed at the process point and the dial can be mounted at a remote location. This is useful when the measuring point is difficult to access, exposed to high temperature, or not suitable for direct viewing.
C. Why It Is Used
Baumer CA gas filled temperature gauge is used for accurate temperature monitoring in industrial process systems. It provides direct temperature indication without requiring electrical power, external display or transmitter wiring.
It is preferred because it offers a wide temperature range from -80 to 600 degree C, Class 1.0 accuracy, stainless steel construction and flexible installation options. The AISI 316 SS sensing element makes it suitable for many liquid, gas and process media applications.
The capillary option is useful for remote indication where the display needs to be placed away from the process connection. Optional IP66 and IP67 protection makes it suitable for outdoor, dusty and wet environments.
Baumer CA is commonly used in chemical plants, pharmaceutical plants, food processing units, refineries, oil and gas plants, power plants, boilers, reactors, process skids, pipelines and utility systems.
D. Suitable Buyers
Baumer CA gas filled temperature gauge is suitable for customers who require a reliable mechanical temperature gauge for industrial temperature measurement.
Suitable buyers include instrumentation engineers, maintenance engineers, purchase departments, project engineers, plant engineers, OEMs, EPC contractors, system integrators, boiler manufacturers, process skid manufacturers, chemical plants, pharmaceutical companies, food and beverage plants, refineries, oil and gas companies and power plants.
It is also suitable for buyers searching for Baumer temperature gauge, gas filled temperature gauge, stainless steel temperature gauge, capillary temperature gauge, industrial thermometer and process temperature gauge.
FAQ
1. What is Baumer CA gas filled temperature gauge used for?
Baumer CA gas filled temperature gauge is used for measuring and displaying temperature in industrial process applications such as tanks, pipelines, reactors, boilers, heat exchangers and process skids.
2. What is the temperature range of Baumer CA temperature gauge?
Baumer CA gas filled temperature gauge is available with temperature range from -80 to 600 degree C.
3. What nominal sizes are available in Baumer CA gas filled temperature gauge?
Baumer CA is available in 100, 125, 150, 200 and 250 mm nominal sizes.
4. What is the accuracy class of Baumer CA temperature gauge?
Baumer CA gas filled temperature gauge has accuracy class 1.0 as per EN 13190.
5. What is the case material of Baumer CA gas filled temperature gauge?
The standard case material is AISI 304 SS. Optional AISI 316 SS case is available for more demanding environments.
6. What is the sensing element material?
The sensing element is made from AISI 316 SS.
7. What stem length is available in Baumer CA temperature gauge?
The stem length starts from 110 mm, depending on the application and installation requirement.
8. What process connections are available?
Baumer CA is available with 3/8 inch and 1/2 inch BSP or NPT process connection options.
9. What mounting options are available in Baumer CA?
Mounting options include 1, 2, 3, 5, 8 and 9.
10. What is the protection class of Baumer CA gas filled temperature gauge?
The standard protection class is IP65. Optional IP66 and IP67 protection are also available.
11. Is capillary available in Baumer CA gas filled temperature gauge?
Yes, Baumer CA is available with capillary length from 1 to 15 meters for remote temperature indication.
12. Does Baumer CA temperature gauge require power supply?
No, it is a mechanical gas filled temperature gauge and does not require external power supply for operation.
13. Can Baumer CA be used for remote temperature measurement?
Yes, the capillary version allows the sensing bulb to be installed at the process point and the dial to be mounted at a remote location.
14. Which industries use Baumer CA gas filled temperature gauge?
It is used in chemical, pharmaceutical, food and beverage, refinery, oil and gas, power, boiler, utility and general process industries.
15. Why choose Baumer CA gas filled temperature gauge?
Baumer CA is selected for its wide temperature range, Class 1.0 accuracy, stainless steel construction, multiple mounting options, capillary availability and reliable performance in industrial temperature measurement applications.
