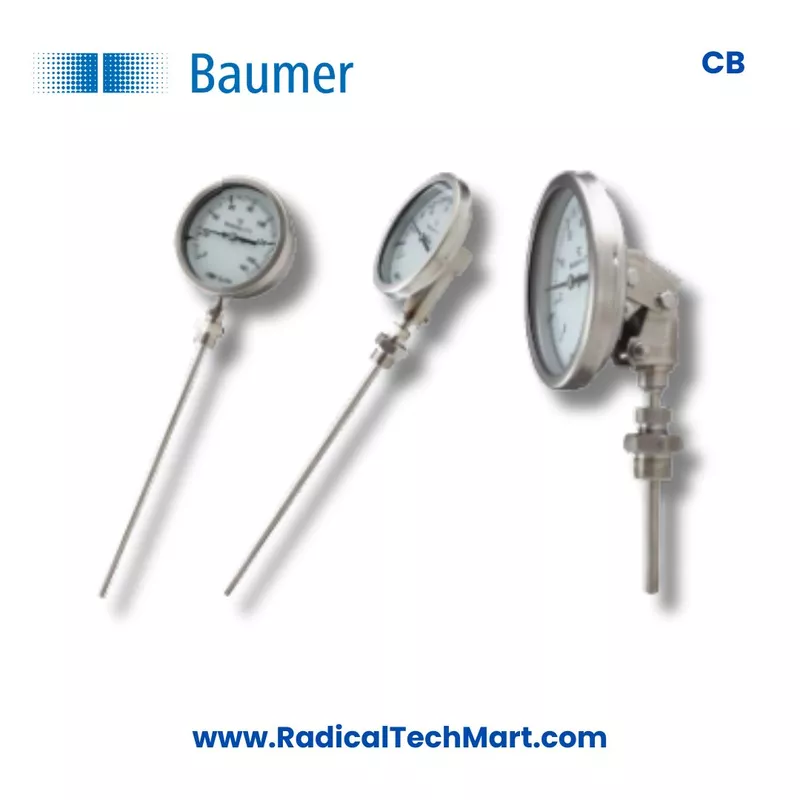

Baumer CB Bimetal Temperature Gauge

A. Product Overview

The Baumer CB bimetal temperature gauge is a mechanical temperature measuring instrument used for reliable local temperature monitoring in industrial applications. It is suitable for measuring process temperature from -80 to 500 degree C without requiring external power supply.

This model is available in nominal size options of 40, 50, 63, 80, 100, 125 and 150 mm, allowing selection based on visibility, installation space and application requirement. The gauge comes with an AISI 304 SS case as standard, with optional AISI 316 SS case for more demanding environments. It uses an AISI 316 SS sensing element, making it suitable for general industrial and corrosive service conditions.

The Baumer CB temperature gauge supports stem lengths from 30 to 600 mm and process connection options of 3/8 inch and 1/2 inch BSP and NPT. It is available with mounting options 2, 4, 8 and 14, giving flexibility for bottom, back and panel type installations depending on the site requirement.

Key specifications include:

Nominal size: 40, 50, 63, 80, 100, 125 and 150 mm
Temperature range: -80 to 500 degree C
Accuracy class: 1.0
Case material: AISI 304 SS with optional AISI 316 SS
Stem length: 30 to 600 mm
Sensing element material: AISI 316 SS
Process connection: 3/8 inch and 1/2 inch BSP and NPT
Mounting options: 2, 4, 8 and 14
Protection class: IP65 with optional IP66 and IP67
Reference standard: EN 13190

B. Working Principle

The Baumer CB bimetal temperature gauge works on the bimetallic expansion principle. Inside the stem, a bimetal sensing element is made from two different metals bonded together. These metals expand at different rates when exposed to temperature changes.

When the process temperature increases or decreases, the bimetal element twists or bends due to unequal thermal expansion. This movement is transferred to the pointer through a mechanical linkage. The pointer then moves across the dial and displays the process temperature directly.

Since it is a mechanical temperature gauge, it does not require electricity, battery power or external signal input. This makes it suitable for simple, continuous and reliable local temperature indication in industrial plants.

C. Why It Is Used

The Baumer CB bimetal temperature gauge is used to monitor process temperature directly at the installation point. It is useful where operators need quick visual temperature readings without depending on electronic instruments.

It is commonly used because it provides:

Reliable local temperature indication
No external power requirement
Wide temperature measurement range from -80 to 500 degree C
Stainless steel construction for industrial environments
AISI 316 SS sensing element for better durability
Multiple dial sizes for better visibility
Flexible stem length options from 30 to 600 mm
Multiple process connection choices in BSP and NPT
IP65 protection with optional IP66 and IP67
Compliance with EN 13190 standard

This gauge is suitable for temperature monitoring in pipelines, tanks, vessels, boilers, heat exchangers, HVAC systems, process equipment and utility lines.

D. Suitable Buyers

The Baumer CB bimetal temperature gauge is suitable for buyers who need durable, mechanical and maintenance-friendly temperature measurement instruments.

Suitable buyers include:

Instrumentation engineers looking for industrial temperature gauges
Maintenance teams replacing existing bimetal thermometers
Purchase departments sourcing Baumer temperature gauges
OEM machine manufacturers requiring local temperature indication
Panel builders and system integrators working on process systems
Boiler and heat exchanger manufacturers
Chemical and pharmaceutical plants
Food and beverage processing units
HVAC and utility system contractors
Water treatment and process plant operators
Industrial distributors and resellers

FAQ

1. What is the Baumer CB bimetal temperature gauge used for?

The Baumer CB bimetal temperature gauge is used for local temperature measurement in industrial process lines, tanks, vessels, machinery and utility systems.

2. What is the temperature range of the Baumer CB temperature gauge?

The Baumer CB bimetal temperature gauge is suitable for temperature ranges from -80 to 500 degree C, depending on the selected model configuration.

3. What dial sizes are available in Baumer CB bimetal temperature gauge?

It is available in nominal sizes of 40, 50, 63, 80, 100, 125 and 150 mm.

4. What is the accuracy class of the Baumer CB temperature gauge?

The Baumer CB bimetal temperature gauge has an accuracy class of 1.0.

5. What is the case material of the Baumer CB gauge?

The standard case material is AISI 304 SS. An AISI 316 SS case is available as an option for more demanding environments.

6. What is the sensing element material?

The sensing element is made from AISI 316 SS, which provides good durability for industrial temperature measurement applications.

7. What process connections are available?

The Baumer CB bimetal temperature gauge is available with 3/8 inch and 1/2 inch BSP and NPT process connection options.

8. What stem length options are available?

The stem length is available from 30 to 600 mm, depending on the application and installation requirement.

9. What protection class does the Baumer CB temperature gauge offer?

The standard protection class is IP65, with optional IP66 and IP67 protection for applications requiring higher ingress protection.

10. Does the Baumer CB bimetal temperature gauge require power supply?

No. It is a mechanical temperature gauge and does not require any external power supply.

11. Which standard does the Baumer CB temperature gauge follow?

The Baumer CB bimetal temperature gauge follows the EN 13190 reference standard.

12. Where can Baumer CB bimetal temperature gauge be installed?

It can be installed on pipelines, process tanks, boilers, heat exchangers, HVAC systems, machinery, utility systems and industrial process equipment.
