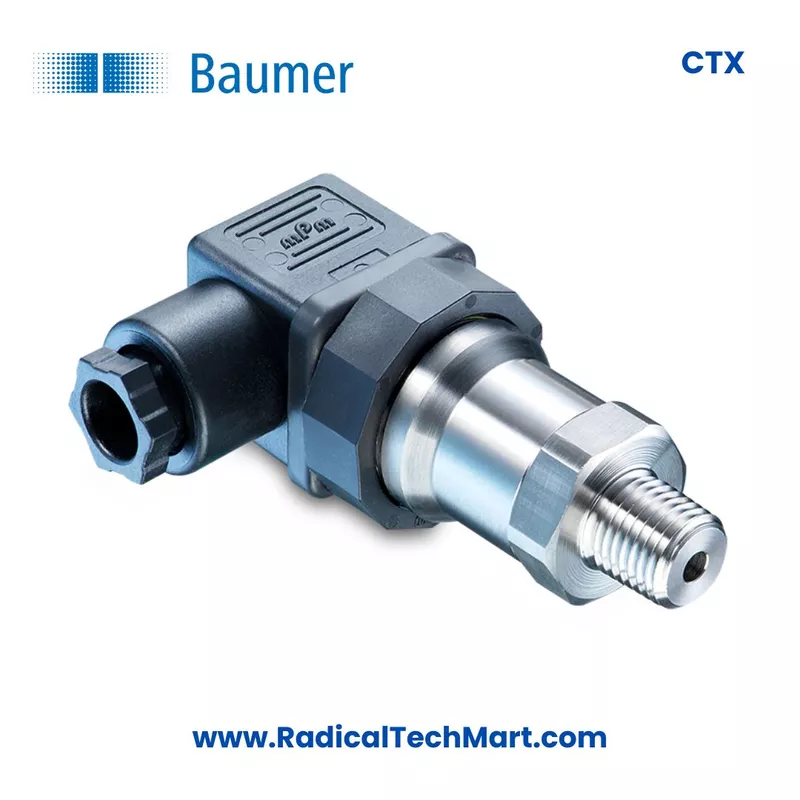

Baumer CTX series
Customize
Share :
A. Product Overview

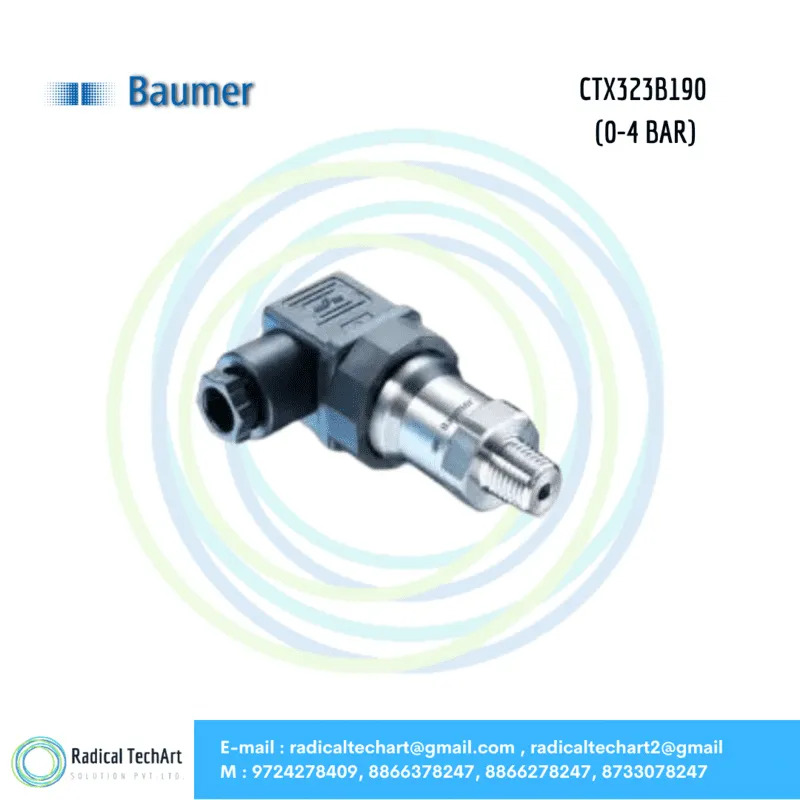

Baumer CTX pressure sensor is a compact pressure transmitter used for accurate pressure measurement in industrial applications. It is designed for relative pressure measurement and vacuum measurement, making it suitable for air, gas, water, hydraulic and process media applications.
The sensor is built with a robust ceramic measuring cell and stainless steel housing for stable performance in demanding environments. It supports common industrial output signals such as 4 to 20 mA and voltage output options, depending on the selected model configuration. The compact design makes it easy to install in machines, utility lines, pneumatic systems, compressor systems, pump systems and automation panels.
In our store, Baumer CTX pressure sensor is available in selected pressure ranges including 1 to 60 bar, minus 1 to 39 bar and 100 to 200 bar. These range options help users choose the correct model based on their process pressure, vacuum requirement or high-pressure application.
B. Working Principle
Baumer CTX pressure sensor works by converting applied process pressure into an electrical output signal. When pressure is applied to the sensor diaphragm, the ceramic measuring cell detects the pressure change. This pressure value is then converted into a proportional electrical signal such as 4 to 20 mA or voltage output.
The output signal can be connected to PLCs, controllers, indicators, data loggers, SCADA systems or automation panels. For example, in a 4 to 20 mA output model, the lower pressure value corresponds to the lower signal value and the maximum pressure value corresponds to the higher signal value. This allows the control system to continuously monitor pressure and take action when pressure goes above or below the required limit.
C. Why It Is Used
Baumer CTX pressure sensor is used to monitor and control pressure in industrial systems where accurate pressure feedback is required. It helps operators and automation systems track pressure conditions in real time, prevent unsafe pressure levels, improve process control and protect equipment from damage.
It is commonly used where mechanical pressure gauges are not enough and an electrical signal is required for automation. The CTX sensor can send pressure data directly to PLCs, controllers and monitoring systems, making it useful for automatic control, alarms, interlocks, data recording and remote pressure monitoring.
This sensor is preferred because of its compact construction, ceramic measuring cell, stainless steel body, industrial output signals and availability in multiple pressure ranges for low, vacuum and high-pressure applications.
D. Suitable Buyers
Baumer CTX pressure sensor is suitable for machine manufacturers, OEMs, automation system integrators, panel builders, compressor manufacturers, pump manufacturers, hydraulic machine users, utility maintenance teams and industrial process plants.
It is also useful for buyers from manufacturing, pharma, food and beverage, packaging, HVAC, water treatment, pneumatic automation, hydraulic equipment and general engineering industries. Purchase teams, maintenance engineers, instrumentation engineers, project engineers and plant engineers can use this product for reliable pressure measurement and system monitoring.
FAQ
1. What is Baumer CTX pressure sensor used for?
Baumer CTX pressure sensor is used for measuring relative pressure and vacuum in industrial applications. It converts pressure into an electrical signal for monitoring, control and automation systems.
2. Which pressure ranges are available in your store?
Our store contains Baumer CTX pressure sensor ranges from 1 to 60 bar, minus 1 to 39 bar and 100 to 200 bar.
3. Can Baumer CTX pressure sensor be used for air and gas applications?
Yes, Baumer CTX pressure sensor is suitable for air and gas pressure measurement in industrial applications, pneumatic systems, compressor lines and process monitoring systems.
4. Can it be used for vacuum measurement?
Yes, selected Baumer CTX models are suitable for relative pressure and vacuum measurement, including the minus 1 to 39 bar range option.
5. What output signal is available in Baumer CTX pressure sensor?
Baumer CTX pressure sensor is available with industrial output signal options such as 4 to 20 mA and voltage output, depending on the selected configuration.
6. What is the benefit of 4 to 20 mA output?
The 4 to 20 mA signal is widely used in industrial automation because it is reliable for long-distance signal transmission and can be easily connected to PLCs, controllers, indicators and SCADA systems.
7. What type of sensing element is used in Baumer CTX?
Baumer CTX uses a robust ceramic measuring cell for pressure detection. This helps provide stable pressure measurement in industrial applications.
8. What is the housing material of Baumer CTX pressure sensor?
The Baumer CTX pressure sensor has stainless steel housing, making it suitable for industrial environments.
9. Where can Baumer CTX pressure sensor be installed?
It can be installed in compressor systems, pneumatic lines, hydraulic machines, pumps, process lines, automation panels, utility systems and industrial equipment.
10. Who should buy Baumer CTX pressure sensor?
It is suitable for OEMs, machine builders, maintenance teams, instrumentation engineers, automation system integrators, panel builders, project contractors and industrial buyers who need reliable pressure measurement with electrical output.
