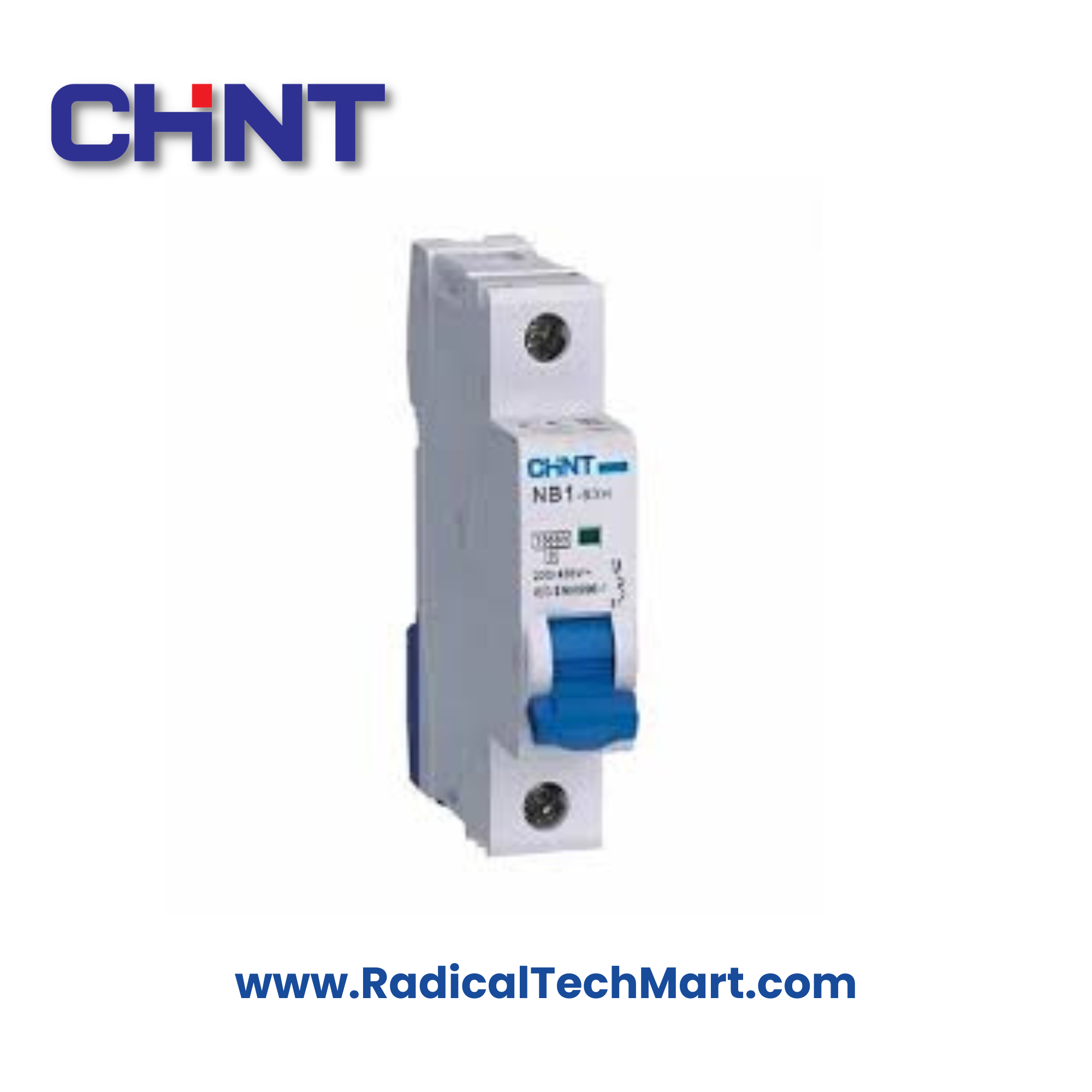

CHINT NB1-63H 1 Pole C Curve MCB

Product Summary:

The CHINT NB1-63H 1 Pole C Curve Miniature Circuit Breaker is engineered for high performance in protecting single-phase electrical circuits. With a compact build, high breaking capacity, and compliance with IEC/EN standards, it’s ideal for residential, commercial, and light industrial use

Key Features:

• Compact single-pole design for space-saving installation

• C Curve tripping characteristic for standard load protection

• Rated breaking capacity up to 10kA

• Rated current: Up to 63A

• Voltage: 230V~

• Conforms to IEC/EN 60898-1

• Quick and easy DIN rail mounting

• Flame-retardant housing for enhanced safety



Applications:

• Residential power distribution boards

• Commercial building electrical panels

• Industrial control panels

• Circuit protection in HVAC, lighting, and automation systems



Product Benefits:

• Enhances circuit safety by preventing overload and short circuit damage

• Saves panel space with its compact design

• Supports fast maintenance and replacement

• Reliable performance with long electrical life

• Compatible with a wide range of electrical loads



FAQs:

Q1: What does the 'C Curve' in the CHINT NB1-63H MCB mean?
A: The C Curve provides moderate sensitivity, suitable for lighting and motor loads with normal inrush current.

Q2: Can I use this MCB in residential applications?
A: Yes, it is widely used in residential, commercial, and small industrial power distribution systems.

Q3: What is the breaking capacity of this MCB?
A: It offers a high breaking capacity of up to 10kA, providing robust short-circuit protection.
